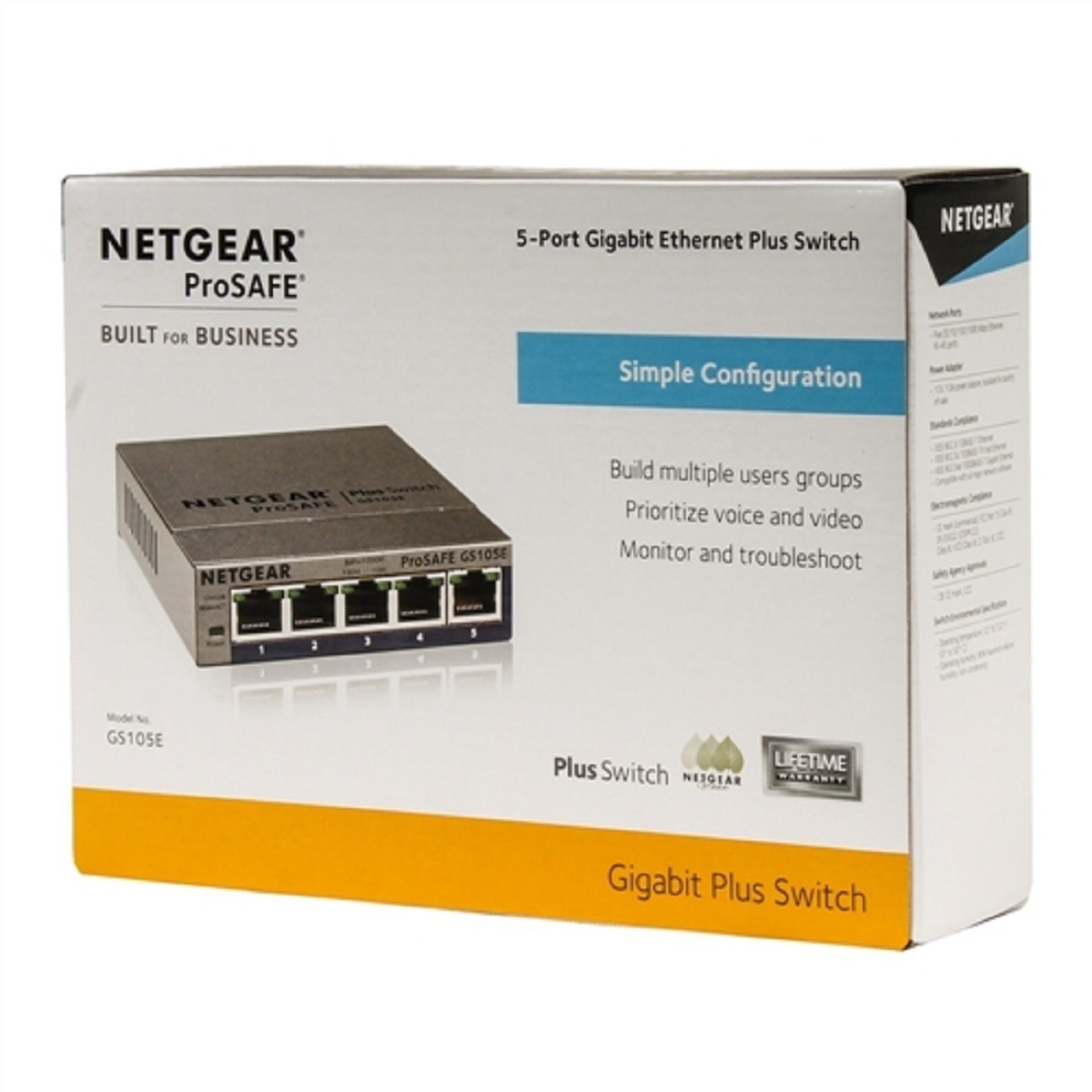

Netgear ProSafe GS105E-200NAS 5‑Port Gigabit Plus Ethernet Switch, QoS, VLAN
Upgrade your network with theNetgear ProSafe GS105E-200NAS, a 5-port Gigabit Plus switch designed to offer advanced network control with plug‑and‑play simplicity. Ideal for small businesses, home offices, or multimedia setups, this switch supports traffic priority via QoS, VLAN segmentation, and loop detection — all wrapped in a durable, fanless metal chassis for silent and reliable performance.
All proceeds from sales on our site fund our Apprenticeship and Employment Programs, supporting aspiring IT professionals as they gain real-world experience and build their careers. Every purchase helps create opportunities for the next generation of tech experts.
✅ Key Features
- 5 Gigabit RJ‑45 Ports (10/100/1000 Mbps)– Connect multiple devices with full-speed network access.
- Easy‑Smart Management– Configure with web GUI or Netgear Utility tool for VLAN, QoS, and link aggregation.
- VLAN Support– Create segmented networks for security or traffic isolation.
- QoS (Quality of Service)– Prioritize voice and video traffic to ensure smooth VoIP or streaming performance.
- IGMP Snooping (v1/v2/v3)– Efficient multicast support to optimize traffic for applications like IP cameras or video distribution.
- Cable Diagnostics & Loop Detection– Troubleshoot cabling issues quickly with built‑in cable test and storm control.
- Energy Efficient Ethernet (IEEE 802.3az)– Reduces power when ports are idle or connected to short cables.
- Silent, Rugged Build– Fanless, metal chassis for quiet, durable operation.
- Jumbo Frames– Supports up to 9 KB frames for data-intensive applications.
- Security Protections– Includes DoS prevention and broadcast storm control for robust network defense.
⚙️ Technical Specifications
- Model / SKU:GS105E‑200NAS
- Ports:5 × RJ‑45, 10/100/1000 Mbps
- Switching Capacity:10 Gb/s non‑blocking
- MAC Address Table:~8 K entries
- Buffer Memory:128 KB
- Power Input:12V DC adapter, ~1.0A
- Power Consumption:~2.6 W typical
- Dimensions:94 × 104 × 28 mm (3.7 × 4.1 × 1.1 in)
- Weight:0.66 lb / 0.3 kg
- Operating Temp:0–50°C (32–122°F)
- Certifications:UL, FCC, CE, RoHS (per spec)
- Warranty:Limited Lifetime (switch), 2 years for power adapter (per BarcodesInc listing)
Technical Specifications — Netgear GS105E‑200NAS
Specification
Details
Model / Part
GS105E‑200NAS
Product Type
ProSafe Plus / “Easy‑Smart” Switch
Ports
5 × RJ‑45 Gigabit Ethernet (10/100/1000)
Switching Capacity
10 Gbps non‑blocking (total switching bandwidth)
MAC Address Table Size
8K entries
Buffer Memory
~0.4 MB / 400 KB packet buffer
Jumbo Frame Support
Yes, up to 9,000 bytes (9 KB)
QoS / Traffic Prioritization
Yes — 802.1p, DSCP, rate limiting, weighted round-robin (WRR)
VLAN Support
Port‑based VLAN and 802.1Q (up to 64 VLANs)
IGMP Snooping
v1 / v2 / v3 for multicast optimization
Port Mirroring
Yes — for diagnostics & monitoring
Storm Control / Loop Prevention
Broadcast storm control, loop detection, DoS prevention
Energy Efficiency
Supports IEEE 802.3az (Energy Efficient Ethernet)
Auto MDI/MDI‑X
Yes — no crossover cable needed
Network Standards Supported
IEEE 802.3, 802.3i, 802.3u, 802.3ab, 802.3x, 802.1p, 802.1Q
Power Input
12 V, 1.0 A DC power adapter
Power Consumption
Typical: ~5.6 W
Operating Temperature
0 °C to 50 °C (32–122 °F)
Operating Humidity
0–90% non‑condensing
Storage Temperature
–20 °C to 70 °C
Dimensions (W × D × H)
~94 × 101 × 26 mm (3.7 × 4.0 × 1.02 in)
Weight
~270 g / 0.6 lb
Housing
Metal chassis, fanless (silent operation)
Certifications
UL, CE, FCC, RoHS, etc.
Diagnostics & Utility
Cable test, Port Mirroring, Web GUI, ProSafe Utility Tool
🛠️ Ideal Uses
- Small Office / Home Office (SOHO) for reliable wired connections
- Network segmentation with VLANs for employees, guests, or VLAN-based traffic
- Multimedia environments (VoIP, video) that benefit from QoS
- Network monitoring using port mirroring
- Low-noise environments thanks to the fanless metal design
