Netgear GS110TP V2 PoE Switch
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

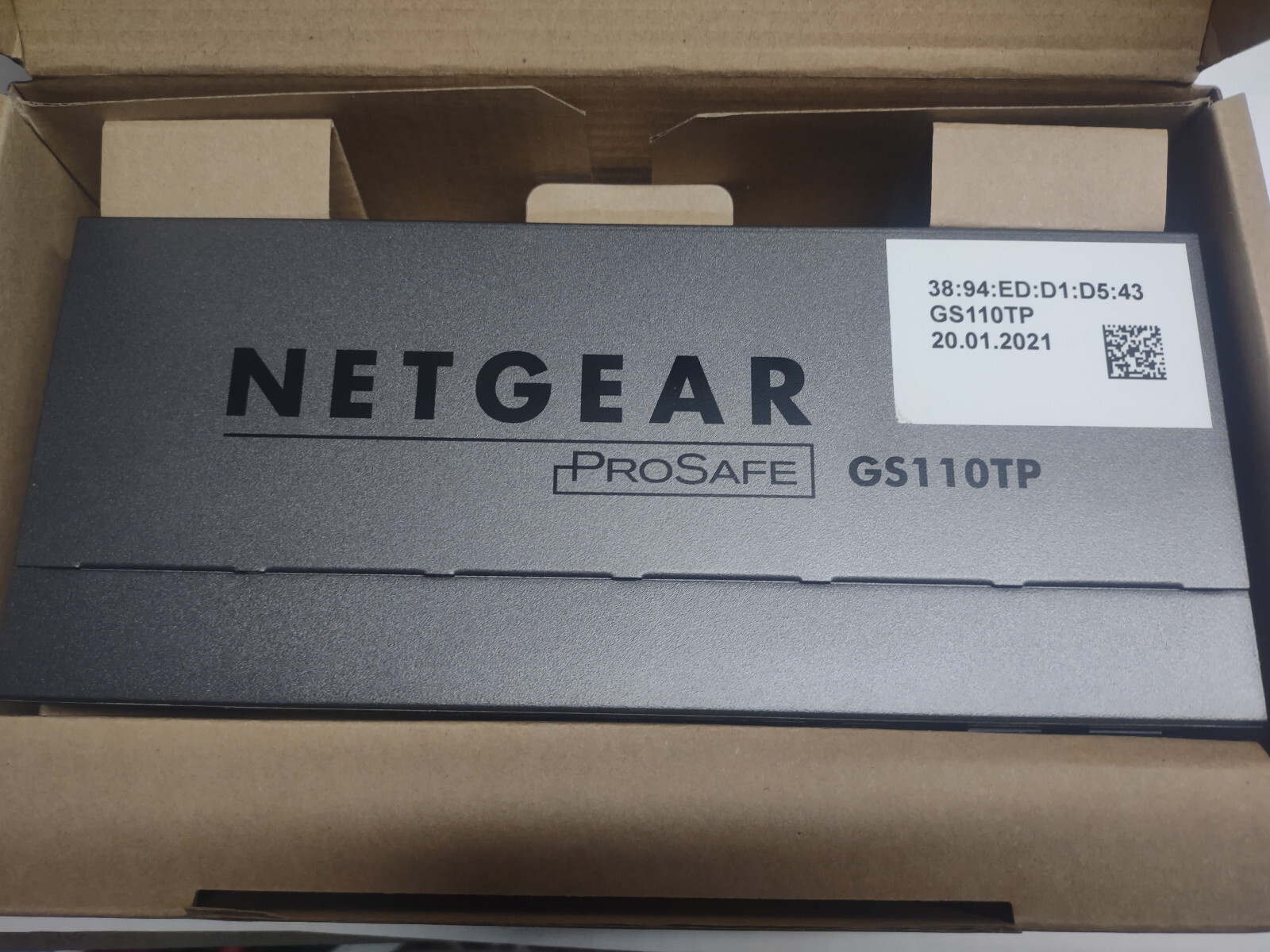

Netgear GS110TP V2 PoE Switch
Price: AT $73.43
Unused 8 Port PoE Smart Managed Switch Netgear GS110TPv28pcs RJ45 Port 1Gbps
2pcs SFP Port 2Gbps
Perfect for powering security cameras without an additional power supply
Note:There are different versions of the GS110TP. This is version 2.
The difference to version 3 is the max PoE power.
Version 2 can supply 15.4W/port
Version 3 can supply 30W/portTechnical Specifications
• Network Protocol and Standards Compatibility
- IEEE 802.3i 10BASE-T
- IEEE 802.3u 100BASE-TX
- IEEE 802.3ab 1000BASE-T
- IEEE 802.3z 1000BASE-X
- IEEE 802.3x full duplex flow control
- IEEE 802.3af (DTE Power Via MDI)
• Power Supply
- Power consumption: 59.3W maximum
• Network Ports
- Eight (8) 10/100/1000 Mbps Auto -sensing + 2 Gigabit SFP uplinks
• Physical Specifications
- Dimensions: (W x D x H): 236 x 101.6 x 27 mm (9.3 x 4 x 1.07 in)
- Weight: 0.7kg (1.55lb)
• Performance Specifications
- Forwarding modes: Store-and-forward
- Bandwidth: 20Gbps full duplex
- Network latency: Less than 4 μs for 64-byte frames in store-and-forward mode for 1000 Mbps to 1000 Mbps transmission
- Buffer memory: 512KB embedded memory per unit
- Address database size: 4k media access control (MAC) addresses via system
- Mean time between failures (MTBF):157,004 hours (~18 years)
- Acoustic noise: 0 dB
• Electromagnetic Emissions
– CE mark, commercial
– FCC Part 15 Class B
- VCCI Class B
- C-Tick
• Environmental Specifications
– Operating temperature: 32° to 122°F (0° to 50°C)
- Storage temperature: -4° to 158°F (-20° to 70°C)
- Operating humidity: 90% maximum relative humidity, non-condensing
- Storage humidity: 95% maximum relative humidity, non-condensing
- Operating altitude: 10,000 ft (3,000m) maximum
- Storage altitude: 10,000 ft (3,000m) maximum
• Status LEDs
- Via RJ45 port: Link/activity, speed, PoE status
- Via SFP port: Link/speed
- Per device: Power, PoE Max
