Neat. Frame.

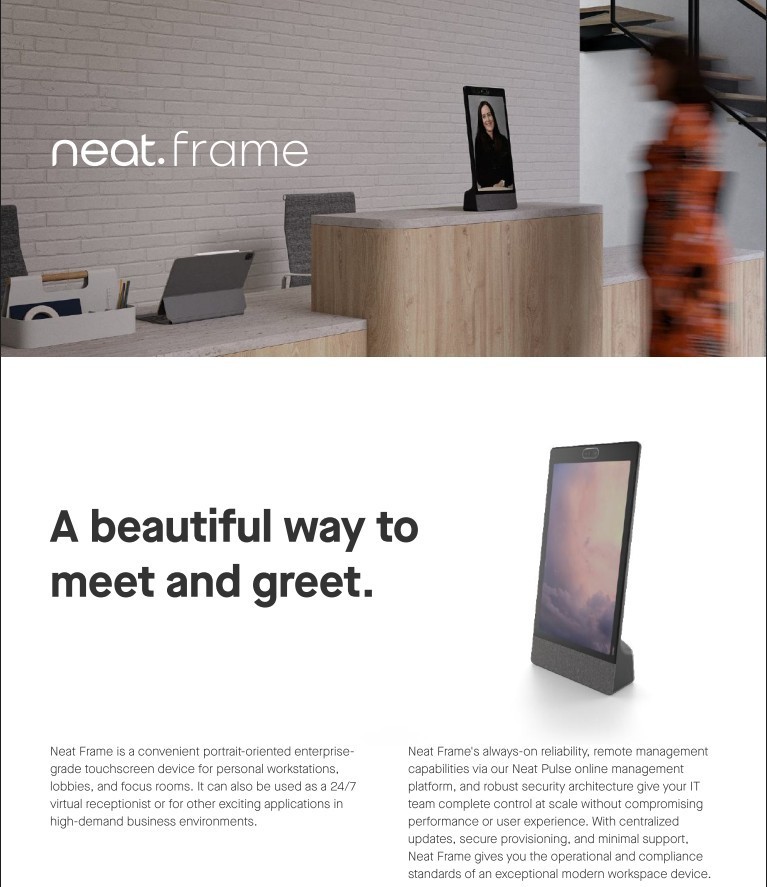

Neat Frame is a convenient portrait-oriented enterprise-grade touchscreen device for personal workstations, lobbies, and focus rooms.
It can also be used as a 24/7 virtual receptionist or for other exciting applications in high-demand business environments.
Our Neat Pulse online management platform enables your IT teams to remotely manage Neat Frame from anywhere while assured of its always-on reliability and robust security architecture.
Neat Frame packs powerful technology into an all-in-one compact and convenient meeting device that enables you to free up your computer for other tasks.
(Plus, you can use it as a desk phone with a Zoom Phone account.)
General
15,6-inch capacitive multi-touch LED screen
450 NITS Screen
Resolution 1080x1920, 60Hz
9:16 aspect ratio
Anti-glare and anti-fingerprint coating
Camera LED
System LED
Ambient light sensor
Depth sensor (time-of-flight VGA 60° FOV)
Temperature sensor
Humidity sensor
Air Quality sensor
Tripod mount (1/4-20 UNC threads)
Privacy shutter
Audio
Two-way loudspeaker system with minimal distortion
1 tracking mic
3 beamforming microphones angled in an end-fire array
Support for wired and wireless headphones
Hardware accelerated audio processing
Echo cancellation
Noise suppression
Automatic gain control
Dereverberation
Video
4x digital zoom
50MP capture resolution
113° horizontal field of view
Automatic people framing
Hardware accelerated video encode and decode
Distortion correction
Noise reduction
Chromatic aberration correction
Automatic white balance and color correction
People video resolution: Up to 1080p / 30
Content video resolution: 720p / 60, 1080p / 30
Electrical and environmental requirements
100-240V ~ 50/60Hz 2.5A
Ambient operating temperature: 32° to 95° F (0° - 35° C)
Storage temperature: -4° to 140° F (-20° to 60° C)
Relative humidity: 10% to 90%
Network standby: 8W
Built-in power supply
Power consumption
Idle: 10W
Idle screen off: 3W
In call: 14-19W
Networking and ports
WiFi
Bluetooth
AC Power (internal power supply)
USB-C
4-pin mini-jack
Size and weight
Width: 8,8 inches (222,5 mm)
Height: 17,5 inches (445 mm)
Depth: 4,4 inches (111,2 mm)
Weight: 7,6 pounds (3,45 kg)
In the boxNeat Frame
Power cord (9.8 feet / 3 meters)
What you need
Internet connection
License for Zoom Rooms (*)
Box weights and dimensions
Neat Frame
13.5 pounds / 6.1 kg
