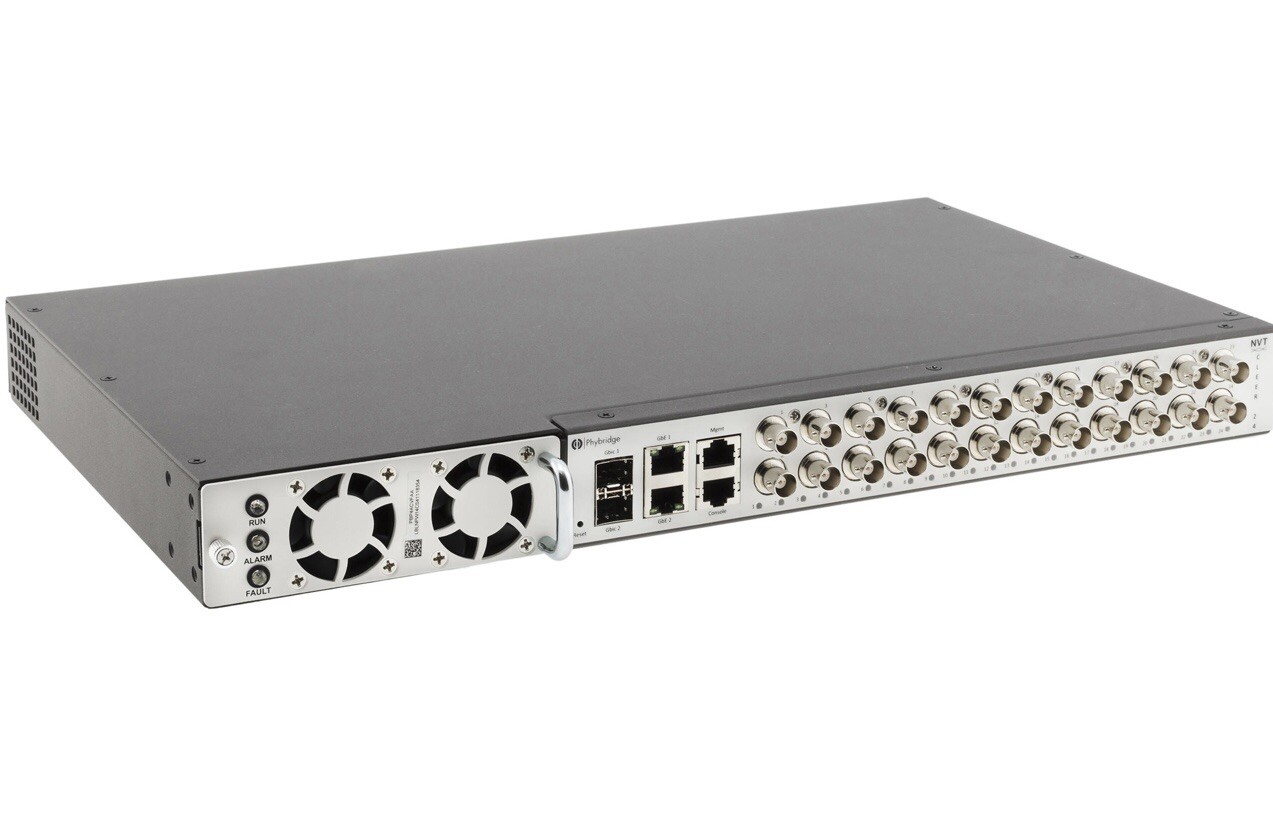

NVT Phybridge NV-CLR-024 Cleer 24 Port Managed Switch PoE Ethernet, Coax.
This item is new in open packaging. The unit itself is still sealed in the original manufacturer’s plastic packaging.
CLEER24 Technical Specifications
ModelCLEER24Part NumberNV-CLR-024Dimensions19 inches x 1U without rack ears:
- 1.75” x 17.13” x 9.92” (HxWxD)
- 4.45cm x 43.5cm x 25.2cm (HxWxD)
Weight7.94 lbs (3.6 kg)MountingStandalone, rack or shelf-mountable; 2 brackets included for installationProcessorBroadcom BCM56018 switch processor, 266MHzMemory32MB FLASH, 64MB DDR SDRAMInterface: Ethernet Uplink (Trunk IP)Maximum 2 uplinks, each 1Gb/s (full duplex), either:
- 2 mini-GBIC ports: 1000 Base-TX/SX/LX/EX/ZX/LHX (determined by SFP, transceiver module installed), Ethernet IEEE 802.3z, fiber optic cable; or
- 2 RJ45 ports: 10/100/1000 Base-T auto-sensing, independent speed selection, Ethernet IEEE 802.3, CAT5e/6 copper cable
Mean Time Before Failure (MTBF)20+ YearsInterface: Downlink (PoE and IP to Adapter)24 x BNC Jacks
Speed: 10/100Mbps (full duplex)
PoE Power: 30 Watts Maximum Maximum Distance:
- 3,500ft (1,067m) over RG59 Coax Cable
- 6,000ft (1,830m) over RG6 and RG59 Coax Cable 24 x Status LEDs:
- Configuration Options: Link Activity / Link / Off
Management1 LAN port (MGMT): RJ45, 10/100 Base-T auto-sensing, IEEE 802.3
1 UART console port: RJ45 (RJ45 to DB9 cable included)
Power SupplyHot-Swappable Power Supply Unit
Auto-sensing 100-240VAC, 50/60 Hz
Power Output: 500W max at 110VAC, 1000W max at220VACPower Consumption16.5WPower Injection (PoE)DC voltage: 48VDC to 56VDC
Endpoint devices must be compliant with IEEE 802.3af/at
PowerWISE® Power Sharing2 male connectors (rear)
DC IN and DC OUT: 48VDC to 56VDCOperating Temperature14°F to 122°F (-10°C to 50°C)Humidity10% to 95% (non-condensing) at 95°F (35°C)CLEER Layer 2 CapabilitiesLayer 2 Features· High performance Store and Forward architecture, runt/CRC filtering that eliminates erroneous packets to optimize the network bandwidth
· Supports VLAN
– IEEE 802.1Q tagged VLAN
· Supports Spanning Tree Protocol
– STP (Spanning Tree Protocol)
– RSTP (Rapid Spanning Tree Protocol)
· Supports Link Aggregation
– Ether-channel (static trunk)
· Jumbo Frame
– Max 5k size
MulticastSupports IGMP snooping v2 and v3Security· Authentication
– Built-in RADIUS client to co-operate with the RADIUS servers, when installed.
– RADIUS / TACACS+ login user access authentication, when installed.
· Access Control List
· MAC Security
– Static MAC
· SSH / SSL, when installed
Management
· IPv4 stack management
· Switch management interface
– Web switch management
– Telnet command line interface
– SNMP v1, v2c
– SSH / SSL secure access, when installed.
· User privilege levels control, with TACACS only.
· Built-in Trivial File Transfer Protocol (TFTP) client
· System maintenance
– Firmware upload/download via HTTP / TFTP
– Configuration upload/download through Web interface
– Hardware reset button for system reboot or reset to factory default
· SNTP Network Time Protocol
· Link Layer Discovery Protocol (LLDP)
· SNMP trap for interface linkup and linkdown notification
· Event message logging to remote Syslog server
CLEER24 Compliance and Agency ApprovalEMCEmissions: FCC Part 15, ICES-003, EN 55032:2012, EN 50121-4:2015
Class A
Immunity: EN 55024:2010, EN 50121-4:2015SafetyUL 60950-1 2nd Ed 2014-10-14, CAN/CSA C22.2 No. 60950-1-07 2nd Ed 2014-10
IEC 60950-1:2005+A1+A2, EN Directive 2011/65
