Title NF-8209 PoE Tester Network Cable Tester Cat5 Cat6 CAT6a Lan Test Network Tools
PRODUCT DESCRIPTION
Please Note:
If you need to return the item for some reasons,please contact us via message at the first time,we will try our best to help you and arrange the return for you,please do not return the item without permission,thank you!!
KOLSOL NF-8209 LCD Display Measure Length Lan Cable POE Wire Checker Cat5 Cat6 Lan Test Network Tool Scan Cable Wiremap Tester
NF-8209 is a new generation to offer AC filter and analog signaling all in one network toner and probe. It has three modes for options to track cable like AC filter mode, analog mode and PoE mode. That means it’s equipped with the most powerful cable location technologies for any work environment. Also, it includes cable length measurement,cable faults testing,PoE testing, hub blink and NCV function,all these makes it a must-tool for cabling engineers.
【Digital cable scanning】NF-8209 is a new generation to offer AC filter and analog signaling all in one network toner and probe. It has three modes for options to track cable like AC filter mode, analog mode and PoE mode.
【Fault distance location】Measure cable length and locate fault distance accurately for lan cable. the range is 200m.That means it's equipped with the most powerful cable location technologies for any work environment.
【Multi Function】It includes cable length measurement , cable faults testing, PoE testing, hub blink and NCV function, all these makes it a must-tool for cabling engineers.
【PoE information testing & Hub blink】identify which pins are providing power and detect how much voltage, identify which the type of PSE (at/af standard).Locate network port by the flashing port light on Hub / Switch. Available to 10M/100M Hub/ switch.
【Cable continuity testing & NCV】Test physical status for STP, UTP lan cable. Detect AC voltage presence (50V-1000V).
Fault distance location and length measurement
Digital Cable Scan
PoE Testing
Port Flash
Hub blink for locating network port by the flashing port light on a server/switch/hub/router port.Another easy way to locate lan cable by eyes.
The device can tell you the connected switch's information, such as its speed (10M/100M/1000M), transmitting modes (FDX: full duplex / HDX: half duplex), Protocol (Auto-Nego / Non-Auto-Nego).
Continuity Testing
Test open, short, cross,split pairs.
Cable types:Cat5e,Cat6,Cat6a, Cat7.(UTP & STP).
NCV Induction Pen
Receiver can also be used as voltage detector.
Accurate electricity measurement, Non-contact and safer to use.
Specification:
Transmitter
Wiremap
Cable type
CAT5e, CAT6, CAT6a (STP & UTP)
Test with switch directly
Yes
Max range
600m
Length
Cable type
CAT5e, CAT6, CAT6a (STP & UTP)
Test range
2.5m~120m
Accuracy
±1.6m
Breakage location
Yes
Scan
Cable type
CAT5e, CAT6, CAT6a (STP & UTP)
Max. signal voltage
8Vp-p
Frequency
130KHz
AC filter
Yes
Max range
600m
POE
Test range
DC 5~60V standard / non-standard PoE switch
Voltage display
Yes
PSE type
IEEE 802.3af/at
LCD display
128*64 Dot-matrix with backlight
Power supply
AAA*3(Not included)
Low battary warning
2.7V
Auto-off time
Max working current
<150mA
Receiver
Sentivity adjustable
Yes
AC Voltage detecting
Yes
Lamp
Yes
Battary type
9V*1
Low battary warning
6± 0.5V
Max working current
<100mA
Remote
Wiremap Port
RJ45
Is_customized:YesBrand Name : KOLSOLModel Number : NF-8209Place of Origin : Shenzhen.ChinaMain Function : Detecting PoE voltage, PSE standards Power supply modes, Scan & Test lan cablesTest Type : CAT5e, CAT6, CAT6a (STP & UTP)Other Function : NCV & Lamp
Warranty : 1 Year
Please note ：Batteries are not included in the package

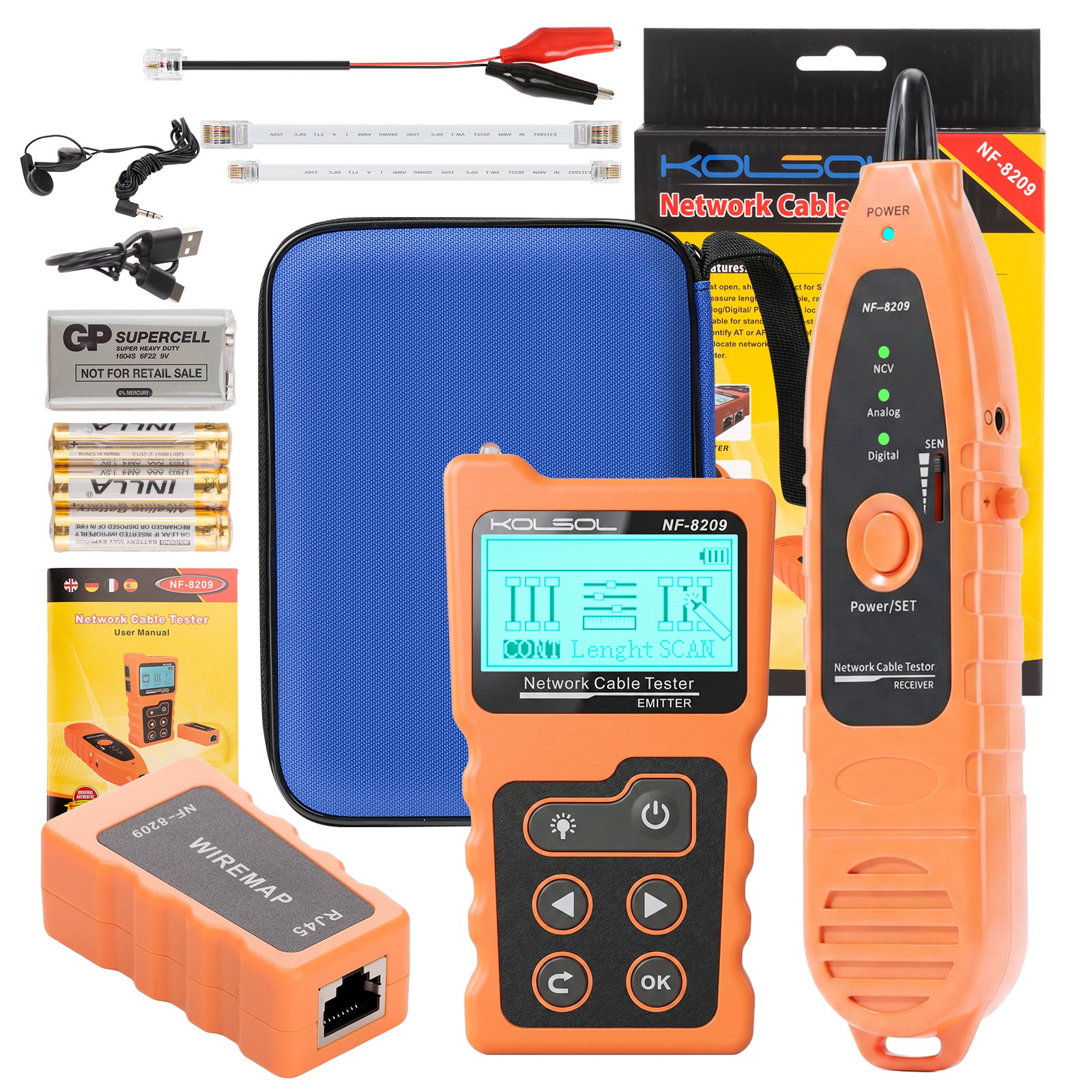

Package includes:
1pc x emitter1pc x receiver1pc x RJ45 wiremap1pc x type-c cable1pc x earphone2pcs x network cables1pc x RJ45 to alligator clips
3pcs x 1.5V batteries
1pc x 9V battery1pc x bag
1pc x manual
