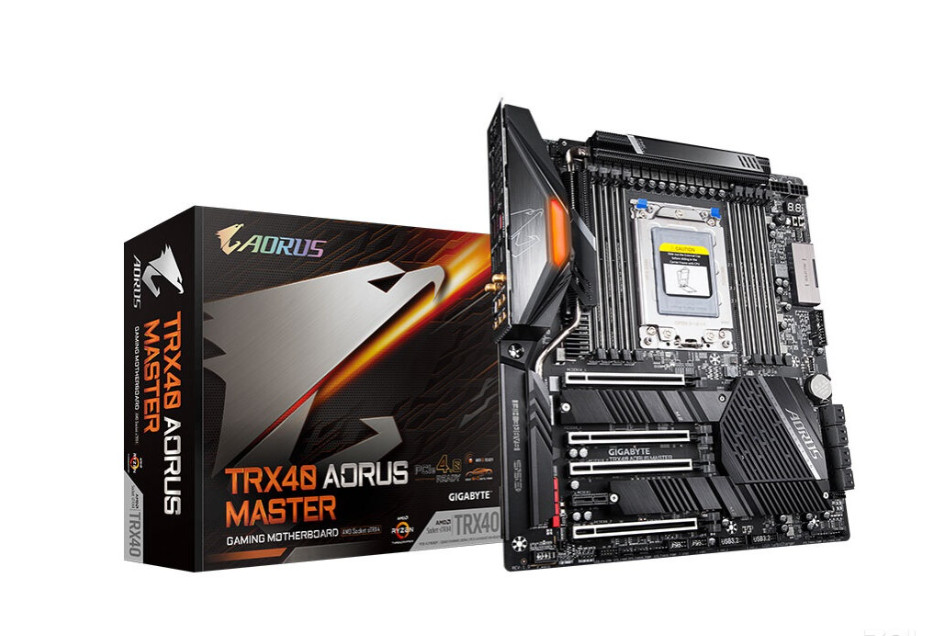

Product Description TRX40 AORUS MASTER (English Spec for Listing)
Model: TRX40 AORUS MASTER (Rev.1.1) Form Factor: E-ATX, 30.5cm × 26.9cm Socket: AMD sTRX4 Chipset: AMD TRX40 CPU Support: 3rd Gen AMD Ryzen™ Threadripper™ Series Desktop Processors
Check GIGABYTE official site for full CPU support list
Power Delivery
- Direct 16+3 Phases Infineon Digital VRM
- 70A Power Stage
- Power Connectors: 24-pin ATX, 2×8-pin CPU 12V
- Fins-Array Heatsink + Extended Heatpipe + NanoCarbon Baseplate
Memory
- 8 × DDR4 DIMM slots, Max 256GB (32GB per DIMM)
- Quad Channel Memory Architecture
- ECC & Non-ECC Unbuffered DDR4
- DDR4: 3200/2933/2667/2400/2133 MHz (XMP OC supported)
Check GIGABYTE Memory QVL for validated RAM list
Expansion Slots
- 4 × PCIe 4.0 x16 SlotsOperation modes: x16/x16, x16/x8/x16, x16/x8/x16/x8
- Multi-GPU: NVIDIA® Quad-GPU SLI™, AMD Quad-GPU CrossFireX™
Storage
- 3 × M.2 Socket3 M-key (2280), PCIe4.0 x4, with Thermal GuardsSupport PCIe NVMe & SATA SSD
- 8 × SATA 6Gb/s ports
- RAID 0, RAID1, RAID10 support
Networking
- Aquantia® 5GbE LAN + Intel® 1Gbps LAN, with cFosSpeed
- Intel® Wi-Fi 6 AX200 (802.11ax 2T2R) + Bluetooth 5
Audio
- Realtek ALC1220-VB + ESS SABRE 9218 DAC
- 130dB SNR AMP-UP Audio, WIMA audio capacitors
- DTS:X® Ultra, 7.1-channel HD Audio, S/PDIF optical out
USB
Rear I/O Panel
- 5 × USB3.2 Gen2 Type-A
- 2 × USB2.0 Type-A
Internal Headers
- 1 × USB3.2 Gen2 Type-C front panel header
- 2 × USB3.2 Gen1 headers
- 2 × USB2.0 headers
Fan & Thermal
- Smart Fan 5, multiple thermal sensors, water flow monitoring
- Hybrid fan headers with FAN STOP
- Fins-Array VRM heatsink, M.2 Thermal Guards, NanoCarbon backplate
RGB & Special Features
- RGB FUSION 2.0
- 2 × Addressable RGB headers + 2 × Standard RGB headers
- DualBIOS™ (2×128Mbit flash)
- Q-Flash Plus, Q-Flash
- Onboard Power / Reset Buttons, BIOS Switches
- TPM header, Noise detection header, Temperature sensor headers
- Pre-installed I/O Shield
Rear I/O Panel
- Q-Flash Plus Button
- Wi-Fi Antenna Connectors (2)
- Aquantia 5GbE RJ45 LAN
- Intel GbE RJ45 LAN
- USB3.2 Gen2 Type-A ×5
- USB2.0 Type-A ×2
- Audio Jacks + S/PDIF Optical Out
