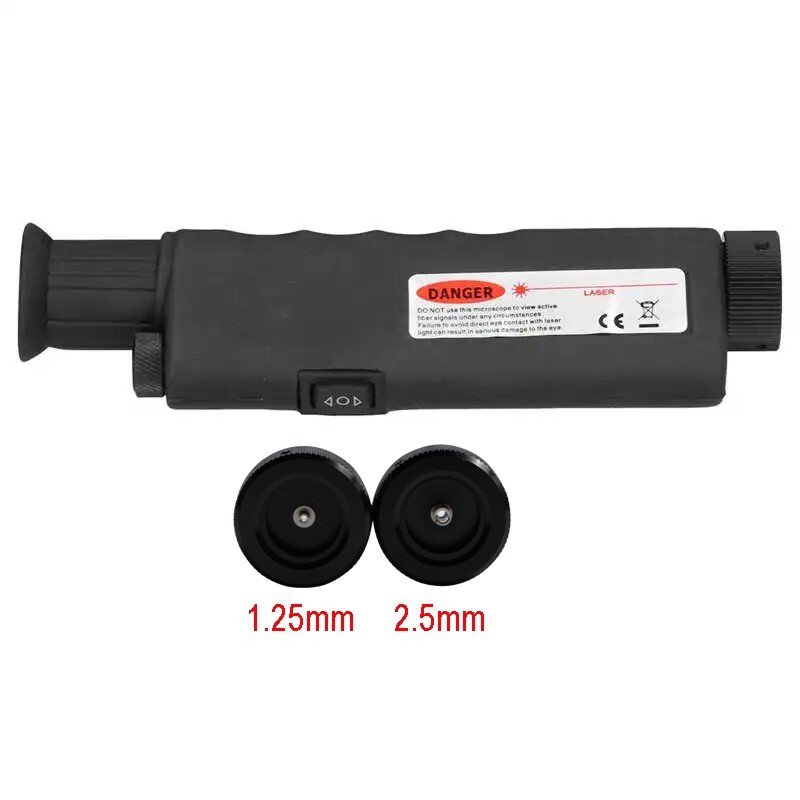

Mini 200X Handheld Fiber End Face Monocular Magnifier Fiber Optic Microscope
Description:
A Fiber Microscope is used for inspecting fiber terminations. This utilizes white LED for coaxial illumination and provides the most critical view of ferrule end face. It has good optical performance and integrated laser safety filters and produces excellent detail of scratches and contamination.Light is introduced into the optical path (axis) so that it comes out of the tip of the objective and strikes the sample perpendicular to the fiber end-face.For critical examination of polish quality, we strongly recommend to use this fiber microscope in all your inspections.If you frequently terminating fiber and have received professional training, It is best tool for you. We recommend 200x magnification for multi-mode and 400x magnification for single-modeFeatures :This device is very effective, reliable, easy and safe to use.Equipped with LED illumination and a Laser filter installed for eye protectionComes with a versatile adapter interfaceProvides clear bright images and smooth focus controlMomentary push button on/off switchLong life, durable and reliableApproved by strict quality and safety standards ensures a long and trouble free lifeApproved with CE and Passes the European Standards which ensures InternationalSstandard QualityFREE 2.5mm and 1.25mm adapators are included in the setSpecifications:Housing Material: non-Slip RubberOptical Magnification: 200XPower source: 3 x Buttom batteries (not included)Light Source: White LED, rated life: 100,000 hoursWeight: 350gSize:187 L x 50mm Controls:Momentary on/off switchFine Focus control wheelSafety Filter: Built-in IR filterAdapter Interface: Uses interchangeable, presented universal or dedicated adapter.Adapter: Universal Adapter (2.5mm) Compatible with ST, FC, SC, E2000, and 2.5mm DIN and 1.25mm(LC,MU) ferrule connector, Add a SMA905 Adapter.Laser Safety information:Our CL Series Fiber Scope is equipped with an attenuating, laser safety filter to reduce the risk of accidental viewing of active fiber emissions. Since many of the wavelengths of light used in the fiber optic industry are invisible to the naked eye, the natural aversion reflex to viewing bright light is suppressed resulting in the potential for long periods of accidental exposure which can lead to permanent damager.The filter we install will provide over 35dBm of attenuation at wavelengths from1310nm to 1550nm. In addition,it will provide over 20.5dBm of attenuation at 850nm. However, it should be stressed that in spite of the protection offered, under no circumstances should an actively emitting fiber be viewed with a visual inspection scope such as this.
Operation Step:Input the Fiber which will be checked into the Fiber insert Entrance, insert another fiber connector into the light source entrance.See from the Eyepiece and press the ON/OFF LED switch (Illumination).Adjust the focus control, just to find the clearest viewingPackage:
1 x 200x CL series Fiber Scope1 x 1.25mm Adaptor (FREE)1 x 2.5mm Adaptor (FREE)
1 x Soft Carrying Case1 x Operation Manual
