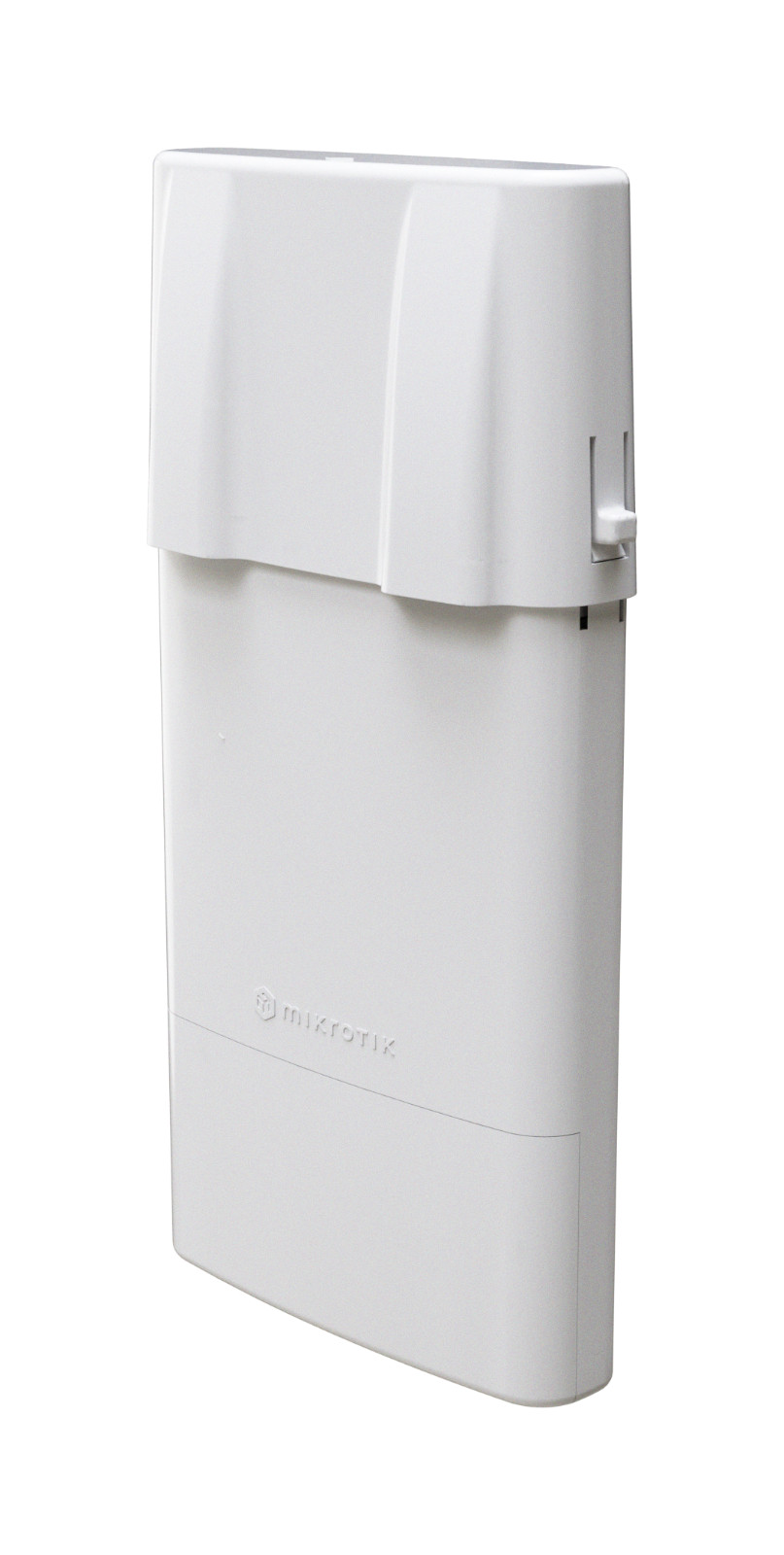

NetBox 5 ax is a powerfuldual-chain outdoordevice that can fill multiple roles in your setups: AP/CPE/Point-to-point. The strong5 GHz Wi-Fi 6 radiocomes with handy RP-SMA connectors. That means you can add a HGO-antenna-OUT and you’ve got yourself an excellent omnidirectional AP… or try the mANT30 PA antenna to create a powerful long-range point-to-point link for distances up to 30 kilometers.*
This weatherproof board features a modern Qualcomm Maple CPU based on the ARM architecture, 256 MB of RAM, a USB port for extra storage or other needs, and a Gigabit Ethernet port with PoE-in.
We’ve designed the case to make a sysadmins life easier. You can open the case effortlessly with just one hand. At the bottom, concealed behind a protective door, you’ll find exits for Ethernet. Equipped with a mounting loop for easy tower/pole installation, it also offers a separate DIN rail mount.
If you’ve read this far, here’s a little bonus feature: we’ve kept the good old beeper for various alarms or creative outputs.
*It's important to note that while longer links are feasible, their reliability may vary. Additionally, the distance achievable greatly depends on the antenna selected for use.
SpecificationsDetailsProduct core count2CPU nominal frequency800 MHzRouterOS license4Operating SystemRouterOS v7Size of RAM256 MBStorage size128 MBStorage typeNANDMTBFApproximately 200'000 hours at 25CTested ambient temperature-40°C to 70°CPoweringDetailsNumber of DC inputs1 (PoE-IN)Max power consumption15 WMax power consumption without attachments6 WCooling typePassivePoE inPassive PoEPoE in input Voltage18-28 VWireless specificationsDetailsWireless 5 GHz Max data rate2400 Mbit/sWireless 5 GHz number of chains2Wireless 5 GHz standards802.11a/n/ac/axWireless 5 GHz chip modelQCN-6102Wireless 5 GHz generationWi-Fi 6EthernetDetails10/100/1000 Ethernet ports1PeripheralsDetailsNumber of USB ports1USB Power ResetYesUSB slot typeUSB type AMax USB current (A)1.5OtherDetailsPCB temperature monitorYesVoltage MonitorYesBeeperYesCertification & ApprovalsDetailsCertificationCE, FCC, IC, EAC, ROHSIP54Wireless specifications5 GHzTransmit (dBm)Receive
