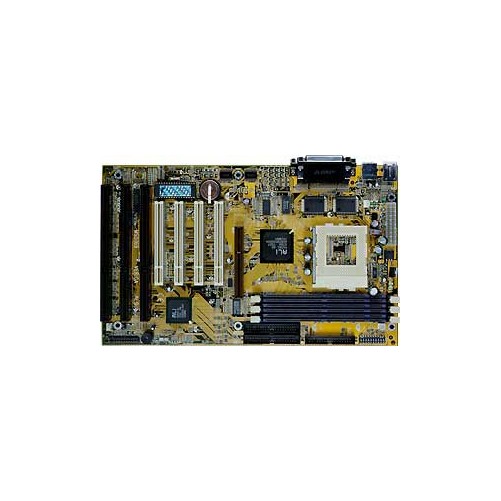

Microstar / MSI MS-5169 Socket 7 ATX motherboard with 3 ISA slots, 4PCI and 1 AG
Price: US $172.00
MICROSTAR MS-5169
Socket 7 motherboard with 3 ISA slots
Only supports USB Keyboards
512KB Pipelined Burst SRAM on board
BIOS:
The mainboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
The mainboard provides a Desktop Management Interface (DMI) function which records your mainboard specifications.
Internal I/O Interface:
An IDE controller on the AladdinRM1543c PCI Chipset provides IDE HDD/CD-ROM with PIO Bus Master and Ultra DMA/33 operation modes.
Connect up to four IDE devices.
MICROSTAR MS-5169 Form Factor:
ATX Form Factor. 11.81" (W) x7.32 inches(L) {30cm x 18.6cm}
Motherboard Specifications
Model:
MICROSTAR MS-5169
Processor Support:
Support Socket 7 for Intel Pentium , up to 233MHz
Cyrix 6x86 / 6x86L / 6x86MX
AMD K6/K6-2/K6-III processors up to 350 MHz
Chipset:
ALi Aladdin V (M1541 & M1543C) AGPse
MICROSTAR MS-5169 FSB:
Supports 66 ~ 100MHz
Memory:
Supports six memory banks using three 168-pin unbuffered DIMM.
Supports a maximum memory size of 768MB
Supports ECC(Error Check Correct) and EC(Multiple-Bit Error Correction) function.(100 MHz without ECC)
Supports 3.3v EDO and SDRAM DIMM.
MICROSTAR MS-5169 Expansion Slots:
One AGP(Accelerated Graphics Port) slot.
4 x 32-bit bus mastering PCI slots
3 x 16-bit ISA slots
Rear Panel I/O Ports:
1 floppy port supports 2 FDD with 360K, 720K, 1.2M,1.44M and 2.88Mbytes.
