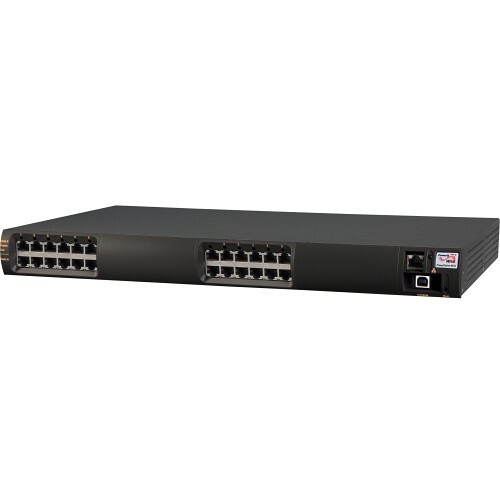

The twelve ports Energy Efficient PoE (EEPoE) midspan provides up to 60 Watts of power over Ethernet and offers a IEEE 802.3at-compliant solution to power network devices such as IP cameras, access control systems, thin clients and other Ethernet powered devices (PD) that require up to 51W, while reducing power losses by almost 3W per link for 25.5W devices. The PD-9512G EEPoE midspan is unique in its ability to deliver power over all 4 pairs of the Cat 5 or better cable, dissipating 50% less power than PoE switches and 2-pair midspans, while fully complying with the IEEE802.3at-2009 standard. EEPoE allows reduced power dissipation to new powered devices and also to the huge installed base of over 100 million existing IEEE standard compliant PDs worldwide. With the midspan’s plug-and-play installation, it is easily and cost-effectively implemented leveraging an existing Ethernet infrastructure while at the same time providing the assurance of a future-proof network.

Number of ports: 12

PoE output: 60W per port

Data rates: 10/100/1000 Mbps

Power input: AC and DC

Power cord options: US

Regulatory compliance: IEEE 802.3at (PoE+ including 2-event, PoH Type 2), RoHS compliant, VCCI, CE, C-Tick

Complies with the latest EMI and safety standards
