MiSTer FPGA SNAC NeoGeo & DB15 Arcade Stick Controller Adapter w/ Cable For Sale
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
The NeoGeo SNAC adapter allows for interfacing the NeoGeo and Jotego arcade cores with the NeoGeo AES arcade fighting stick andNeoGeoCD controller. Aftermarket DB15 arcade sticks/controllers should also be compatible as long as they are wired to work with theNeoGeo. The NeoGeo multitap is also supported. The adapterprovides zero input lag for the controllers. The adapterconnects to the USB 3.0 port on the IO boards. Note: the adapterrequires an Analog IO Board v6.1 or Digital IO Board v1.2. The adapter is a standalone deviceand should not be used with any other SNAC board.

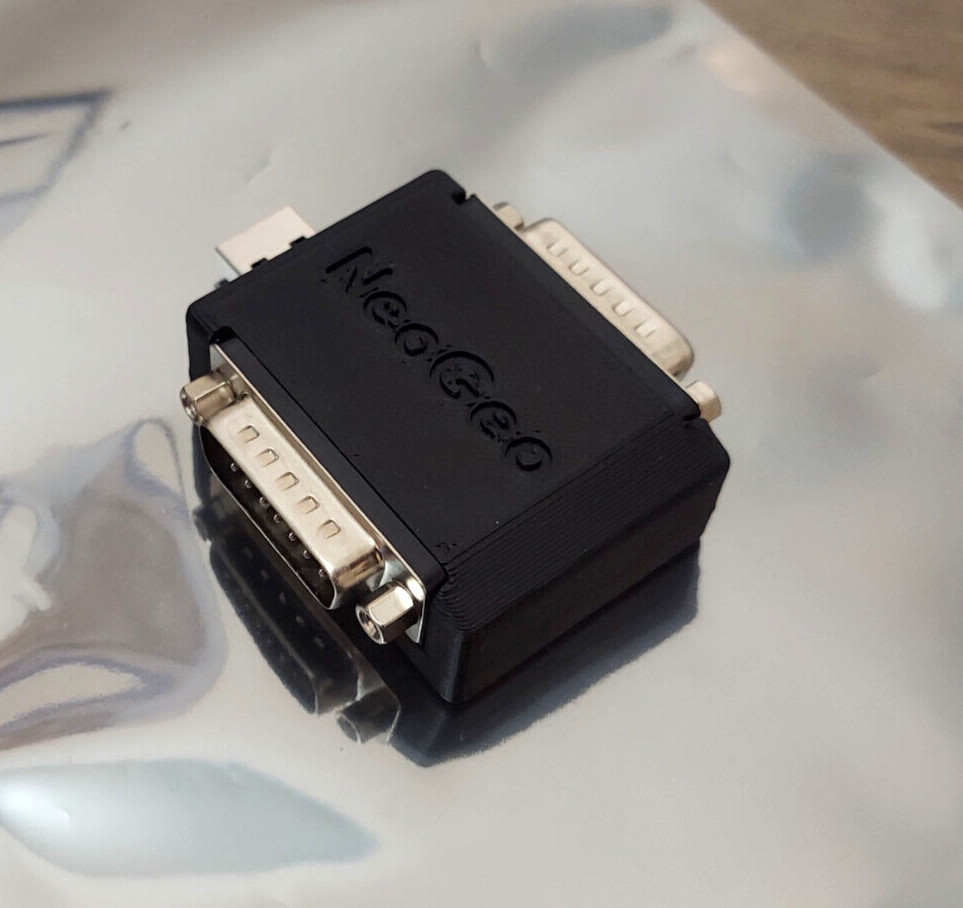

NeoGeo SNAC adapter and case
10" right angle USB 3.0 extension cable
Download the DB9 version of the NeoGeo core
Run update_all to download the latest Arcade cores
Connect theadapter and extension cable to the USB 3.0 port on the IO board
Select DB15 as the controller within the NeoGeo core menu (User IO Joystick -> DB15)
Select MVS as the system within the NeoGeo core menu (System Type -> Arcade (MVS))
Select DB15 as the controller within the Arcade core menu (User port -> DB15 Joystick)
