Mellanox align="center">MLNX-OS3.6.8010 Pre-Installed

In Good Condition, Full Working Order
Tested
Rear to Front Airflow

No Licenses Included

Included:

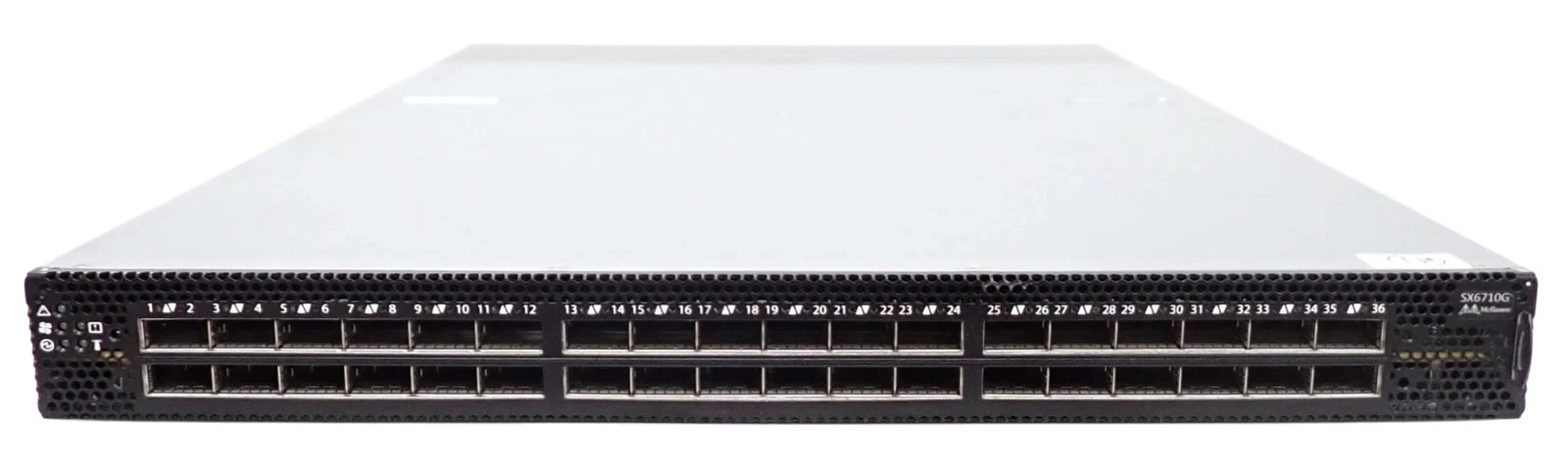

• 1 xMellanox SX6710G 36x 56Gb/s QSFP+ InfiniBand to Ethernet Gateway MSX6710G-FS2F2
• 4 x Fan Module MTEF-FANF-A
• 2 x 460W Power Supplies Non-blocking Managed 56Gb/s InfiniBand to 40GbE Ethernet Gateway
  The SX6710G is a high-performance, low-latency 56Gb/s FDR InfiniBand to 40Gb/s Ethernet gateway.
  SCALING-OUT DATA CENTERS WITH INFINIBAND TO ETHERNET GATEWAY
  Faster servers based on PCIe 3.0, combined with high-performance storage and applications that use increasingly complex computations, are causing data bandwidth requirements to spiral upward. As servers are deployed with next generation processors, High-Performance Computing (HPC) environments and Enterprise Data Centers (EDC) will need every last bit of bandwidth delivered with Mellanox’s FDR InfiniBand to 40GbE high-speed smart gateways.
  VIRTUAL PROTOCOL INTERCONNECT (VPI)
  Virtual Protocol Interconnect (VPI) flexibility enables any standard networking, clustering, storage and management protocol to seamlessly operate over any converged network leveraging a consolidated software stack. VPI simplifies I/O system design and makes it easier for IT managers to deploy infrastructure that meets the challenges of a dynamic data center.
  With its high bandwidth, low latency and reduced overhead, InfiniBand is the ideal choice for speeding application performance while simultaneously consolidating network and I/O infrastructure. Combining InfiniBand and Ethernet into a single solution provides an ideal rack backbone for next generation data centers.
  SUSTAINED NETWORK PERFORMANCE
  Built with Mellanox’s SwitchX-2-based switches, the InfiniBand to Ethernet gateway software license or system, provides full port flexibility to choose between 56Gb/s InfiniBand to either 10, 40 and 56Gb/s Ethernet with low 430ns latency.
  SX6710G, when combined with Mellanox’s ConnectX host adapter family, delivers cost savings by integrating two networks on a single wire. Consolidating multiple networks on a single wire delivers both CAPEX and OPEX savings. OPEX savings are provided by reducing cabling complexity, reducing switch and server infrastructure and delivering a consistent and easy to use management software.
  MANAGEMENT
  SX6710G MLNX-OS software delivers complete chassis management, to manage the firmware, power supplies, fans, ports and other interfaces. SX6710G can also be coupled with Mellanox’s Unified Fabric Manager (UFM) software for managing scale-out computing environments. UFM enables data center operators to efficiently provision, monitor and operate the modern data center InfiniBand to Ethernet gateway, 36 QSFP+ ports, 2Power Supplies (AC), x86 dual core, standard depth, P2C airflow, RoHS6
  Boot Log:
  switch-56a7b2 [standalone: master] #show versionProduct name: MLNX-OSProduct release: 3.6.8010Build ID: #1-devBuild date: 2018-08-20 18:04:19Target arch: x86_64Target hw: x86_64Built by: jenkins@7760ef585e1dVersion summary: X86_64 3.6.8010 2018-08-20 18:04:19 x86_64
  Product model: x86Host ID: 0C42A156A7B2System serial num: MT2018X17300System UUID: 3m 58.480sCPU load averages: 2.07 / 1.25 / 0.53Number of CPUs: 2System memory: 1614 MB used / 2156 MB free / 3770 MB totalSwap: 0 MB used / 0 MB free / 0 MB total
  switch-56a7b2 [standalone: master] #show Part Number Serial Number Asic Rev. HW MSX6710G-FS2F2 MT2018X17300 N/A A4MGMT MSX6710G-FS2F2 MT2018X17300 2 A4FAN1 MTEF-FANF-A MT2014X02163 N/A A6FAN2 MTEF-FANF-A MT2014X02153 N/A A6FAN3 MTEF-FANF-A MT2014X02164 N/A A6FAN4 MTEF-FANF-A MT2014X02154 N/A A6PS1 MTEF-PSF-AC-A MT2017X23109 N/A A4PS2 MTEF-PSF-AC-A MT2017X23110 N/A A4
  switch-56a7b2 [standalone: master] #show licenseNo licenses have been configured.
  switch-56a7b2 [standalone: master] #show Device Fan Speed Status FAN F1 8237.00 OKFAN1 FAN F2 7156.00 OKFAN2 FAN F1 8337.00 OKFAN2 FAN F2 7156.00 OKFAN3 FAN F1 8389.00 OKFAN3 FAN F2 7156.00 OKFAN4 FAN F1 8337.00 OKFAN4 FAN F2 7194.00 OKPS1 FAN F1 10320.00 OKPS2 FAN F1 10288.00 OK
  switch-56a7b2 [standalone: master] #show Device Sensor Power Voltage Current Capacity Feed Status [Watts] [Volts] [Amp] power-mon input 42.38 234.00 0.19 460.00 AC OKPS2 power-mon input 11.62 233.50 0.08 460.00 AC OK
  Total power used : 54.00 WattsTotal power capacity : 920.00 WattsTotal power available : 866.00 WattsMaximum consumed power of all turned on modules: 262.00 Watts
  switch-56a7b2 [standalone: master] #show Component Reg CurTemp Status SX T1 17.00 OKMGMT Board AMB temp T1 18.00 OKMGMT Ports AMB temp T1 17.50 OKMGMT CPU package Sensor T1 21.00 OKMGMT CPU Core Sensor T1 20.00 OKMGMT CPU Core Sensor T2 19.00 OKPS1 power-mon T1 15.00 OKPS2 power-mon T1 15.50 OK
