Specification

Single-MotorTake-up Unit

Dual-MotorTake-up Unit

Max Working Width

1900mm

1900mm

Voltage

110V/ 220V

110V/ 220V

Motor Warranty

1 Year

1 Year

Max Diameter Of Media

Ø220mm

Ø240mm

Load Capacity

≤10KG

≤20KG

Gross Weight

6.5KG

8KG

Includes Steel Pipe

2 steel pipes

2 steel pipes

Round Steel Pipe Diameter

38mm

38mm

Square Steel Pipe Size

20*30mm

20*30mm

Compatibility

Universal system, fits most printer models

Universal system, fits most printer models

Structure Material

Reinforced metal structure for stability

Reinforced metal structure for stability

Rolling Direction

Suitable for inward and outward winding

Suitable for inward and outward winding

Number of Motors

Single motor

Dual synchronized tension-sensitive motors

Note:

Thesingle-motorTake-up Unitis suitable forlight loads under 10KG. Using it for heavier materials may cause noise and reduce motor lifespan.

If you need to roll upheavier materials, we recommend thedual-motorTake-up Unit, which offers better performance and stability.

Compatible Printers List:

Roland

FJ-540, CJ-540, SC-540, FJ-500, FJ-600, RS-540, SC-500, SC-545EX, SJ-545EX, SP-540, SP-540V, VP-540, VS-540, RA-640, RE-640, RS-640, SJ-645EX, VS-640, XR-640, FJ-740, SJ-740, FH-740

Mutoh

ValueJet 1324, ValueJet 1304, RJ-900C (Draftstation), RJ-901C (Draftstation Pro), ValueJet 1604, ValueJet 1614, ValueJet 1608, ValueJet 1618, ValueJet 1624, ValueJet 1638, ValueJet 1638W

Mimaki

JV400-130LX, JV400-130SUV, JV22, TX2-1600, JV3, JV4, JV400-160LX, JV400-160SUV, TS3-1600, JV33-130, JV33-130BS, JV33-160, JV33-160BS, JV5-130S, JV5-160S

Installation Instructions:

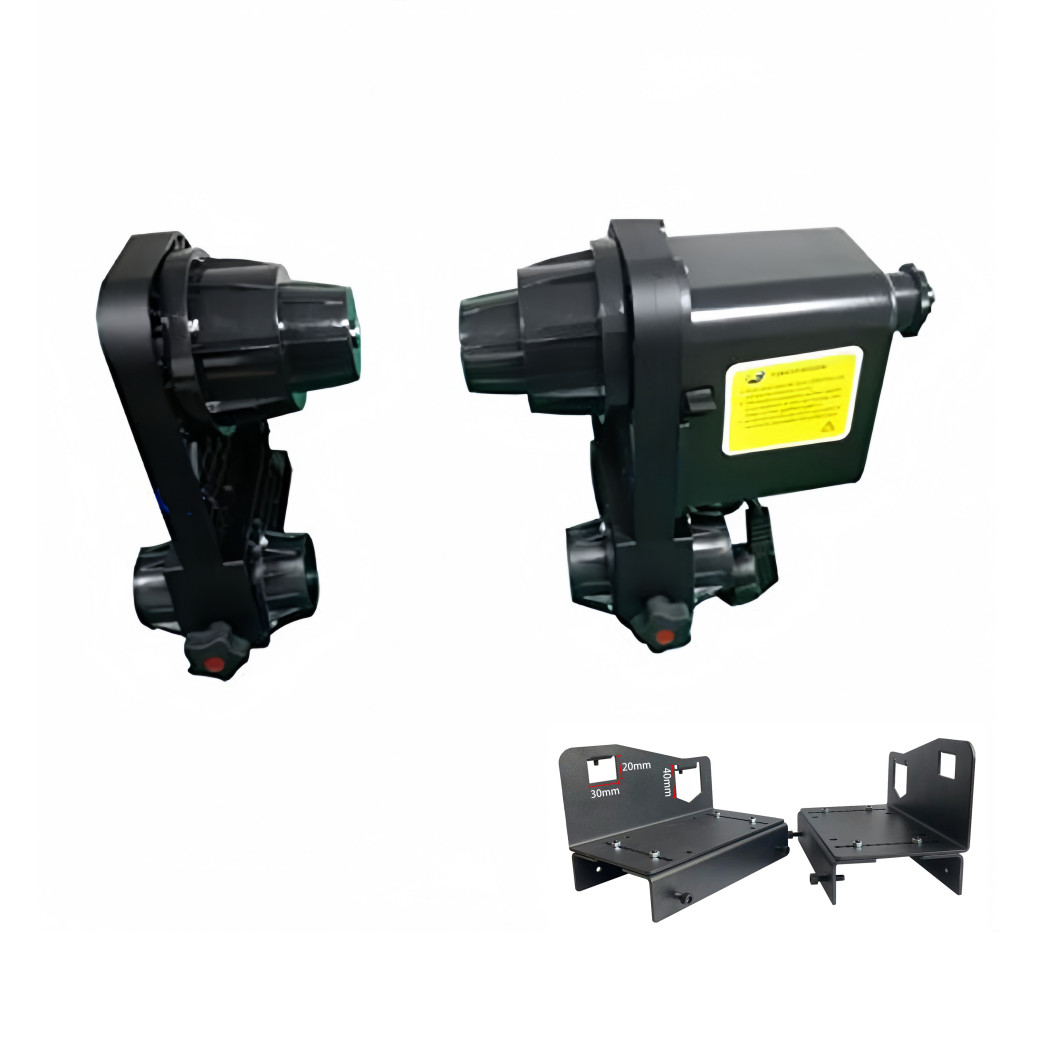

Insert the square or round tube through the power head (as shown in the image above).
Following the direction of the arrow, thread the tube through the locking bracket and fastening ring.
Use a 2.5mm Allen wrench (M5) to tighten the set screws and secure the square tube in place.
