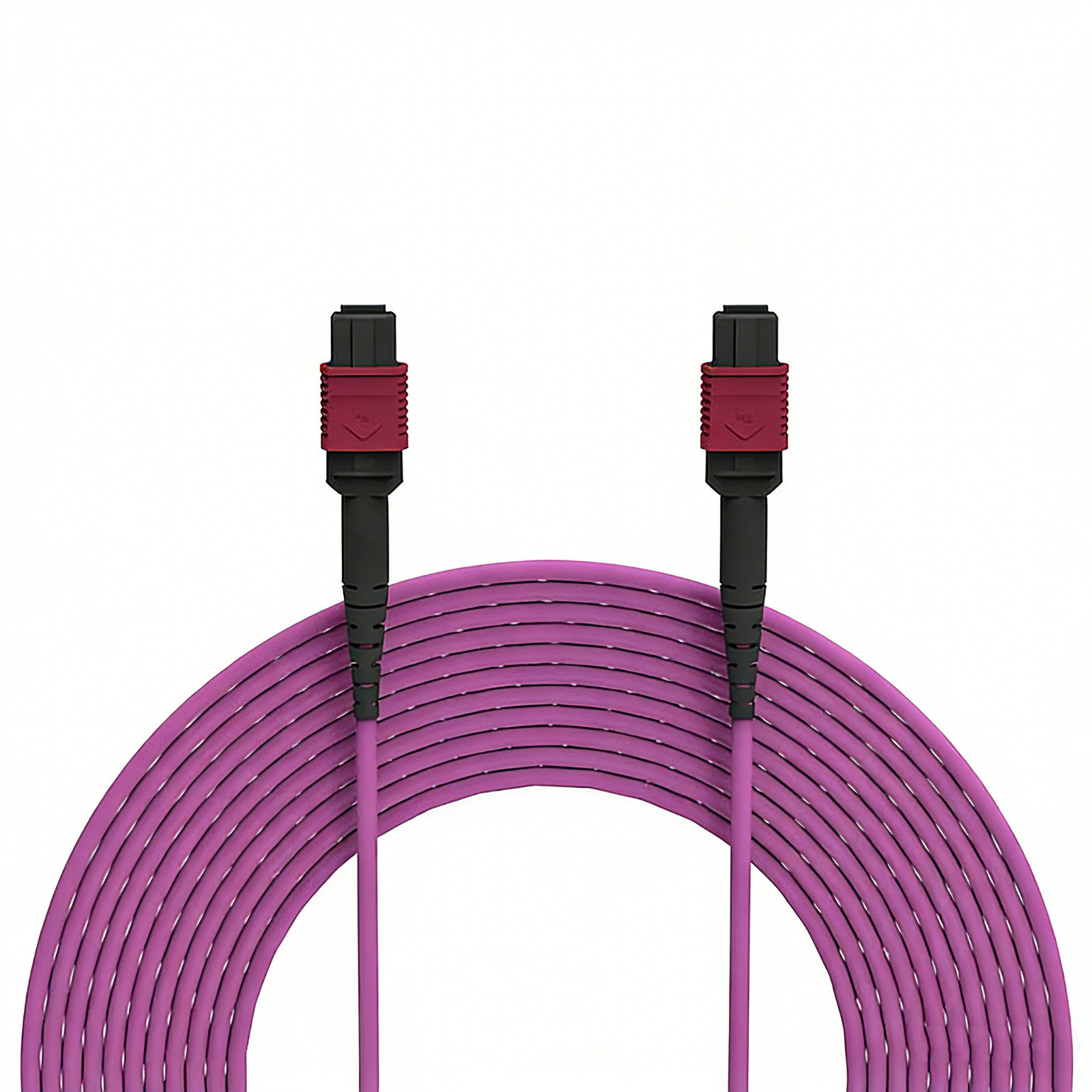

1M~15MMTP MPO 24 Core OM4 Multimode Patch Cable 50/125 Type B LSZH Fiber Optic JumperProducts DescriptionOM4 MTP/UPC Female to MTP/UPC Female 12 Fibers Optical Patch CordMTP trunk cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles, MTP Female to MTP Female connector and 3.0mm bunch cable is designed for 40G/100G direct connection and high-density data center applications. Theoretically, trunk cables are available with 12, 24, 48 and 72 fibers. Their ends are terminated with the customer’s choice of 12-fiber or 24-fiber MTP/MPO connectors.Product ParamentersConnector TypeMTP/Female to MTP/FemaleFiber Type50/125 OM4Wavelength850/1300nmFiber Count24 cores40/100G Ethernet Distance
150m at 850nm10G Ethernet Distance
400m at 850nmPolish TypeUPC to UPCMinimum Bend Radius7.5mmAttenuation at 850nm
≤2.3dB/kmAttenuation at 1300nm
≤0.6dB/kmJacket OD2.0mm 3.0mmCable Losss(dB) 850/1300nmStandard≤0.50dBElite Low Loss≤0.35dBReturn Loss(dB)≥20dB(UPC)Installation Tensile Load66 NTensile Strength (Long/Short Term)80N/240NOperating Temperature (° C)-10~ + 70Storage Temperature (° C)-40 ~ +85Package1PC/bagFeatures:Used to connect equipment that utilizes MTP style connectors and OM4 50/125 Multimode cabling
● Type A, Type B and Type C Polarity Options available● Each cable 100% tested for low insertion loss and back reflection● Custom lengths and cable colors available● OFNR (PVC), Plenum(OFNP) and Low-Smoke, Zero Halogen(LSZH) Rated options● Reduced Insertion Loss by up to 50%● High Durability● High Temperature Stability● Good Exchangeability● High Density design cuts down on installation costs
Fiber Polarity Guidance12 Fibers MTP/MPO Fiber Polarity24 Fibers MTP/MPO Fiber Polarity
