Honest Seller
Trusted, Qualified and Recognized Seller
We promised all the Items will be tested earnestly before shipping, ensure it 100% working in orders.

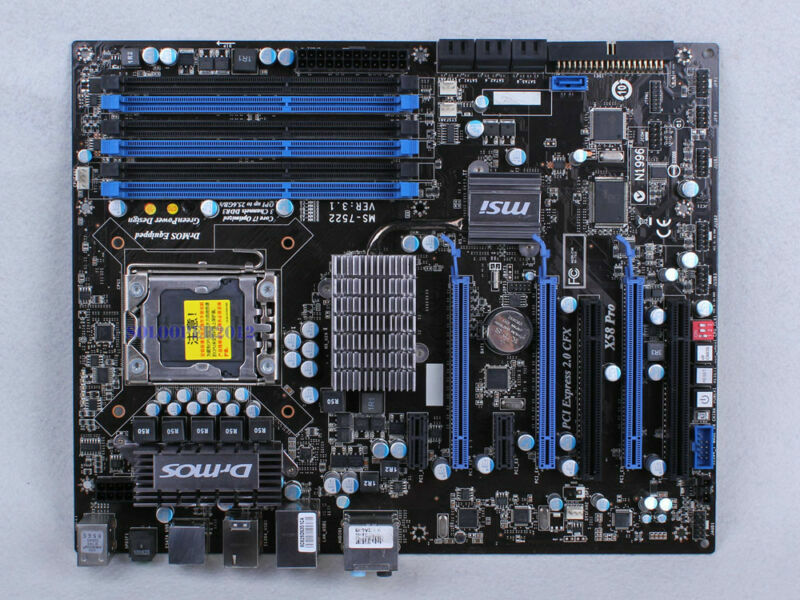

Package Included: 1 x motherboard 1 x I/O back panel 2 x generic SATA II cable
Technical Tips:
A. Please do not use fake memory or if you're not sure whether your memory fake or not, please do not try it on our motherboard.
B. Please check your CPU, and RAM without problem, then install on the motherboard.
C.If the motherboard can't run correctly, please first check your CPUwhether can be compatible with our motherboard, then check your videocard or power supply.
D. 90% "can't boot" problem was caused by RAM, please don't use "single side" RAM.(Please view the following picture)
Parts Specification:
CPU
• Supports Intel® i7 based processors in LGA1366 package.
Please refer to CPU Support for compatible CPU; the above description is for reference only.
Chipset
• Intel® X58 Chipset
-Supports QPI up to 6.4GT/s
Intel® ICH10R Chipset
- Hi-Speed USB (USB2.0) controller, 480Mb/sec, up to 12 ports.
-6 SATAIIports with transfer rate up to 3Gb/s.
- PCI Master v2.3, I/O APIC.
- ACPI 2.0 compliant.
- Serial ATA RAID 0/1/5/10.
- Integrated AHCI controller.
Main Memory
• Supports six unbuffered DIMM of 1.5 Volt DDR3 800/1066/1333*/1600* (OC)DRAM, 24GB Max
- Supports 1Gb/ 2Gb/ 4Gb DRAM size
- Supports x8 / x16 data lines per DIMM
- Supports up to 3 channel mode
Slots
•3 PCI Express gen2 x16 slots
- two dark Blue PCIE x16 slots (PCI_E2 &PCI_E4) support up to PCIE x16 speed, one Blue PCIE x16 slot(PCI_ E5) supports up to PCIE x4 speed
- supports ATI® Crossfire™
•2 PCI Express gen1 x1 slots
• 2 PCI slot, support 3.3V/ 5V PCI bus Interface
On-Board IDE/SATA
• One Ultra DMA 66/100/133 IDE controller integrated in JMicron® 363.
- Supports PIO, Bus Master operation modes.
- Can connect up to two Ultra ATA drives.
• SATAII controller integrated in ICH10R/JMicron® 363 chipset
- Up to 3Gb/s transfer speed.
- Supports six SATAII ports by ICH10R (SATA1~6)
- SupportsoneSATAII port by JMicron 363 (SATA7)
- Supportsone eSATA port by JMicron 363.
- Supports AHCI controller with SATA RAID 0/1/5/10 by ICH10R.
Audio
• Chipset integrated by Realtek® ALC888S
- Flexible 8-channel audio with jack sensing
- Compliant with Azalia 1.0 Spec
- Meet Microsoft Vista Premium spec
LAN
• Supportsone PCI Express LAN 10/100/1000 Fast Ethernet by Realtek 8111C.
IEEE1394 / FireWire
• JMicron®381 chipset
- Supports up to two 1394 ports. (Rear panel x1, pinheader x1)
- Transfer rate is up to 400Mbps.
Internal I/O Connectors
- ATX 24-Pin power connector
- 8-pin ATX 12V power connector
- CPU x 1 / System x3 FAN connectors
- CD-in connector
- Front panel audio connector
- Front panel connector
- 1 x chasis intrusion connector
- 1 x serial port pinheader
-3 x USB 2.0 connectors
-7 x Serial ATAII connectors
- 1 x ATA133 connector
- 1 x IEEE1394 connector support additional 1 port
- 1 x ResetButton
- 1 x Power Button
- 1 x Clear CMOS Button
-1 x SPDIF-out connector
- 1 x TPM module connector
Back Panel I/O Ports
- 1 x PS/2 Keyboard
- 1 x PS/2 Mouse
- 1 x eSATA port
- 1 x IEEE1394 port
-6 x USB 2.0 ports
-1 x RJ45 LAN Jack
- 1 x 6 in 1 audio jack
- 1 x Optical SPDIF-out
BIOS
• The motherboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
• The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.
Dimension
• 30.5cm(L) x 24.4cm(W) ATX Form Factor
Mounting
• 9 mounting holes.
