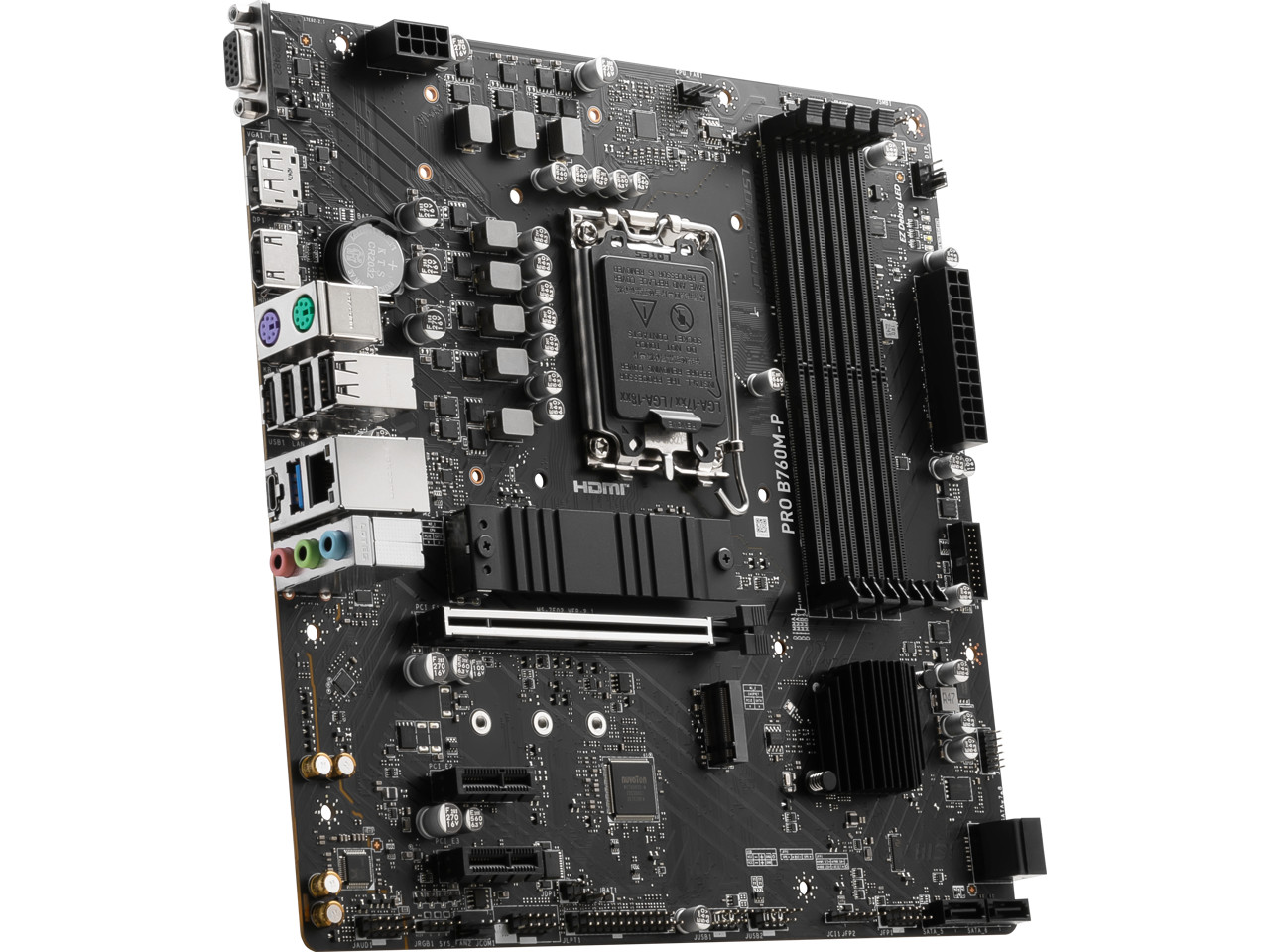

Learn more about MSI PRO B760M-PModelBrandMSIModelPRO B760M-PPart NumberPRO B760M-PSupported CPUCPU Socket TypeLGA 1700CPU TypeCore / Pentium / Celeron (12th Gen, LGA1700) / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Intel Core 14th Gen (LGA 1700)ChipsetsChipsetIntel B760MemoryNumber of Memory Slots4x288pin (DDR5)Memory StandardMemory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6800+ MHz
• 1DPC 2R Max speed up to 6400+ MHz
• 2DPC 1R Max speed up to 6000+ MHz
• 2DPC 2R Max speed up to 5600+ MHzMaximum Memory Supported256GBChannel SupportedDual ChannelExpansion SlotsPCI Express 4.0 x161 x PCI Express 4.0 x16PCI Express x12x PCIe 4.0 x1 slotsStorage DevicesSATA 6Gb/s* SATA5 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.M.2M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devicesOnboard AudioAudio ChipsetRealtek® ALC897 Codec
7.1-Channel High Definition AudioOnboard LANLAN ChipsetRealtek® RTL8111H Gigabit LANRear Panel PortsBack I/O Ports1 x DisplayPort / 1 x HDMI / 1 x LAN (RJ45) / 1 x USB 3.2 Gen 1 Type-A / 1 x USB 3.2 Gen 2 Type-C / 3 x Audio Jacks / 4 x USB 2.0/1.1PS/21 x PS/2 keyboard/mouse portVideo Ports1x VGA
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.HDMI1x HDMI™
Support HDMI™ 1.4, maximum resolution of 4K 30Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.RJ451 x RJ45DisplayPort1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*USB 1.1/2.04 x USB 2.0USB Type-C1 x USB Type-C® port, with USB 3.2 Gen 2 supportAudio Ports3 PortsInternal I/O ConnectorsOnboard USB2 x USB 3.1 + 4 x USB 2.0Other Connectors1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Printer Port (JLPT)
1x Com Port (JCOM)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)Software FeatureWindows 11Support for Windows® 11 64-bit, Windows® 10 64-bitPhysical SpecForm FactorMicro ATXDimensions (W x L)243.84mmx243.84mmShippingEnjoy fast and reliable shipping when you buy your products from Newegg. Our ordering and shipping services are among the best in the industry due to short processing times and a variety of shipping methods. Your orders are packaged at one of the many local warehouses across the country, minimizing delivery times and ensuring you get your purchases as soon as possible.PaymentsNewegg has partnered with PayPal to offer you the very best in payment services. PayPal allows you to buy with confidence, knowing your payments are processed quickly and securely with state-of-the-art encryption technology.ReturnReturns are subject to restocking fees of 15% - 30% of the purchase price and return shipping fees. For products that are eligible for return for replacement, the return shipping labels are free for returns for replacement of the same item within the applicable return policy period. Newegg does NOT charge for restocking fees or return shipping labels for returns of defective products, or if you received the wrong product, the product did not match what was shown on the Site, or we made some other shipping error, provided the item is returned within its return policy period, and in accordance with the Return Policy. For international buyers, items shipped internationally do not qualify for manufacturer warranties.
