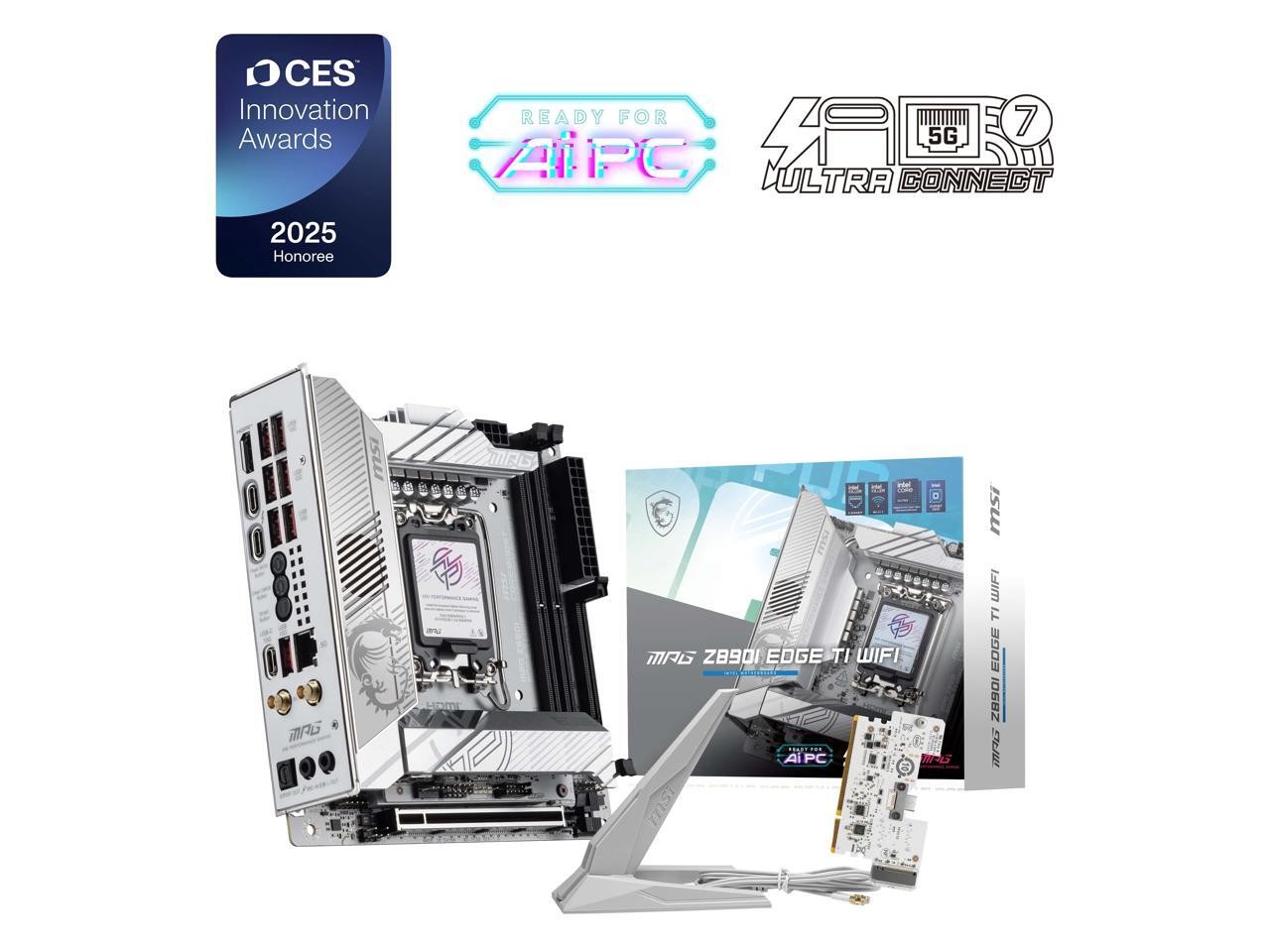

Learn more about MSI MPG Z890I EDGE TI WIFIModelBrandMSIModelMPG Z890I EDGE TI WIFISupported CPUCPU Socket TypeLGA 1851CPU TypeIntel Core Ultra Processors (Series 2)ChipsetsChipsetIntel Z890MemoryNumber of Memory Slots2x288pin (DDR5)Memory StandardDDR5 4800 / DDR5 5000 / DDR5 5200 / DDR5 5400 / DDR5 5600 / DDR5 5800 / DDR5 6000 / DDR5 6200 / DDR5 6400 / DDR5 6600 / DDR5 6800 / DDR5 7000 / DDR5 7200 / DDR5 7400 / DDR5 7600 / DDR5 7800 / DDR5 7900 / DDR5 7950 / DDR5 8000 / DDR5 8200 / DDR5 8266 / DDR5 8400 / DDR5 8600Maximum Memory Supported128GBChannel SupportedDual ChannelMemory FeatureMemory Support 8600 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
Max. overclocking frequency:
- 1DPC 1R Max speed up to 8600+ MT/s
- 1DPC 2R Max speed up to 7200+ MT/sSupports Intel POR Speed and JEDEC Speed
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMMExpansion SlotsPCI Express 5.0 x16PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)*PCI_E1 support manual BIOS adjustment to X8+X8 / X8+X4+X4Storage DevicesSerial ATA (SATA)2 x SATA 6Gb/sM.2M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280 devices*M.2_4 & 2x SATA are supported by 5-in-1 XPANDEROnboard AudioAudio ChipsetRealtek ALC4080Audio Channels7.1-Channel USB High Performance AudioOnboard LANLAN ChipsetIntel Killer E5000B 5G LANMax LAN Speed5GbpsWireless LANIntel Killer BE1750x Wi-Fi 7BluetoothBluetooth 5.4Rear Panel PortsBack I/O Ports1 x Flash BIOS Button / 1 x HDMI / 1 x LAN (RJ45) / 1 x Optical S/PDIF Out / 1 x Smart Button / 1 x USB 3.2 Gen 2 Type-C / 2 x Antenna Bracket / 2 x Audio Jacks / 2 x Thunderbolt 4 / 7 x USB 3.2 Gen 2 Type-AInternal I/O ConnectorsOnboard USB2 x USB 2.0 ports
2 x USB 5Gbps Type A ports
1 x USB 20Gbps Type C portsOther Connectors1 x CPU Fan
1 x Combo Fan (Pump_Sys Fan)
1 x System Fan
1 x EZ Conn-header (JAF_2)
2 x Front Panel (JFP)
1 x Chassis Intrusion (JCI)
1 x Front Audio (JAUD)
1 x Thermal Sensor connectors(T_SEN)
1 x Addressable V2 RGB LED connector (JARGB_V2)
1 x TPM pin header(Support TPM 2.0)Software FeatureWindows 11SupportedPhysical SpecForm FactorMini ITXPower Pin1 x Power Connector(ATX_PWR)
1 x Power Connector(CPU_PWR)ShippingEnjoy fast and reliable shipping when you buy your products from Newegg. Our ordering and shipping services are among the best in the industry due to short processing times and a variety of shipping methods. Your orders are packaged at one of the many local warehouses across the country, minimizing delivery times and ensuring you get your purchases as soon as possible.PaymentsNewegg has partnered with PayPal to offer you the very best in payment services. PayPal allows you to buy with confidence, knowing your payments are processed quickly and securely with state-of-the-art encryption technology.ReturnReturns are subject to restocking fees of 15% - 30% of the purchase price and return shipping fees. For products that are eligible for return for replacement, the return shipping labels are free for returns for replacement of the same item within the applicable return policy period. Newegg does NOT charge for restocking fees or return shipping labels for returns of defective products, or if you received the wrong product, the product did not match what was shown on the Site, or we made some other shipping error, provided the item is returned within its return policy period, and in accordance with the Return Policy. For international buyers, items shipped internationally do not qualify for manufacturer warranties.
