⚠️ Please Note

• The Thunderbolt 4 Type-C video output supports integrated CPU graphics only. Display output capability may vary depending on the installed CPU.
• DDR5 overclocking to 8600+ MT/s is supported at 1 DIMM per channel (1DPC 1R) configuration with Intel XMP.

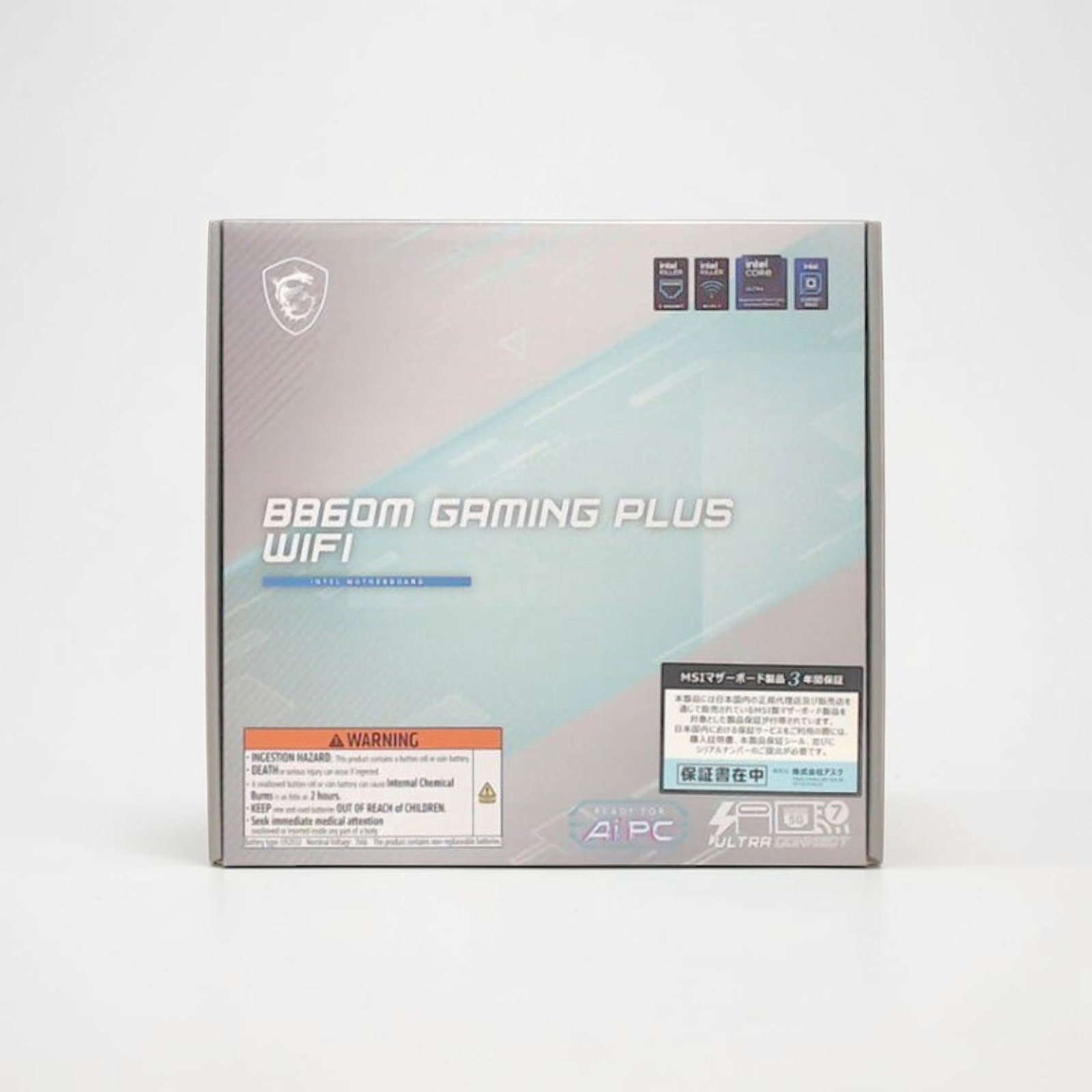

MSI B860M Gaming Plus WiFi Micro-ATX Motherboard

✨ Overview

The MSI B860M Gaming Plus WiFi is an entry-level gaming Micro-ATX motherboard built on the Intel B860 chipset, designed for Intel Core Ultra processors (Series 2) in the LGA 1851 socket. It combines a 12-phase Duet Rail Power System, PCIe 5.0, Thunderbolt 4, Wi-Fi 7, and DDR5 memory support to deliver outstanding performance and connectivity at a competitive price point.

⭐ Key Features

• 🔋 Ultra Power Delivery: 12-phase Duet Rail Power System with P-PAK and 6-layer server-grade PCB for stable, high-performance CPU operation
• 🌐 Ultra Connect: Intel Killer 5G LAN, full-speed Wi-Fi 7, Bluetooth 5.4, and Thunderbolt 4 Type-C (up to 40 Gbps) for fast, low-latency connectivity
• 💾 High-Speed DDR5 Memory: 4 x DDR5 DIMM slots with dual-channel support, up to 256 GB and 8600+ MT/s overclocking via Intel XMP
• ⚡ PCIe 5.0 & Gen5 M.2: Steel Armor PCIe 5.0 x16 slot and a Gen5 x4 M.2 slot (128 Gbps) for the latest GPUs and NVMe storage
• 🛠️ EZ DIY Design: Toolless EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II, and EZ Antenna for fast, hassle-free assembly
• 🎵 8-Channel HD Audio: 7.1-channel High Definition Audio with Audio Boost for immersive sound
• ❄️ Frozr Thermal Design: Extended heatsink with 7 W/mK thermal pad and MSI Center Frozr AI Cooling for comprehensive fan control

📋 Specifications

• 🔲 Form Factor: Micro-ATX
• 🧩 Chipset: Intel B860
• 🔌 CPU Socket: LGA 1851
• 🖥️ Compatible CPU: Intel Core Ultra Processors (Series 2)
• 🗂️ Memory: 4 x DDR5 UDIMM, Dual Channel, Max 256 GB, up to 8600+ MT/s (XMP 3.0)
• 📡 Expansion Slots: 1x PCIe 5.0 x16 (Steel Armor), 1x PCIe 4.0 x16, 2x PCIe 4.0 x1
• 💿 Storage: 1x M.2 PCIe 5.0 x4 (128 Gbps), 1x M.2 PCIe 4.0 x4 (64 Gbps), 1x M.2 PCIe 4.0 x2 (32 Gbps), 4x SATA 3
• 🖱️ Rear USB: 1x Thunderbolt 4 Type-C, 1x USB 3.2 Gen2 Type-A, 1x USB 3.2 Gen1 Type-C, 2x USB 3.2 Gen1 Type-A, 2x USB 2.0 Type-A
• 🔗 Front USB: 1x USB 3.2 Gen2 Type-C, 4x USB 3.2 Gen1 Type-A, 4x USB 2.0 Type-A
• 🖼️ Video Output: 1x Thunderbolt 4 Type-C, 1x HDMI 2.1, 1x DisplayPort 1.4
• 🔊 Audio: 7.1-Channel HD Audio Codec with Audio Boost
• 📶 Network: 1x 5GbE (Intel Killer), Wi-Fi 7, Bluetooth 5.4
• 💻 Compatible OS: Windows 11 64-bit

📦 What's in the Box

• 📗 Quick Installation Guide
• 📡 Wi-Fi Antenna (EZ Antenna)
• 🔩 EZ M.2 Clip II
• 🔧 EZ M.2 Clip II Remover
• 🔌 SATA Cable
• 🔀 1-to-2 EZ Conn-Cable (V1)
• 🪛 2x M.2 Screw Set
