please make sure this item is the correct one your wanted before purshasing.
Motherboard Description:

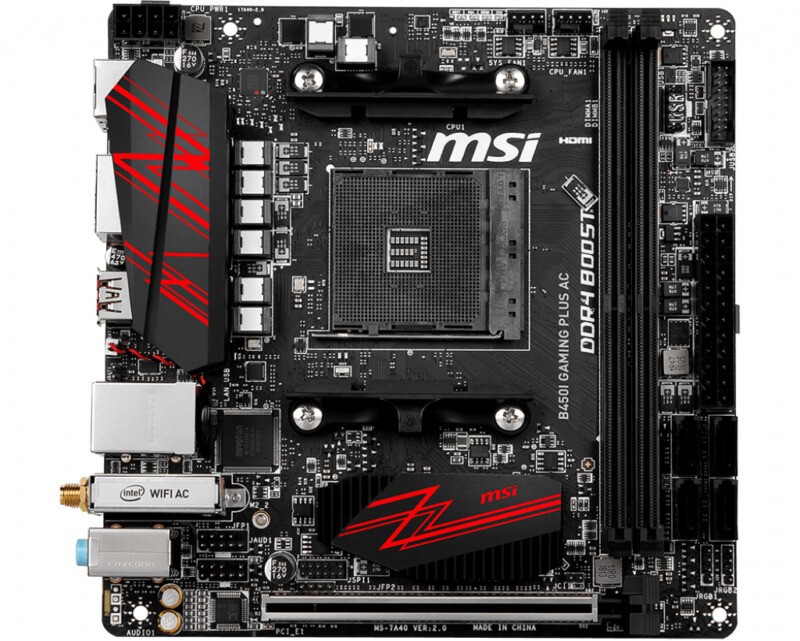

MSI B450I GAMING PLUS AC Motherboard AMD B450 2xDDR4 Socket AM4 Mini-ITX Please DO NOT use fake memory, because the motherboard maybe can't support.
Please DO NOT use single-side memory, because some motherboards can't support.
Some CPUs can't be supported by motherboard, please try to update the BIOS, please note that's not motherboard's defect.
Some "Can't boot" problem's caused by memory, please clean the memory's gold fingers and clean the motherboard's memory solts.
Package Included:
1 * motherboard
2 * sata cable
1 x I/O back panel
Product information
CPU
1st and 2nd Gen AMD Ryzen™ and Ryzen™ processors with Radeon™ Vega graphics supporting AM4 pins
Chipset
AMD® B450 Chipset
RAM
2 DDR4 memory slots, up to 32GB total capacity
Supports 1866/ 2133/ 2400/ 2667Mhz (via JEDEC)
Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (via A-XMP OC MODE)
Dual-channel memory architecture
Support for non-ECC UDIMM memory
Supports ECC UDIMM memory (non-ECC mode)
Expansion slot
1 PCIe 3.0 x16 slot
1st and 2nd Gen AMD Ryzen™ processors support x16 speeds
Ryzen™ processors with Radeon™ Vega graphics support x8 speeds
Storage
AMD® CPUs
1 M.2 slot (M2_1, Key M)
Supports PCIe 3.0 x4 and SATA 6Gb/s 2280 storage devices
AMD® B450 Chipset
4 SATA 6Gb/s ports
RAID
AMD® B450 Chipset
Provides SATA storage devices supporting RAID 0, RAID 1 and RAID 10
Onboard graphics card
1 DisplayPort, supports up to 4096x2304 @60Hz, 2560x1600 @60Hz, 3840x2160 @60Hz, 1920x1200 @60Hz1,2
1x HDMI™ 1.4 port, supports up to 4096x2160 @30Hz, 2560x1600 @60Hz1,2
Maximum shared memory of 2048 MB is only supported when using AMD Ryzen™ processors with Radeon™ Vega graphics
USB
AMD® B450 Chipset
2 USB 3.1 Gen1 (SuperSpeed USB 5Gbps) Type-A ports on back panel
4 USB 2.0 (High-speed USB) ports (2 Type-A ports on back panel, 2 ports via onboard USB 2.0 ports)
AMD® CPUs
4 USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on back panel, 2 ports via onboard USB 3.1 Gen1 ports)
Sound effect
Realtek® ALC887/ALC897 Codec
7.1-channel high-quality sound
The internet
1 Realtek® 8111H Gigabit NIC
WIFI & Bluetooth
Intel® Dual Band Wireless-AC 3168 Module
Infinity module pre-installed in M2_2 (Key E) slot
Supports Wi-Fi 1x1 802.11ac, dual-band (2.4GHz,5GHz) up to 433 Mbps
Supports Bluetooth® 4.2, 4.1, Low Energy, 4.0, 3.0, 2.1, 2.1+EDR
Built-in interface
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
4 SATA 6Gb/s ports
1 USB 2.0 port (can support 2 additional USB 2.0 ports)
1 USB 3.1 Gen1 port (can support 2 additional USB 3.1 Gen1 ports)
1 x 4-pin CPU fan connector
1 x 4-pin system fan connector
1 panel audio interface
2 system panel connectors
1 chassis opening port
1 clear CMOS function jumper
2 5050 RGB LED strip 12V connectors
Backplane interface
USB 2.0
DisplayPort
LAN
Wi-Fi/Bluetooth
HD audio interface
PS/2 keyboard/mouse port
HDMI
USB 3.1 Gen1
USB 3.1 Gen1
Form Factor
Mini-ITX ; 6.7 x 6.7 inches (17.0 x 17.0 cm)
Mounting hole
