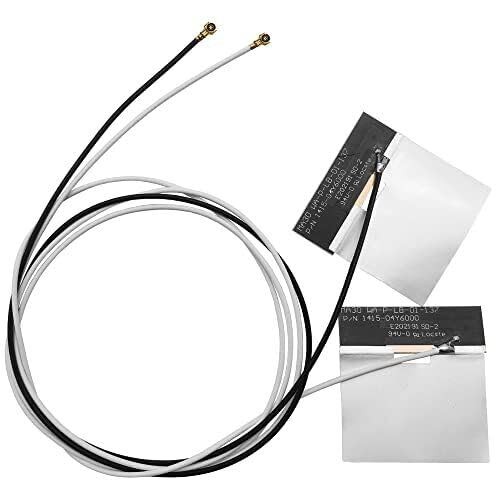

Trusted SellerStore response★★★★★ Top RatedFast dispatchSecure packaging★ responseVisit StoreMHF4 IPEX 4 WiFi 6E Antenna – Tri-Band 6GHz/5GHz/2.4GHz Internal Adhesive FPC for Intel AX210/AX201/AX200, M.2 NGFF Cards, 2-Pack with Dual Cable Lengths

• 🔹 TRUE TRI-BAND COVERAGE – 2.4GHz / 5GHz / 6GHz WIFI 6E/7 READY – This internal FPC antenna supports all three frequency bands: 2.4GHz (2400-2500 MHz) for long-range coverage, 5GHz (5150-5850 MHz) for high-speed streaming, and 6GHz (5925-7125 MHz) for ultra-low latency WiFi 6E/7 performance. Frequency coverage: DC up to 7.125 GHz with low VSWR.
• 🔹 MHF4 (IPEX 4) PRECISION CONNECTOR – FOR M.2 NGFF CARDS – Features the industry-standard MHF4 (IPEX 4) connector (1.2mm mating height), specifically designed for modern M.2 (NGFF) WiFi cards. ⚠️ CRITICAL: This is for M.2 (NGFF) interface ONLY – NOT compatible with Mini PCIe cards or older IPEX 1/2/3 connectors. Compatible with Intel AX210, AX211, AX200, AX201, 9560, 9260, Killer 1675x/1650x/1550, and most M.2 NGFF WiFi cards.
• 🔹 FLEXIBLE PCB (FPC) ADHESIVE DESIGN – EASY INTERNAL INSTALLATION – The flexible printed circuit (FPC) antenna features a 3M adhesive backing for secure, permanent mounting inside RF-transparent (plastic) enclosures. The ultra-thin, flexible design fits easily inside laptops, mini PCs, and compact devices without taking up valuable space.
• 🔹 3DBI GAIN & OMNIDIRECTIONAL PERFORMANCE – Delivers 3 dBi gain with an omnidirectional radiation pattern for balanced 360° coverage. VSWR ≤ 1.8 for 2.4GHz band, ≤ 1.5 for 6GHz band ensures efficient power transfer and minimal signal reflection. Frequency range: 2400-7125 MHz.
• 🔹 DUAL CABLE LENGTHS – FLEXIBLE ROUTING – Includes two different cable lengths for flexible installation inside various chassis: Gray/White Cable: 56 cm (22 inches) Black Cable: 66 cm (25.9 inches) The adhesive backing allows for easy placement inside your device chassis.
• 🔹 WIDE COMPATIBILITY – SUPPORTS MAJOR WIFI 6E/7 CARDS – Compatible with M.2 (NGFF) interface cards including: Intel AX210, AX211, AX200, AX201, 9260, 9560, 8260, 8265, 7260, 7265 Killer 1675x, 1650x, 1550, 1435, 1525, 1535 Broadcom NGFF series, Dell DW series Most M.2 WiFi 6/6E/7 cards with MHF4 connector
• 🔹 ⚠️ CRITICAL INSTALLATION TIPS – The MHF4 connector is very delicate and must be handled with care: Align straight (90°) over the port – do NOT insert at an angle Press straight down with light, even pressure until you feel a slight click DO NOT wiggle or pull by the wire – use tweezers to lift the connector housing straight up if disconnecting IMPORTANT: This antenna is for M.2 (NGFF) interface ONLY – will NOT work with Mini PCIe cards
• 🔹 KIT INCLUDES – 2x Tri-Band MHF4 (IPEX 4) Internal FPC Antennas (1x Gray/White Cable, 1x Black Cable)

Product Description

• Brand: TREADALT-TEC
