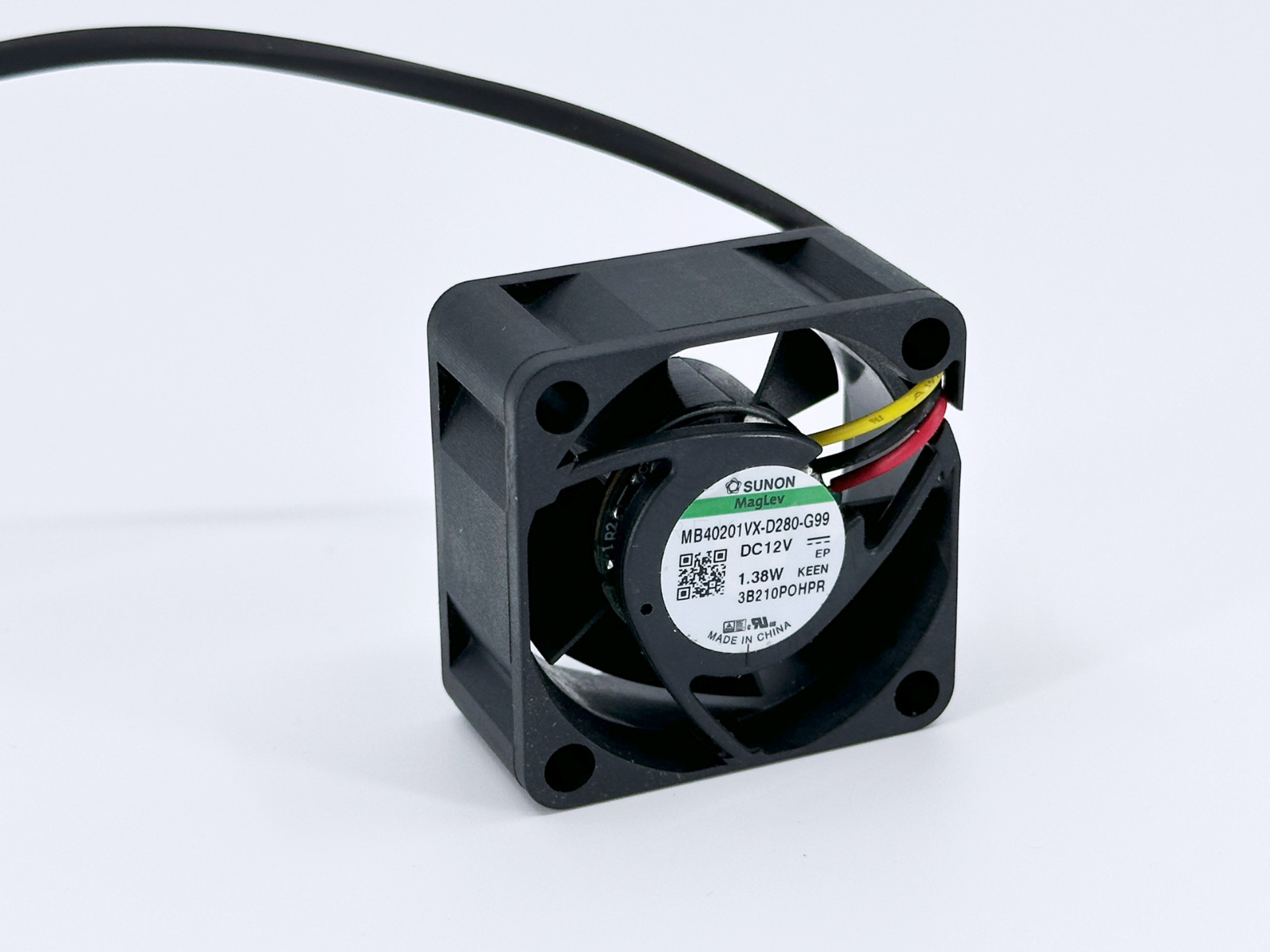

close 1X MB40201VX-D280-G99 SUNON MagLev DC Brushless Fan 40mm x 40mm x 20mm 12VDC Vapo Bearing Super High Speed Auto Restart & F type
Ready to Ship
Ask a Question
30-Day Return
- Description
- Specifications
- Shipping&Returns
- Disclaimer
1 Piece - MB40201VX-D280-G99 SUNON MagLev DC Brushless Fan 40mm x 40mm x 20mm 12VDC Vapo Bearing Super High Speed Auto Restart & F type
Important notice:
Please note that these fans only work with pure DC power and may not function correctly if the power source does not provide pure DC voltage.
FeatureWhat happens inside the fanWhy it mattersAutoRestartIf the rotor is physically blocked, the driver IC shuts off power after a short “lock” delay. Once the obstruction is cleared, the IC automatically re-energises the coils and the fan starts spinning again.Protects the winding & bearing from over-current/over-heat during a stall and requires no power-cycle from the host system.F-type output (Frequency Generator)A third wire (typically yellow) delivers a square-wave pulse whose frequency is proportional to RPM (e.g. 2 pulses per revolution on a 4-pole motor).Lets your controller, BIOS, or MCU read real-time speed, log failures, or close the loop with PWM control.
Note: This information may not be entirely accurate and should only be used as a general reference.
Specification Manufacturer Sunon Model MB40201VX-D280-G99 Frame Size 40 mm × 40 mm Fan Thickness 20 mm Bearing Type Vapo (MagLev) Rated Voltage 12 V DC Power Current 115 mA (Typ) Power Consumption 1.38 W (Typ) Speed 8 200 RPM (Typ) Airflow 10.8 CFM (Typ) Static Pressure 0.27 inch-H₂O (Typ) Noise Level 27.5 dBA (Typ) Function Code G99 — AutoRestart, FG Tach Lead Wires 3-wire, #26 AWG: Red(+), Black(–), Yellow(FG) Motor Family M-Series
Note: This table may not be entirely accurate and should only be used as a general reference.
