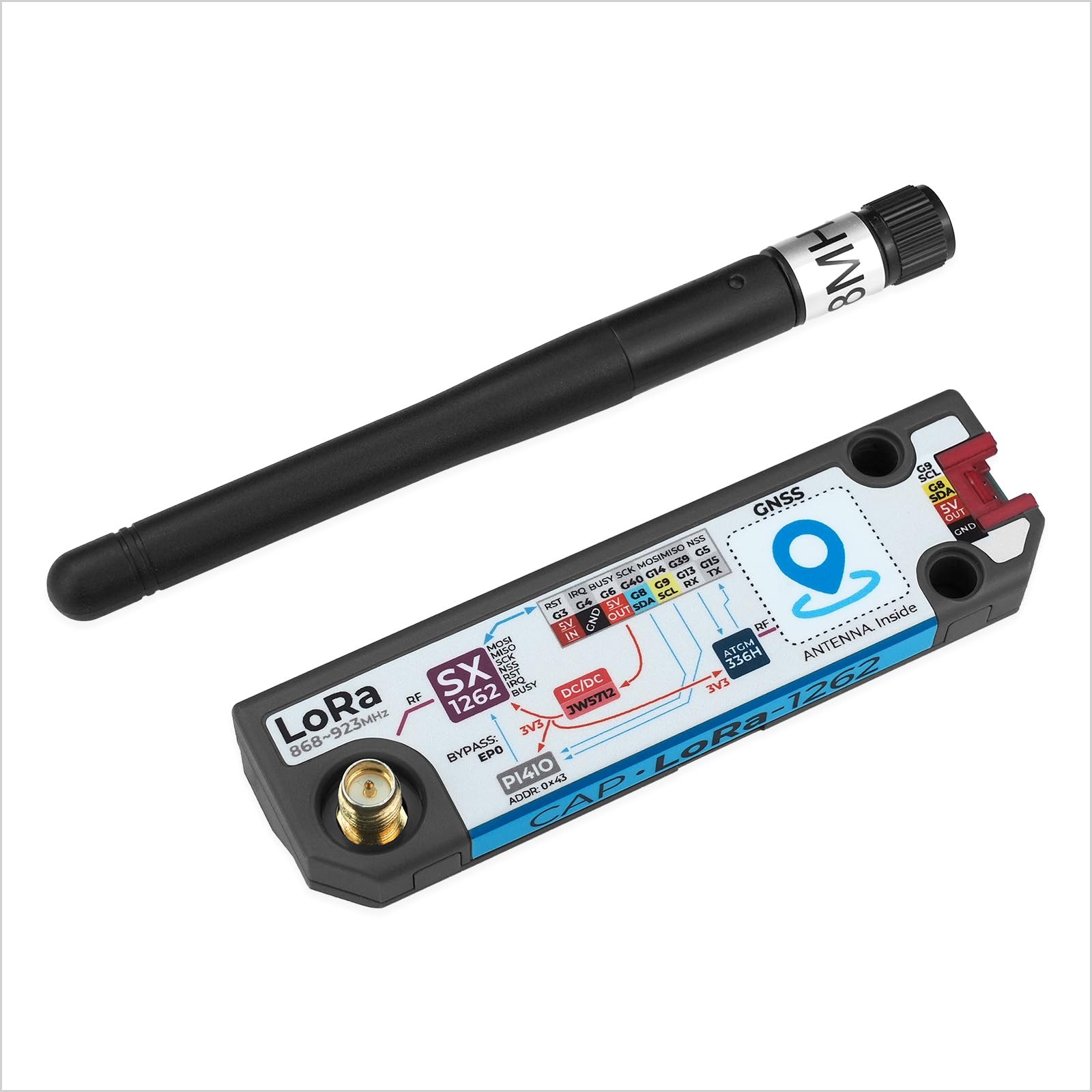

Cap LoRa-1262 is a high-performance communication expansion module that integrates LoRa communication and GNSS global positioning and navigation, designed for use with Cardputer-Adv. The module is equipped with an HY2.0-4P expansion interface, enabling stable connection and functional expansion with host devices. The LoRa module adopts a solution based on the SX1262 chip and is equipped by default with an external RP-SMA antenna. In addition, a shielding cover design is used to further enhance anti-interference capability and optimize overall performance, providing stronger interference resistance and long-range communication capability. It supports the 868MHz ~ 923MHz frequency band, delivering long-distance, low-power wireless links for Internet of Things (IoT) scenarios. The GPS module adopts a solution based on the AT6668 chip and features a built-in ceramic antenna, providing accurate and reliable satellite positioning services. It supports reception of multi-band and multi-constellation GNSS signals, and can receive signals from multiple satellite navigation systems, including GPS, BD2, BD3, GLONASS, GALILEO, and QZSS. It supports both multi-system combined positioning and single-system independent positioning, offering strong anti-interference capability and high positioning accuracy. Even in weak signal environments, it can quickly obtain higher-precision location information, making it suitable for applications such as remote data acquisition, smart cities, smart homes, vehicle positioning and navigation, and IoT device positioning.
LONG-RANGE LORA COMMUNICATION: SX1262 chip with -147 dBm sensitivity & +22 dBm TX power across 868~923 MHz – enables ultra-long-range, low-power wireless links ideal for remote IoT data acquisition.
MULTI-CONSTELLATION GNSS: AT6668 supports GPS, BD2, BD3, GLONASS, GALILEO & QZSS with
