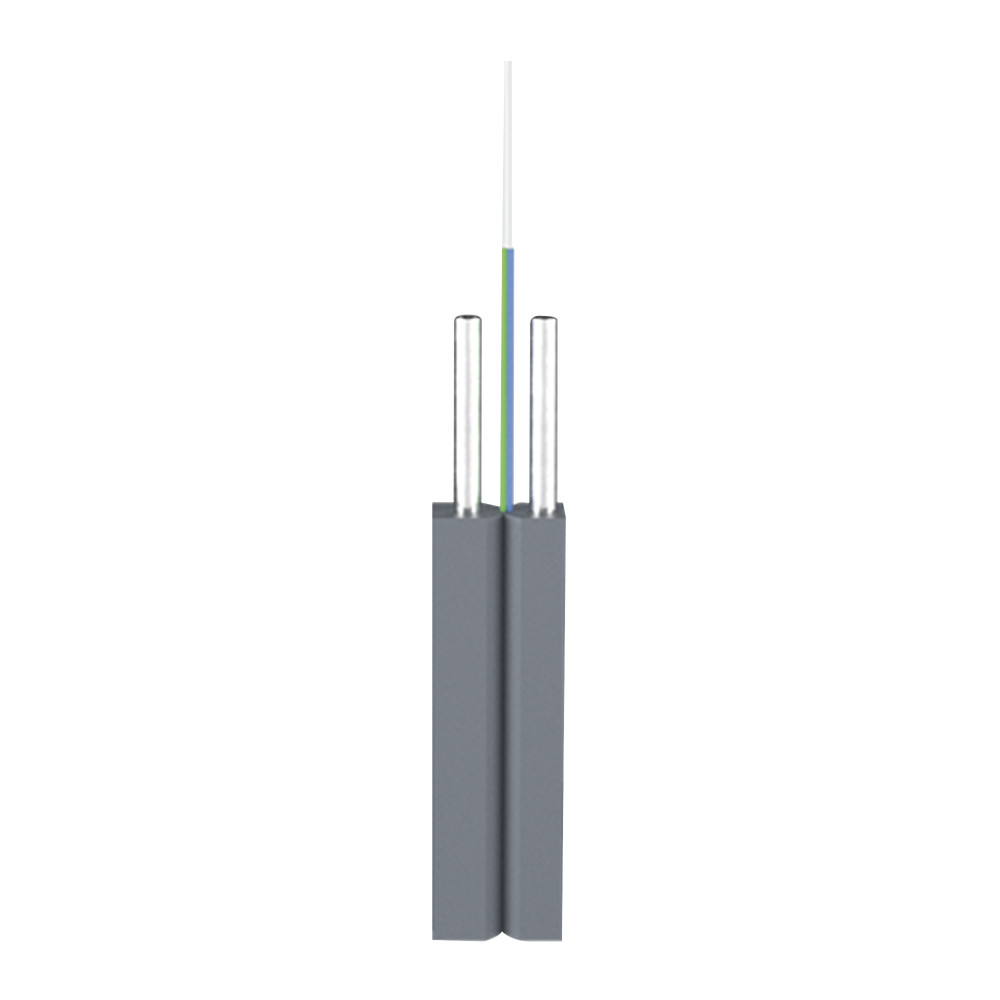

The optical fiber unit is positioned in the centre.Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides. Then, the cable is completed with a black LSZH sheath.

Features

• Special Low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.
• Two parallel FRP/strength members ensure good performance of crush resistance to protect the fiber
• Simple structure, light weight and high practicability
• Novel flute design, easily strip and splice, simplify the installation and maintenance
• Low smoke,zero halogen and flame retardant sheath
• "Easy-Pull" internal spin system, for easy deployment and retraction of excess cable.

Mechanical performance parameter.

• Fiber Count: 1
• Cable Diameter (mm): 2.0×3.0±0.2
• Cable Weight Kg/Km: 9.0
• Tensile Strength (Long/Short term N): 40/80

EASY- PULL

"Easy-Pull" internal spin system, for easy deployment and retraction of excess cable
