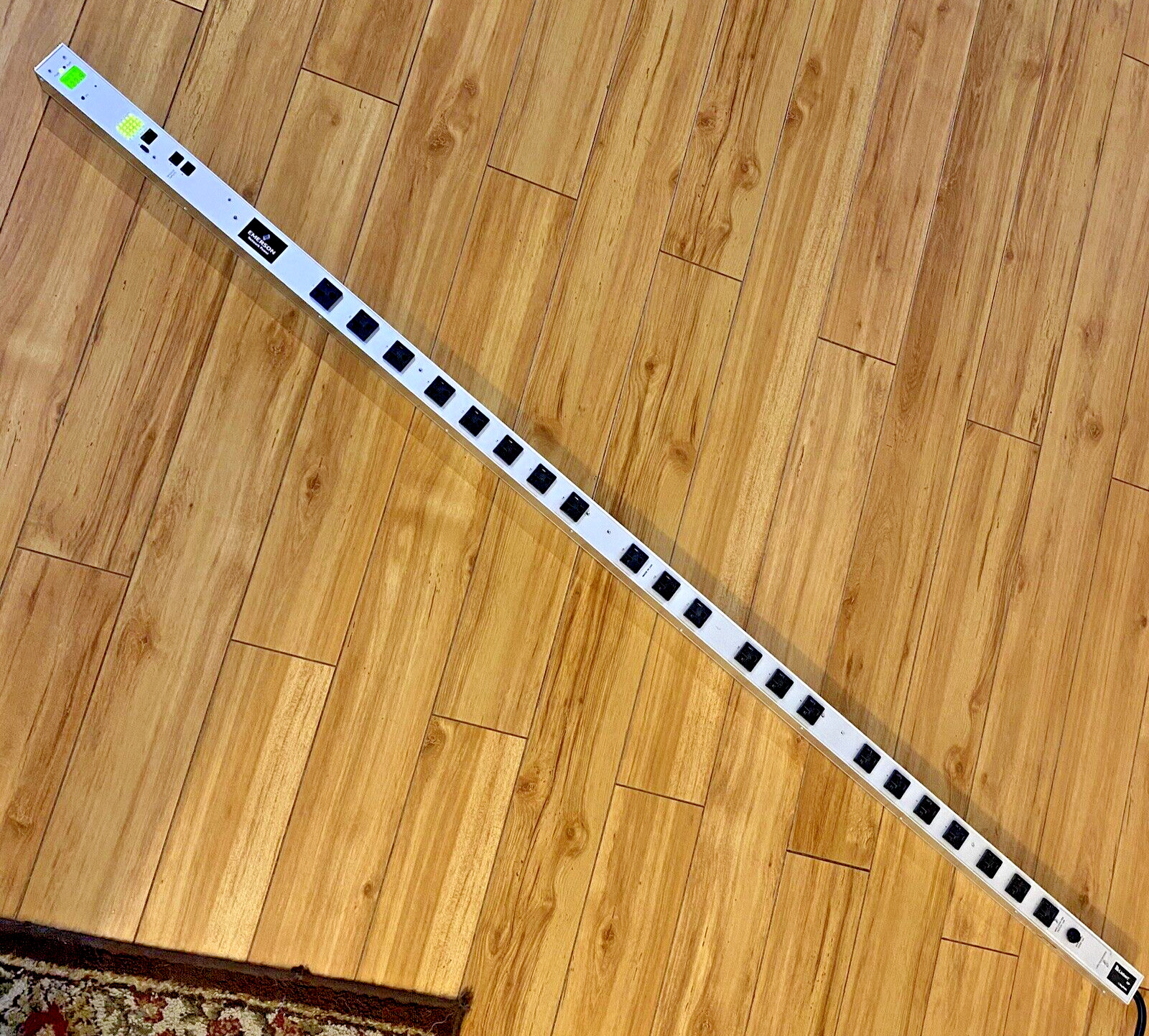

Liebert by BayTech Power Distribution Unit P/N: MP-C5148 21 Outlet Plug Strip Emerson Network Power
Excellent Used Condition Includes Plug Adapter to Make The Cord From Twist Lock To Standard 3 Prong U.S.A Plug. Tested Works Great. See Actual Photos Very Nice
The Liebert MP-C5148 is a 21 outlet Switched Rack PDU. Liebert MP advanced power strips are designed to distribute and manage power within network cabinets and server racks. Models are available with remote monitoring and/or control capabilities for power distribution at the load/equipment level.
Liebert MP Advanced Power Strips are offered in multiple configurations that provide a choice of capacities and number of receptacles, as well as monitoring and control capabilities to meet the power management requirements of any rack-mounted equipment. Liebert MP Advanced Power Strips monitor electrical attributes of an individual power strip, including real-time remote and local display of total strip true RMS volts, amps and watts.
Liebert MP-C Series controlled power strips provide the same remote monitoring capabilities as the MP-M Series with the addition of individual, remote receptacle on/off control and local display of powered receptacles
*Note:These PDUs contain (20) controllable outlets and (1) uncontrollable outlet.
Liebert MP-C5148 Features:
Flexibility:
Broad selection of products to support specific user needs.
Easy to use local status displays and remote monitoring and management.
Monitoring and control capabilities include SNMP support and e-mail alarm notification.
Higher Availability:
Higher reliability with PCB receptacle mount construction.
Load monitoring and control supports continuous uptime, minimizes disruptions.
Lowest Total Cost Of Ownership:
Lower cost of ownership via reduced maintenance, repair, and consolidated IP addressing.
Ideally Suited For:
Data centers
Network equipment
Telecommunications equipment
Any critical rackmount equipment that would benefit from centralized monitoring and control
Liebert MP-C51478 Specifications:
Mechanical
Height
68.25 in. (1734 mm.)
Width
1.95 in. (50 mm.)
Depth
1.72 in. (44 mm.)
Weight
12 lbs. (5.4 kg.)
Form Factor
Vertical
Color
Aluminum
Input
Phase
1
Current, Amps
20
Frequency, Hz
60
Voltage
120
Connections or Cord/Plug Type
L5-20P
(Locking Plug)
Output
Nominal Output Voltage
120V
Current, Amps
20
Panelboards or Receptacles
(21x) 5-15/20R (20x controlled & 1x non-controlled)
User Interface
Audible Alarms
Yes
LED's Indicators
Yes
Display Type
LCD
Environmental
Operating Temperature, Minimum °F (°C)
32°F (0°C)
Operating Temperature, Maximum °F (°C)
104°F (40°C)
Storage Temperature, Minimum °F (°C)
32°F (0°C)
Storage Temperature, Maximum °F (°C)
104°F (40°C)
ConformanceAgency ApprovalUL 60950; CSA C22.2 No.60950; CB Scheme Reports to IEC 60950 including participating country deviations
