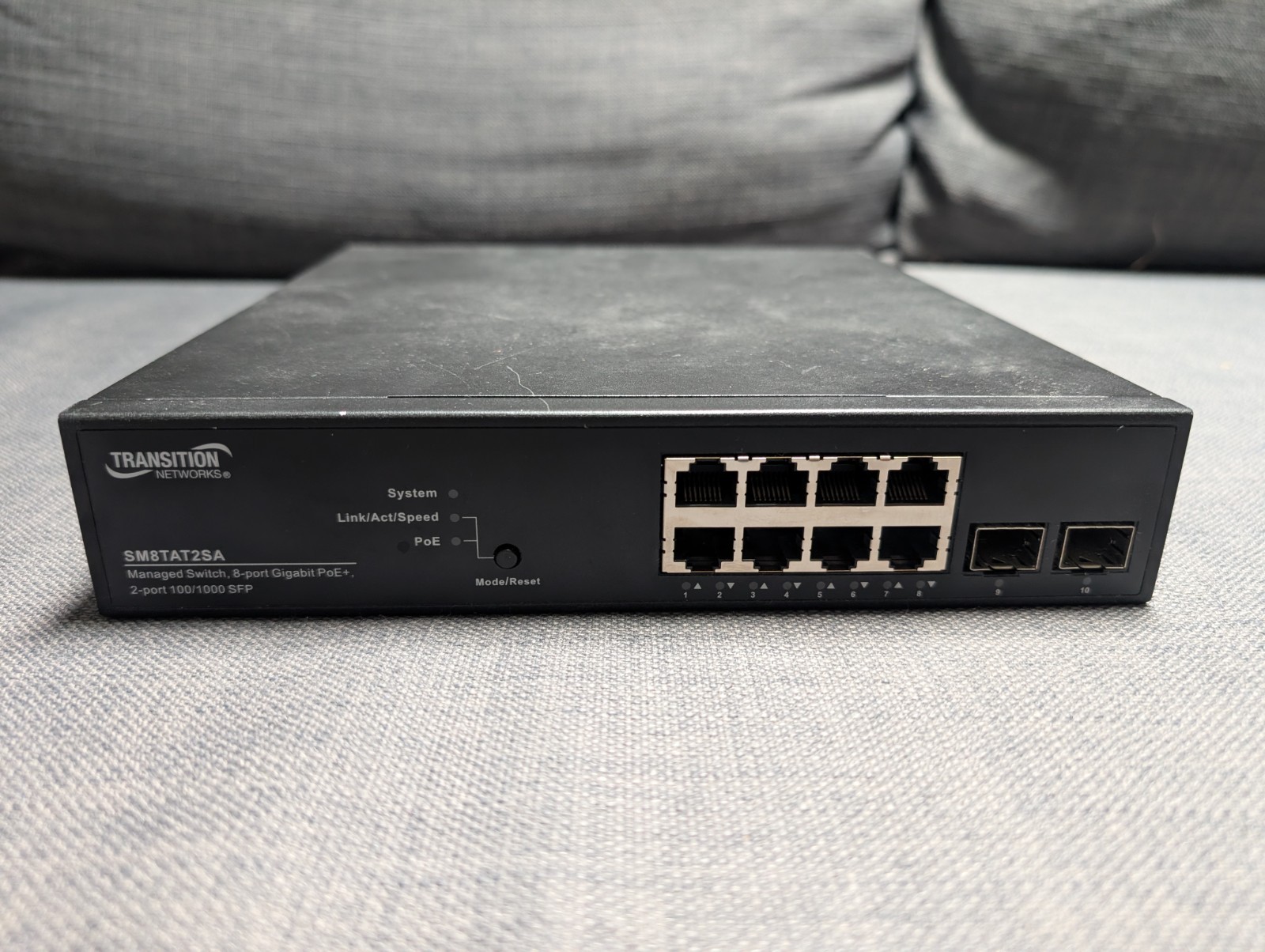

The Lantronix/Transition Networks SM8TAT2SA Managed 8-Port GB PoE+ switch is a high-quality Ethernet switch designed for enterprise networking. With Gigabit Ethernet technology and a maximum data transfer rate of 10 Gbps, this switch provides fast and reliable network connectivity. It features 8 wired Ethernet ports, 2 SFP interfaces, and a partially managed network management type. The smart managed model allows for easy configuration and monitoring, while the rack-mountable form factor makes it ideal for server rooms and other networking environments.
This Smart Managed PoE+ Switches come integrated with the Lantronix cloud based Percepxion™ software platform, providing comprehensive device life cycle management, enterprise application integration, and data analytics, all through a single pane of glass. These switches provide the benefits of ease of use in IP surveillance, Wireless Access Point and other applications.
The switch also includes DMS, accessible by Percepxion or the local web manager, provides advanced configuration and management of all IP addressable devices in the network, including a graphical network topology, floor map creator, device map view, traffic monitoring, and network diagnostics for troubleshooting.
FeaturesIPv6 Access ManagementSupport Jumbo Frame up to 9K bytesAuthentication – RADIUS, TACACS+DHCP Relay, DHCP Snooping, DHCP ServerL2/L3/L4 ACLs Support MAC ACL, IP standard/extended ACLLLDP (Link Layer Discovery Protocol)IEEE 802.3az Energy EfficiencyIP Source Guard, Port SecuritySyslogFan-less Design
PoE FeaturesCompliant with IEEE 802.3at PoE+Compliant with IEEE 802.3af PoEPoE configurationAuto Power Reset (APR)Always on PoE
Software FeaturesPercepxion IoT Edge Solutions PlatformDMS web manager for advanced configuration and managementManagement: Web Management, SNMP V1/V2c/V3, Telnet, CLIPort Trunk: Supports IEEE 802.3ad port trunk with link aggregation control protocol (LACP) and static trunkMulticast: Support IGMP Snooping V1/V2, MVR, MLD Snooping V1/V2Quality of Service: Supports 8 hardware queues. Strict priority and WRR, Ingress policer, Egress shaping and per port rate limitingSpanning Tree: Supports IEEE 802.1s MSTP, IEEE 802.1w RSTP and IEEE 802.1D STP CompliantVLAN: Port Based VLAN, IEEE 802.1Q tag-based, up to 4k VLAN entries, QinQ, MAC based VLAN, Private VLANFirmware Update through TFTP and HTTP
