Item Specifics

Brand: LSI Logic / Dell

Model: MegaRAID SAS 9260-8i

Assembly Part Number: L3-25121-74B

SAS Address: ⁠500605B004300520⁠

Serial Number: ⁠SV20902875⁠

Interface Class: SAS / SATA Hardware RAID Controller

Internal Ports: 2x SFF-8087 Mini-SAS Internal Connectors (Up to 8 SAS/SATA drives)

Host Interface: PCI Express 2.0 x8

Data Transfer Rate: 6Gb/s per port

Cache Memory: 512MB Onboard DDR2 Cache

RAID Levels Supported: RAID 0, 1, 5, 6, 10, 50, 60

Form Factor: Low Profile PCB with Standard / Full-Height Bracket Attached

Included Accessories: Mini-SAS (SFF-8087) to SATA/SAS Breakout Cable Assembly Included

Description

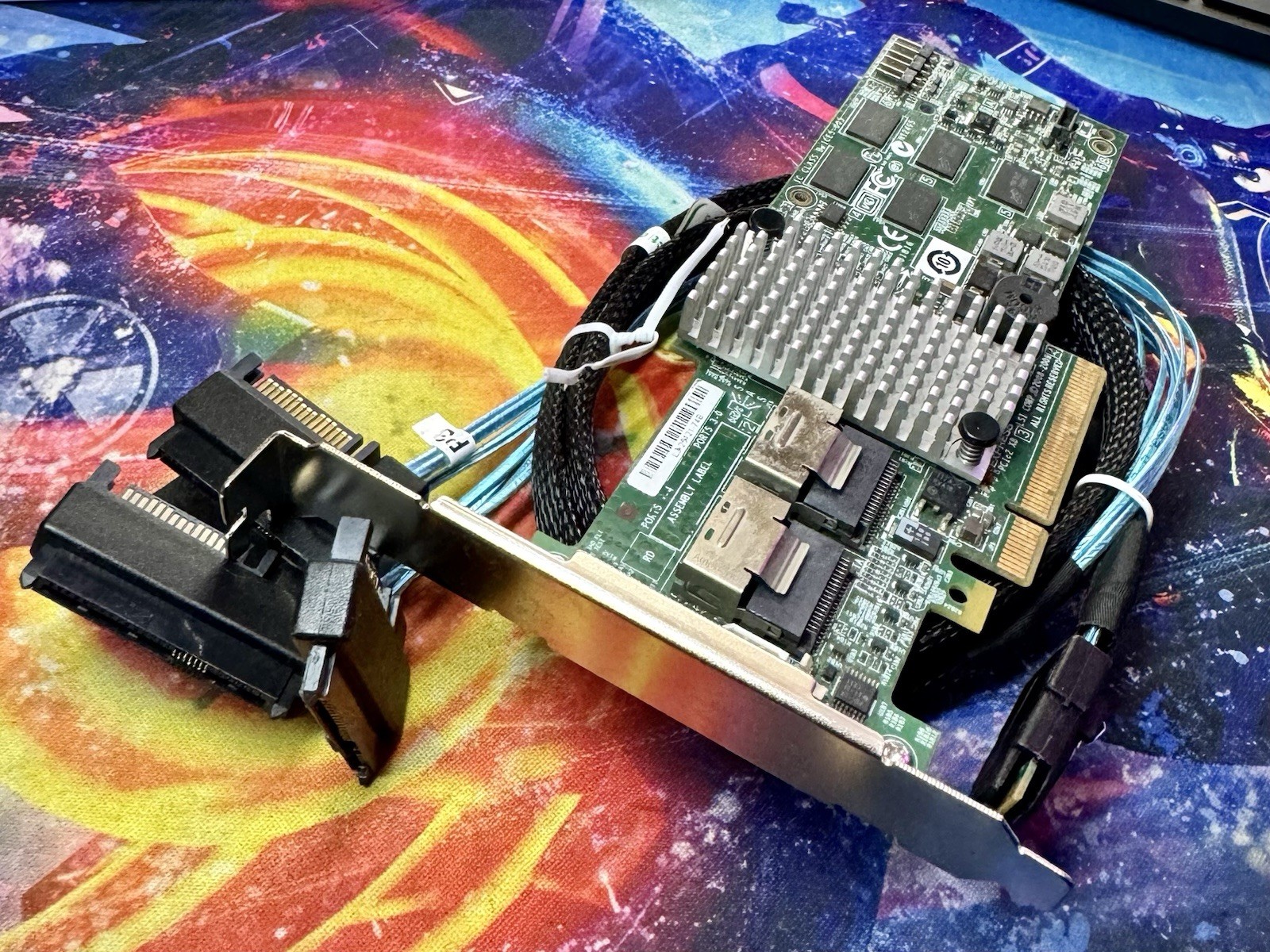

Up for sale is an LSI Logic MegaRAID SAS 9260-8i 8-Port 6Gb/s SAS/SATA PCIe RAID Controller Card (Assembly P/N: L3-25121-74B). This card features 512MB of onboard cache and comes bundled with a Mini-SAS breakout cable assembly.

Equipped with two SFF-8087 internal mini-SAS ports, this card supports up to 8 SAS or SATA hard drives/SSDs at 6Gb/s speeds. It is an ideal, high-performance card for servers, NAS builds, home labs, or JBOD array setups requiring hardware RAID capability.

Features & Technical Specifications:

Model: LSI MegaRAID SAS 9260-8i (Assembly P/N: L3-25121-74B)

PCIe Interface: PCI Express 2.0 x8

Internal Connectors: 2x SFF-8087 Mini-SAS ports (Supports up to 8 drives)

Transfer Speed: 6Gb/s SAS-2 / SATA III per port

Cache: 512MB Onboard DDR2

RAID Support: Hardware RAID 0, 1, 5, 6, 10, 50, 60

Bracket: Full-Height / Standard PCIe Bracket installed

Condition:

Pulled from a working environment.

PCB and heatsink are in clean physical condition with no missing components, bent pins, or thermal damage.
