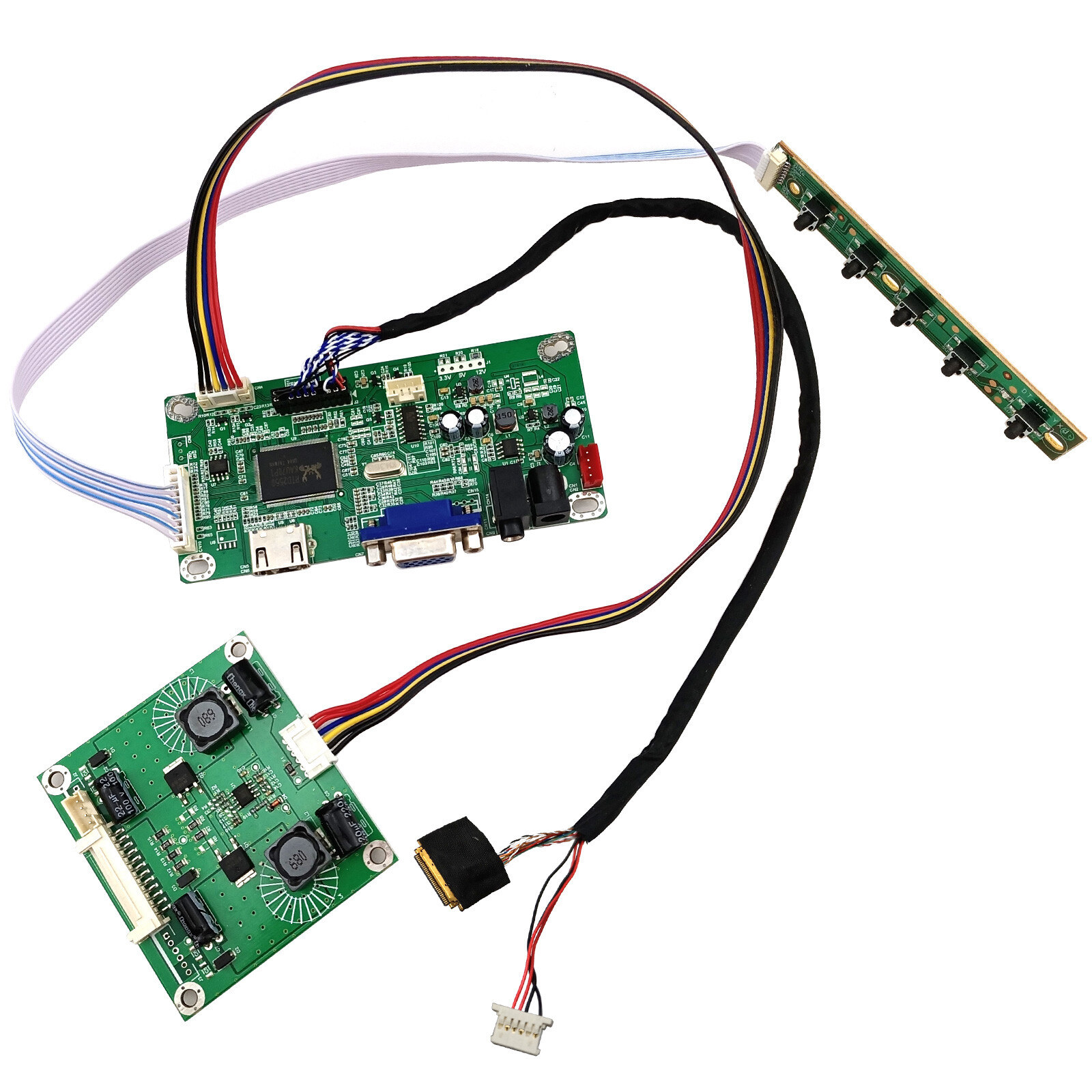

A great set of easy-reassembling LCD controller kit which is used to turn a bare i-mac 21.5" LCD panel into monitor. You will be a surprised that bare LCD will be in good use, and no longer be wasted. Important Note:

• This kit only for LM215WF3-SDC2
• Power input is12V 6A
• Video cable and Power adapter are NOT included
• We may update LCD controller board sometimes, they may not be same as the picture
• If you are have doubts in operation, please CONTACT US

Packing List (bulk pack):

• 1 x LCD controller kit

Features:

• This board has been widely used with drone, industrial display, medical display... etc
• HDMI/ VGA resolution 1920 x 1080
• 3.5mm jack audio input, ph2.0 4-pin internal speaker connector
• When it is in standby mode or no HDMI input, there will be no signal
• Support 40-pin eDP LCD model:LM215WF-SDC2
• Board size: 112 x 53mm (4.41 x 2.09 inch)
• Power input: 12V 6A (power adapter is NOT included)

Change Language:

1. Press "MENU" on the menu board
2. Press "DOWN" to select "OSD" then press "ENTER"
3. On the right option select the first option and press "ENTER"
4. Press "UP" or "DOWN" to select your language
5. Press "ENTER" to confirm and exit

Backlight Cable Connection:
