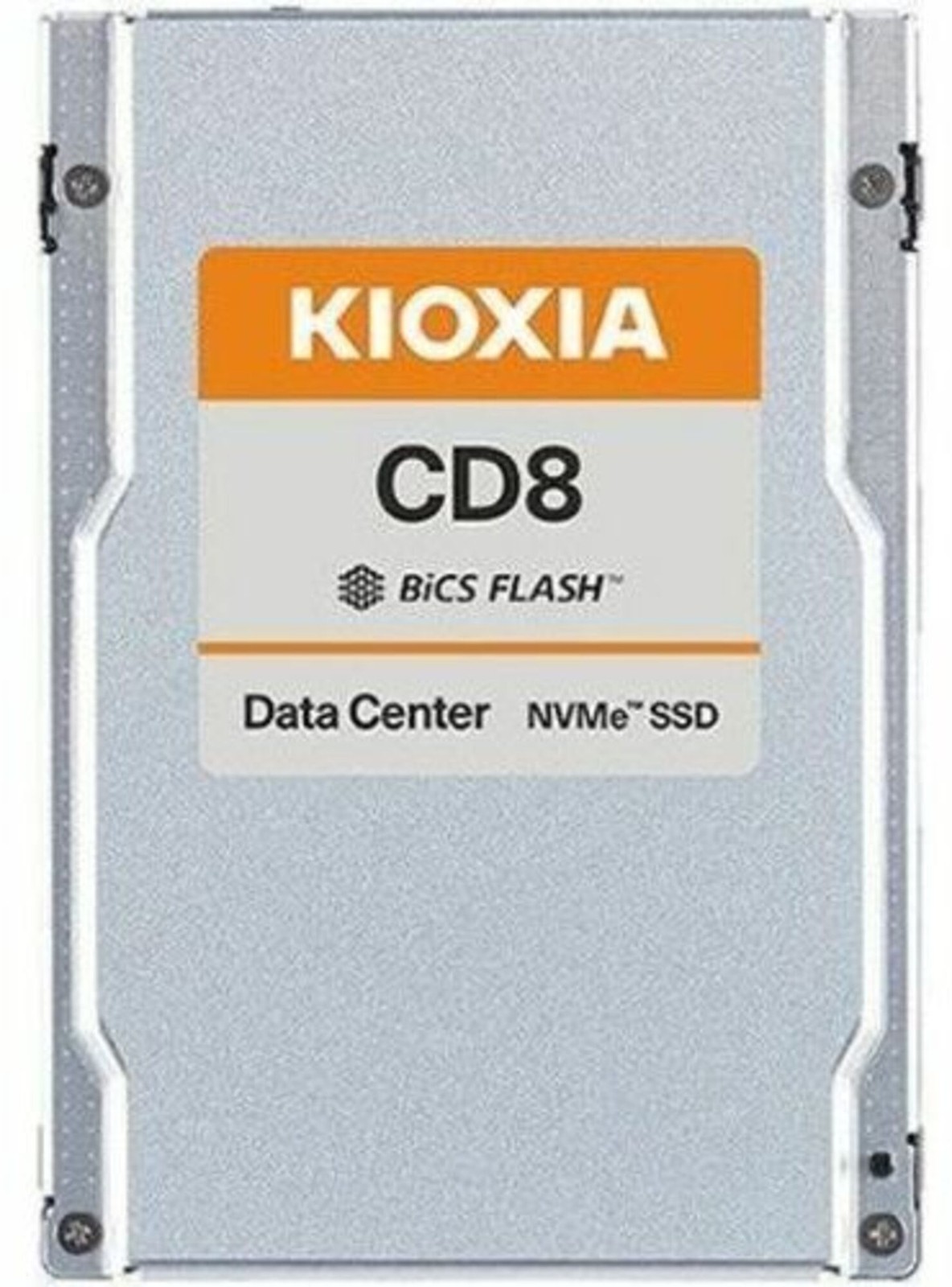

Image is an illustration, may not reflect the exact product sold. Kioxia America - KCD8XVUG3T20 - KIOXIA CD8-V KCD8XVUG3T20 3.13 TB Solid State Drive - 2.5 Internal - PCI Express NVMe 1963.26
KIOXIA CD8-V Series is a mixed use data center NVMe SSD that is optimized to support a broad range of scale-out and cloud applications, including big data/IoT, online transaction processing and virtualization. Built with a PCIe®4.0 (16 GT/s x4) interface, the CD8-V Series SSDs deliver consistent performance up to 1,250K IOPS (random read) and 380K IOPS (random write).
Featuring KIOXIA 112-layer BiCS FLASH 3D TLC flash memory, the CD8-V 2.5-inch form factor SSDs deliver 3 DWPD (Drive Writes Per Day) of endurance and storage capacities up to 12.8 TB in a 2.5-inch form factor, making them well-suited for hyperscale data center applications.
Key Features
- PCIe4.0, NVMe 1.4 specification compliant
- Open Compute Project Datacenter NVMe SSD specification v2.0 support (not all requirements)
- Form factor: 2.5-inch, 15mmthickness
- Proprietary KIOXIA architecture: controller, firmware and 112-layer BiCS FLASH 3D TLC
- Single-port design, optimized for data center class workloads
- Consistent performance and reliability for demanding 24x7 environments
- Designed for high-density storage deployments
- Power loss protection (PLP) and end-to-end data correction
- Security options: SIE, SED
Product Details Manufacturer Kioxia America Mfr Part KCD8XVUG3T20 Weight 1.0000 UPC
