These units arrive tested working with a 1 year hardware warranty.

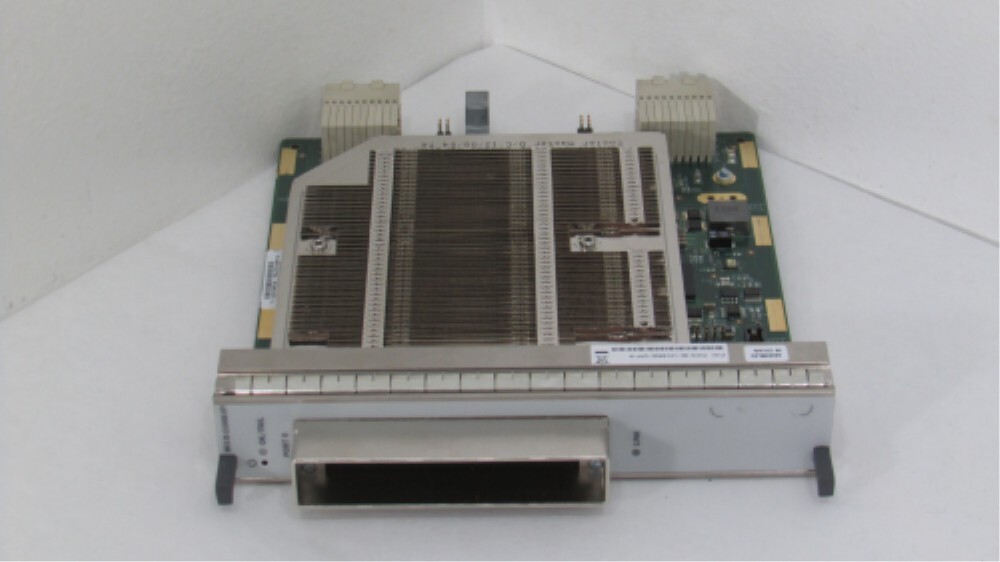

1x Juniper MIC3-3D-1x100GE-CFP -MIC with 1x100GE CFP interface, Optics sold separately.
HECI: COUIBA8BAA
PN: Ethernet MIC with CFPFigure 1:1-Port 100 Gigabit Ethernet MIC with CFP

Software release

• 12.1 and later

For information about which MPCs support this MIC, seeMIC/MPC Compatibility. For information about which MICs are supported on MX Series routers, seeMICs Supported by MX Series Routers.

Description

• One 100-Gigabit Ethernet port

• Power requirement: 0.83 A @ 48 V (40 W)

• Weight: 1.94 lb (0.88 kg)

• Model number: MIC3-3D-1X100GE-CFP

• Name in the CLI:1X100GE CFP

Hardware features

• High-performance throughput on each port at speeds up to 100 Gbps

• Up to 100-Gbps of full-duplex traffic

• Maximum transmission units (MTUs) of up to 9192 bytes

• The port is labeledPORT0

Software features

• Synchronous Ethernet support

• Optical diagnostics and related alarms

• Virtual Router Redundancy Protocol (VRRP) support

• IEEE 802.1Q virtual LANs (VLANs) support

• Remote monitoring (RMON) EtherStats

• Source MAC learning

• MAC accounting and policing—Dynamic local address learning of source MAC addresses

• Flexible Ethernet encapsulation

• Multiple tag protocol identifiers (TPID)

Cables and connectors

TIP:

You can use theHardware Compatibility Toolto find information about the pluggable transceivers supported on your Juniper Networks device.

The list of supported transceivers for the MX Series is located at[link removed by ].

NOTE:

The CFP-100GBASE-ER4 transceiver is NEBS-compliant in the 100-Gigabit Ethernet MIC with CFP, but only when the other MIC slot in the MPC3E is empty. If another MIC is present and the ambient temperature exceeds 40 degrees C, the software converts CFP-100GBASE-ER4 to low power mode, which takes the transceiver offline.

• Fiber-optic 100-Gigabit C form-factor Plugabble

  NOTE:

  The CFP-100GBASE-ZR transceiver is NEBS compliant in the 100-Gigabit Ethernet MIC with CFP, but only when the other MIC slot in the MPC3E is empty. If another MIC is present and the ambient air temperature exceeds 40degreesC, the software disables the transmitter, which takes the optical transceiver offline. The other MIC slot must be filled with a blank panel.

LEDs

OK/FAILLED, one bicolor:

• Green—MIC is functioning normally.

• Red—MIC has failed.

LINKLED, one green per port:

• Off—No link.

• On steadily—Link is up.

• Yellow—Link is disabled.
