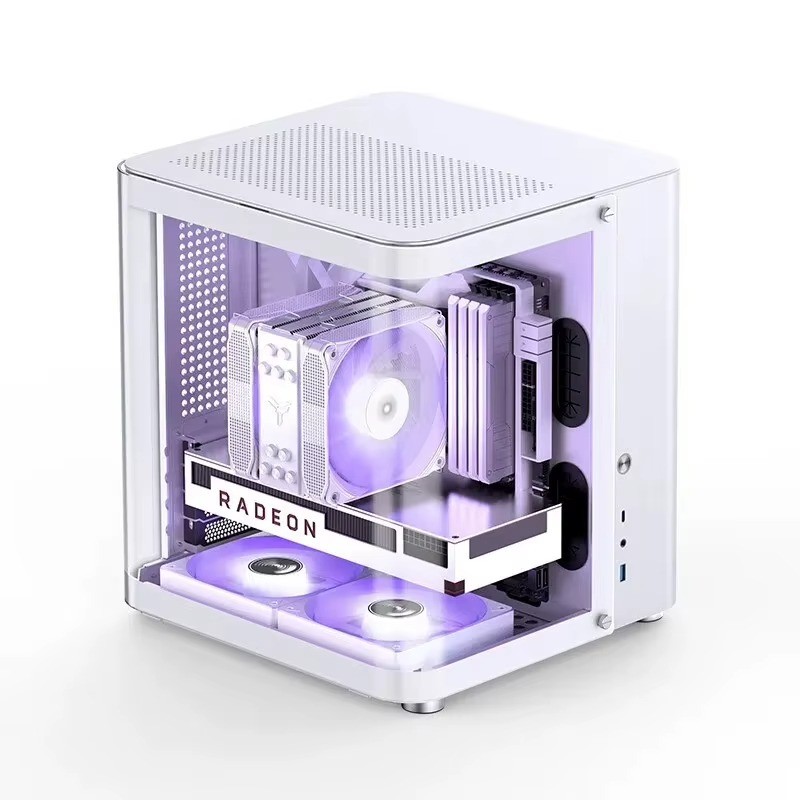

JONSBO TK-1 2.0 Mini PC Case

M-ATX/ITX Tempered Glass Case with 240mm Water Cooling Support 🖥️💧

Overview

The JONSBO TK-1 2.0 is a compact yet spacious M-ATX/ITX case featuring panoramic tempered glass panels for full build visibility. Built from 2.5mm aluminum alloy and 1mm steel, it offers strong support for high-end cooling and GPU setups in a small footprint.

Key Features🌊 Advanced Cooling Support

Fits up to a 240mm radiator on top or dual 120mm fans top and bottom, plus CPU coolers up to 165mm tall.

🎮 Large GPU Clearance

Supports graphics cards up to 280mm in length, ideal for high-performance builds.

🔌 Modern Front I/O

Includes USB 3.2 Gen2 Type-C, USB 3.0, and combo audio/mic jacks for easy front access.

💎 Full Glass Design

Curved tempered glass side and front panels showcase your build from nearly every angle.

Choosing Your Option

Both Black and White variations include the identical TK-1 2.0 case with full tempered glass panels, support for ITX/M-ATX motherboards, 240mm water cooling, and all listed drive bays and I/O ports. Only the exterior color differs.

SpecificationsModelTK-1 2.0Motherboard SupportITX / M-ATXCase Dimensions299mm (W) x 310mm (D) x 345mm (H)Material2.5mm Aluminum Alloy / 1mm Steel, Tempered GlassDrive Bays2x 3.5" HDD or 1x 2.5" SSD + 1x 3.5" HDDMax CPU Cooler Height165mmMax GPU Length280mmMax PSU Length200mm (ATX)Water Cooling SupportTop 240mm radiatorFan SupportTop 2x120mm, Bottom 2x120mmFront I/OUSB 3.2 Gen2 Type-C, USB 3.0, Audio/Mic ComboPCI Expansion Slots4Net Weight5.9kgProduct ImagesFAQDoes this case support M-ATX motherboards?

Yes, it supports both ITX and M-ATX motherboard form factors.

Can I install a 240mm radiator?

Yes, the top of the case supports a 240mm water cooling radiator.

What is the maximum GPU length supported?

Graphics cards up to 280mm in length will fit.

What color options are available?

This case is available in Black and White, both with identical specifications.
