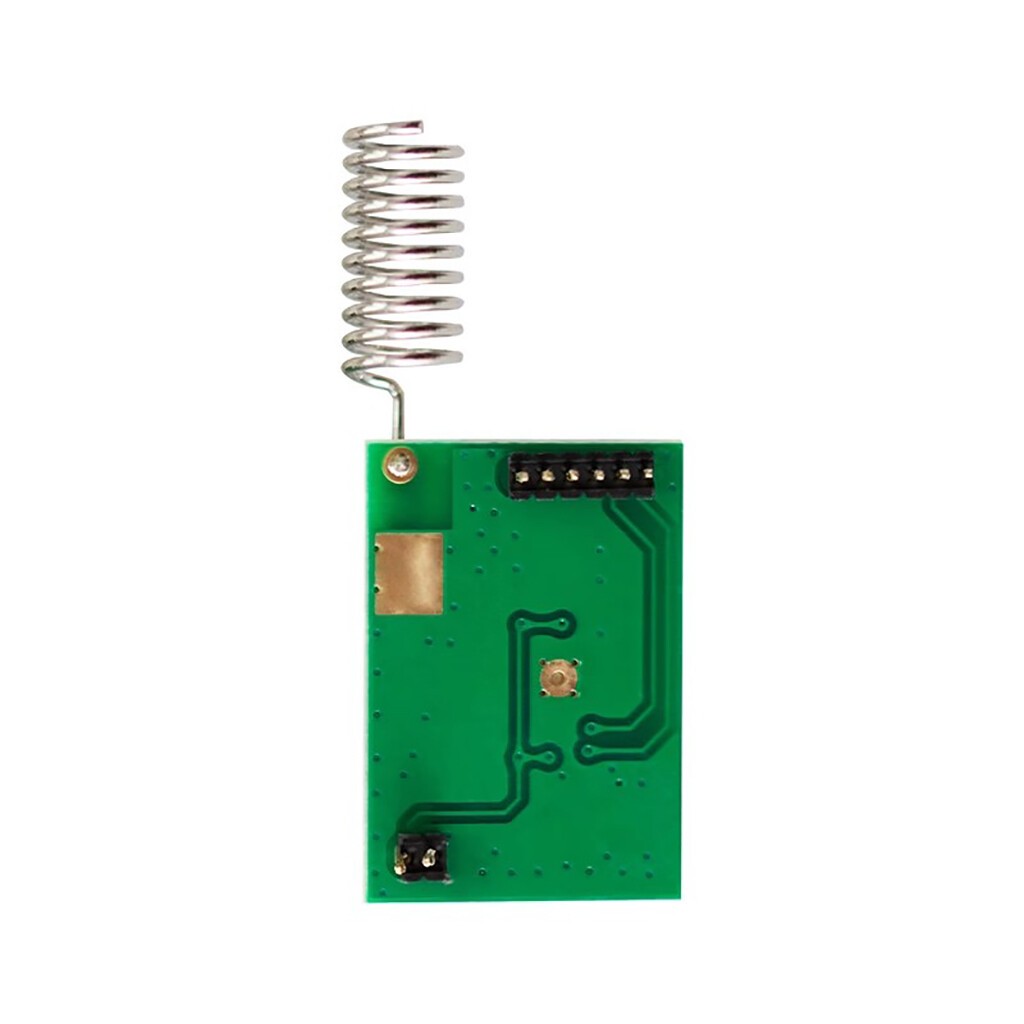

CC1101 Wireless Transceiver Module SPI Interface RF Communication Module 868MHz Band Wireless Digital RSSI Transmission Module

1.1 Brief introduction

CC1101TR8 is a RF module designed based on CC1101, a RF chip of Texas Instrumentsinthe United States.

CC1101 supports FSK, GFSK, MSK and ASK modulationmode.

It is very flexible and can be widely used in various wireless communication fields of The characteristics of modules

● Support 868MHz frequency band, strong penetration.

● Wireless rate: 1.2～500Kbps.

● Support FSK, GFSK, ASK, OOK, MSK modulation mode.

● The format of sending data packet is optional, and the length of data packet isadjustable.

● Support digital RSSI.

● Support Manchester coding.

● Small volume 23.4x16.3mm.

● SPI interface.

1.3 Application scenario

● Security system.

● Intelligent home.

● Industrial sensor.

● Medical and healthy care products.

● Remote controlled device.

● Automobile industry application.

● Wireless data transmission station.
