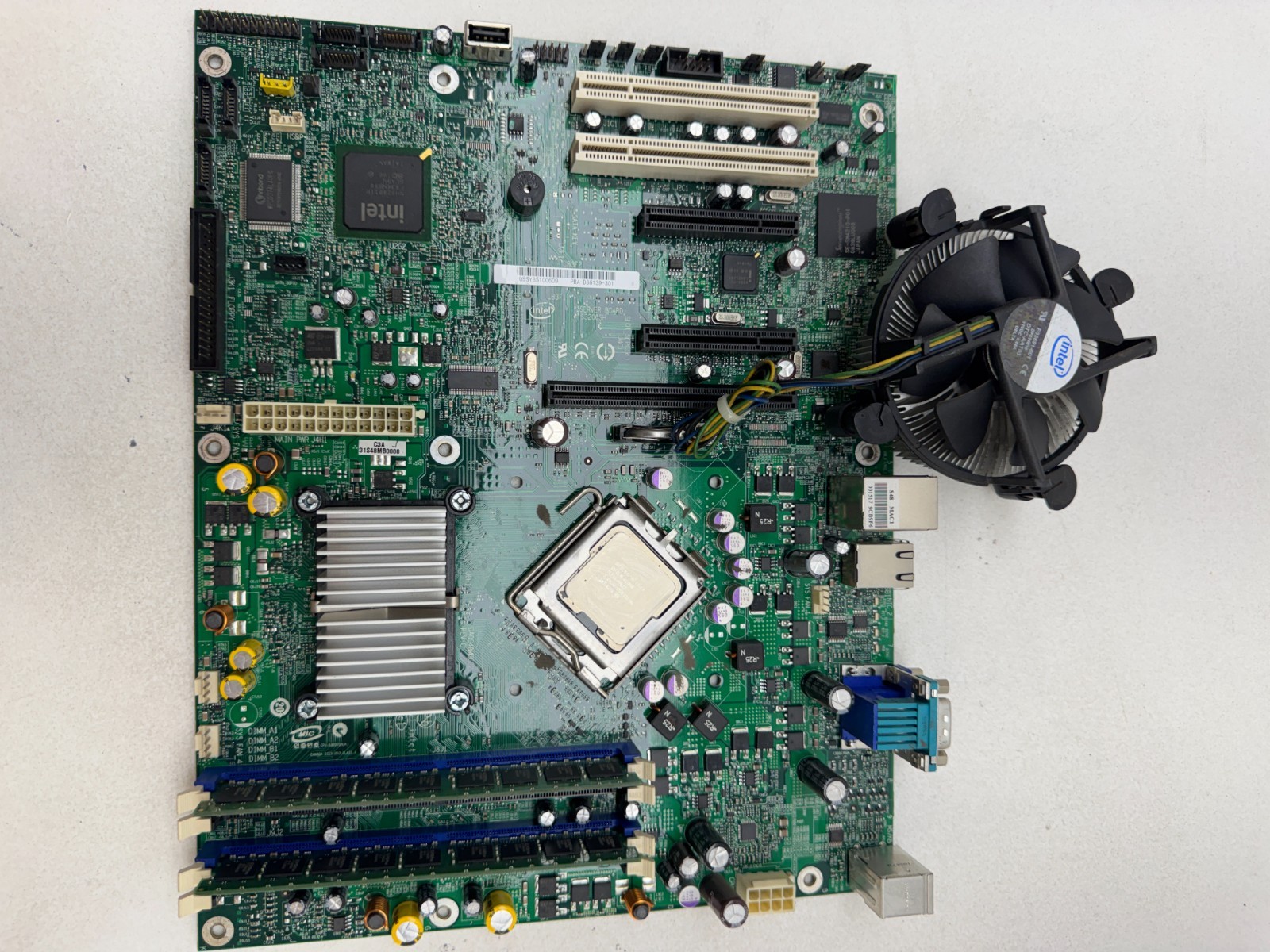

Intel Server Board S3200SH ATX Motherboard Combo - Intel Xeon E3110 3.00GHz CPU / 4GB DDR2 ECC RAM / Intel Cooler
Genuine Intel 5.25-inch server/workstation motherboard bundle built on the high-reliability Intel 3200 server chipset (LGA 775). Complete plug-and-play platform ready for industrial automation, legacy server replacement, home lab NAS setups, or retro computing projects.
Package Includes:1. Intel Server Board S3200SH Motherboard (PBA: D86139-301)2. Intel Xeon E3110 Dual-Core Processor (3.00GHz, 6MB L2 Cache, 1333MHz FSB, SLB9C)3. 4GB (2x 2GB) Kingston ValueRAM DDR2-800MHz ECC Unbuffered Memory (KVR800D2E5/2G)4. Intel OEM 4-Pin PWM Copper-Core CPU Heatsink & Delta Fan (E33681-001)* Note: Rear I/O metal shield plate, cables, and original box are NOT included.
Motherboard Technical Specifications:- Brand: Intel- Model: Server Board S3200SH- Part Number (PBA): D86139-301- Board Serial: QSSY85100609- Chipset: Intel 3200 MCH + ICH9R (NH82801IR)- CPU Socket: LGA 775 (Socket T) supporting Intel Xeon 3000 series, Core 2 Quad, Core 2 Duo- Form Factor: Standard ATX (12.0" x 9.6" / 30.5 cm x 24.4 cm)- Power Input: Standard 24-Pin Main ATX + 8-Pin 12V EPS Connector- Memory Architecture: 4x 240-Pin DDR2 DIMM Sockets, Dual-Channel, supports up to 8GB DDR2 667/800MHz ECC Unbuffered- Expansion Slots: * 1x PCI Express 1.0a x16 slot (x8 electrical routing) * 2x PCI Express x8 slots * 2x Legacy 32-bit / 33MHz PCI slots (5V white slots)- Storage Connectivity: * 6x SATA II 3.0 Gb/s ports (Intel ICH9R with RAID 0, 1, 5, 10 support) * 1x 34-pin Floppy disk drive connector- Onboard Graphics: ServerEngines SE-SM4210-P01 video controller with 32MB DDR memory (VGA output)- Networking: Dual Integrated Gigabit Ethernet LAN ports (Intel 82566DM and Intel 82541PI controllers)- Rear I/O Ports: 2x PS/2 (keyboard & mouse), 1x DB-9 RS-232 Serial COM port, 1x 15-pin VGA, 2x RJ-45 Gigabit Network jacks, 2x USB 2.0 ports
Processor Specifications:- Processor: Intel Xeon E3110 (SLB9C)- Cores / Threads: 2 / 2- Base Frequency: 3.00 GHz- Front Side Bus (FSB): 1333 MHz- L2 Cache: 6 MB- Lithography: 45 nm (Wolfdale core)- Thermal Design Power (TDP): 65W
Installed RAM Specifications:- Brand: Kingston ValueRAM (Elpida Chips)- Part Number: KVR800D2E5/2G- Total Capacity: 4 GB (Two matched 2GB modules)- Speed: DDR2 800 MHz (PC2-6400)- Error Checking: ECC Unbuffered (Non-Registered)- CAS Latency: CL5- Voltage: 1.8V
