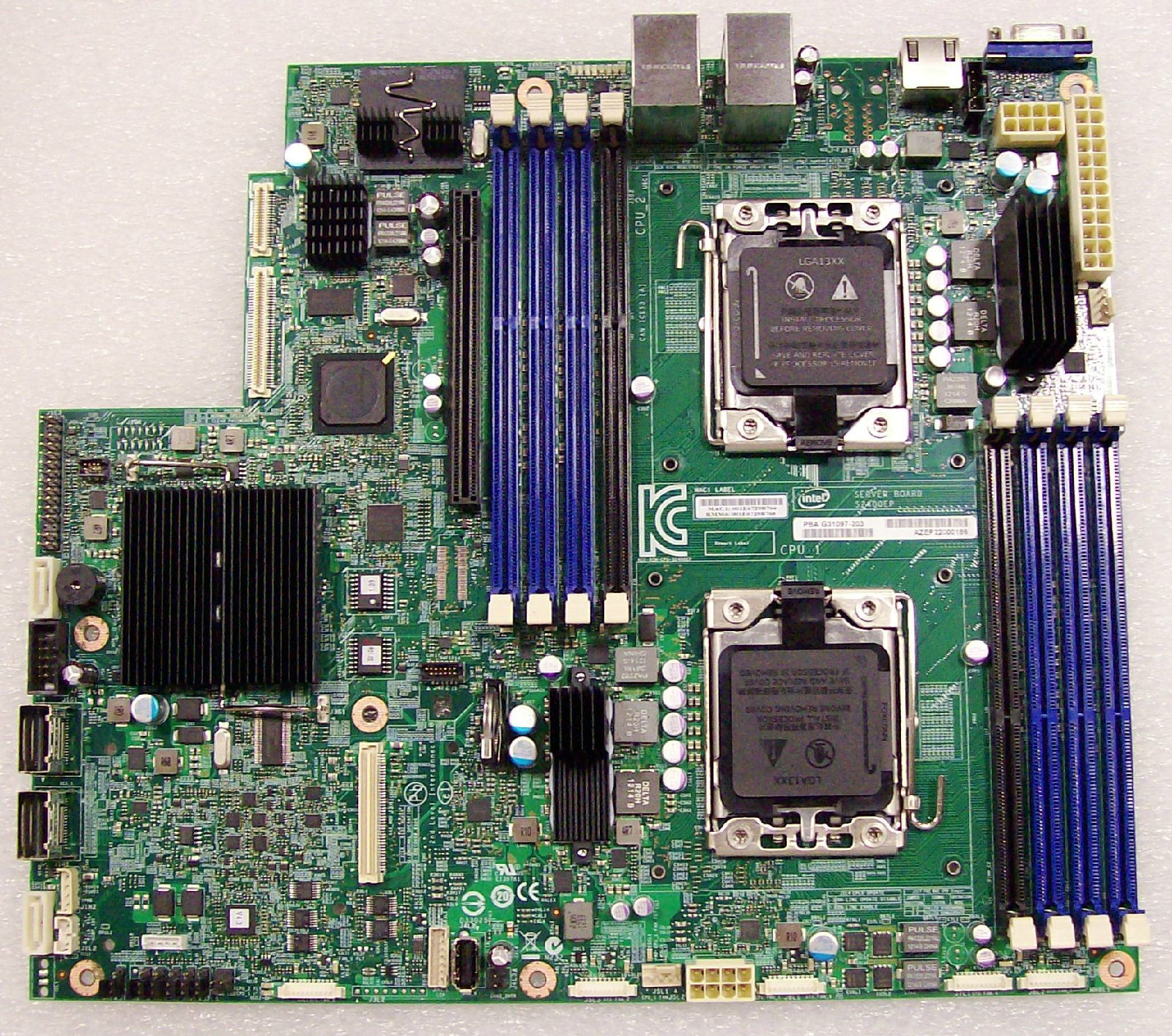

Intel S2400EP2 Server Board SSI CEB Socket B2 DDR3
Essentials
Status: Launched
Launch Date: Q2'12
Expected Discontinuance: Q2'17
# of QPI Links: 1
Board Form Factor: SSI CEB 12" x 10.5"
Chassis Form Factor: Rack
Socket: Socket B2
Integrated Systems Available: Yes
Integrated BMC with IPMI: IPMI 2.0
Rack-Friendly Board: Yes
Embedded Options Available: Yes
Max TDP: 95 W
Included Items: (1) General Purpose Intel Server Board S2400EP2
Description: Intel® Server Board S2400EP2 is an entry rack optimized server board supporting two E5-2400 CPUs, 8 DIMMs, Dual NICs, external I/O module and internal ROC module
Target Market: Embedded
Memory Specifications
Max Memory Size (dependent on memory type): 128 GB
Memory Types: DDR3 ECC UDIMM/LV 1333 1600, RDIMM 1066, RDIMM/LV 1333 1600
# of Memory Channels: 6
Max Memory Bandwidth: 614.4 GB/s
Physical Address Extensions: 46-bit
# of DIMMs: 8
ECC Memory Supported: Yes
Graphics Specifications
Integrated Graphics: Yes
Graphics Output: D-sub
Discrete Graphics: Supported
Expansion Options
PCI Express Revision: 3
PCIe x16 Gen 3: 1
IO Expansion x8 Gen 2.x: 1
Intel® IO Expansion Module PCIe x8 Gen 3: 1
I/O Specifications
USB Revision: USB 2.0
# of USB Ports: 4
USB 2.0 Configuration (Back + Internal): 7
Total # of SATA Ports: 2
RAID Configuration: SW Raid 0/1/10/5 (LSI + RSTE)
# of Serial Ports: 1
# of LAN Ports: 2
Integrated LAN: 2x 1GbE
Package Specifications
Max CPU Configuration: 2
Energy Star: Yes
Low Halogen Options Available: See MDDS
Advanced Technologies
Intel Virtualization Technology for Directed I/O (VT-d): Yes
Intel Trusted Execution Technology: Yes
AES New Instructions: Yes
Intel Remote Management Module Support: Yes
Intel Node Manager: Yes
TPM: Yes
Intel TPM Version: Intel® TPM Version 1.2
Intel Matrix Storage Technology: Yes
Intel Fast Memory Access: Yes
Intel Flex Memory Access: Yes
Intel I/O Acceleration Technology: Yes
Intel Advanced Management Technology: Yes
Intel Efficient Power Technology: Yes
Intel Quiet Thermal Technology: Yes
