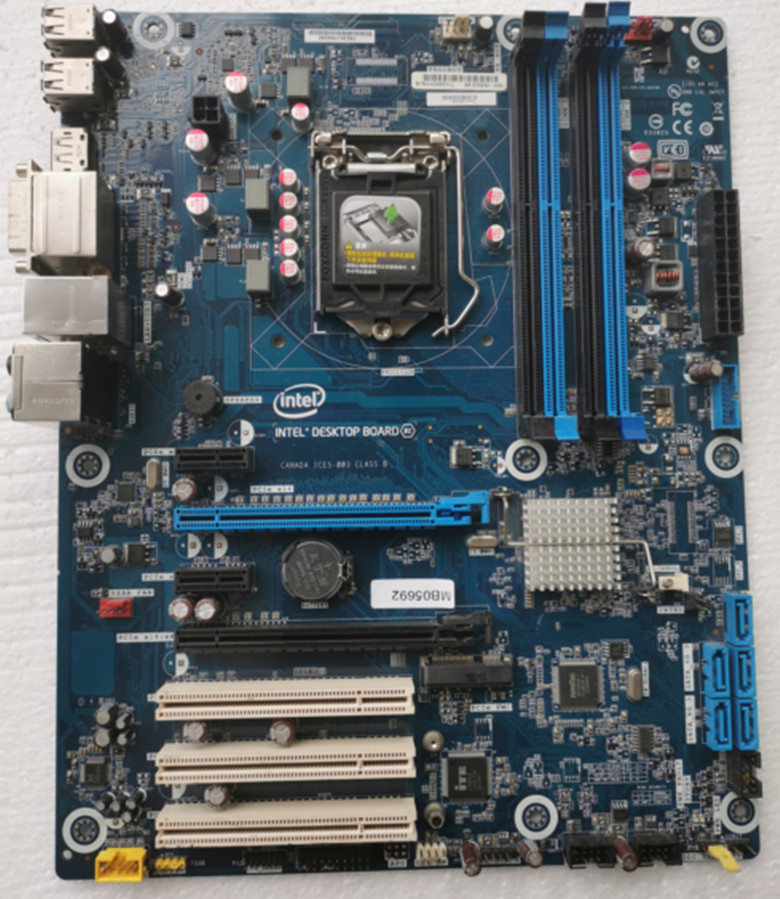

Product Description Intel DH87MC H87 Desktop Motherboard LGA 1150 ATX DDR3 Board USB 3.0 Intel DH87MC Official Specs (English)

Model: Intel Desktop Board DH87MCChipset: Intel® H87 ExpressSocket: LGA1150Form Factor: ATX (30.5 cm × 24.4 cm / 12.0" × 9.6")

CPU

• Socket: Intel LGA1150
• Supported CPUs: 4th Gen Intel® Core™ i7/i5/i3, Pentium®, Celeron® Processors (Max 95W TDP)
• Integrated graphics available only with CPUs equipped with Intel HD iGPU
• Check Intel official CPU support list for compatibility
• Support Intel Turbo Boost Technology

Memory

• 4 × DDR3 DIMM slots, Dual Channel
• Max Capacity: 32GB (8GB per DIMM)
• Memory Speed: DDR3 1600 /1333 MHz
• Support non-ECC Unbuffered DDR3; 1.5V standard & 1.35V low voltage DIMM
• No memory overclocking support

Expansion Slots

• 1 × PCIe 3.0 x16 slot
• 2 × PCIe 2.0 x1 slots
• 1 × Full/Half Mini PCIe slot (for Wi-Fi module, module not included)
• No PCI legacy slots

Storage

• 6 × SATA 6Gb/s ports
• RAID 0 / RAID1 / RAID5 / RAID10 (Intel Rapid Storage)
• NCQ, AHCI and Hot Plug support

Rear I/O Panel

• 1 × HDMI 1.4a port
• 1 × DVI-I port
• 1 × DisplayPort 1.2 port
• 2 × USB 3.0 Type‑A
• 4 × USB 2.0 Type‑A
• 1 × Gigabit RJ45 LAN port
• 3 × 3.5mm Audio jacks
• 1 × Optical S/PDIF out

Audio

• Audio Codec: Realtek ALC892 7.1+2 Channel HD Audio

Networking

• LAN: Intel Gigabit Ethernet (10/100/1000 Mbps)
• No onboard Wi-Fi & Bluetooth (Mini PCIe slot for wireless card)

Power Connectors

• 1 × 24-pin ATX main power
• 1 × 8-pin ATX 12V CPU power

Internal Headers

• 2 × USB3.0 headers (extra 4×USB3.0)
• 2 × USB2.0 headers (extra 4×USB2.0)
• CPU fan header, System fan headers
• Front panel audio header
• S/PDIF out header
• TPM header

Features

• Supports triple display output (HDMI+DVI+DP)
• Supports Windows 7 / Windows 8 / Windows 10 64-bit
