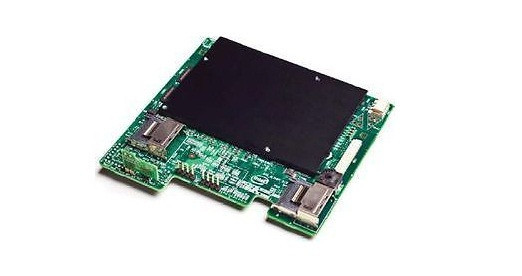

Intel AXXRMS2MH080 Integrated Server RAID Module

New Bulk Box

Product Specifications:

The Intel® Integrated Server RAID Module RMS2MH080 (AXXRMS2MH080), powered by LSI MegaRAID* technology, offers intelligent RAID protection for servers using SAS or SATA hard drives. Designed specifically for selected Intel® Server Boards, this SAS/SATA RAID module communicates with the host system through a custom board-to-board PCIe 2.0 interface. With the popularity of rack-dense 1U and 2U servers increasing, this design allows system builders to easily implement a robust RAID solution without sacrificing a valuable riser-card slot or using a chassis with low-profile add-in card cut-outs.

Essentials

Status

Launched

Launch Date

Q1 '10

Expected Discontinuance

Q4'12

Description

6G SAS/SATA HWRAID Module with 8 ports

Target Market

Mainstream

Board Form Factor

1U Capable Module

Data Transfer Rate

6 Gb/s

Supported Devices

SAS/SATA Devices

Compatible Battery Backup Options

AXXRSBBU7 or AXXRSBBU8

RAID Level Supported

0,1,5,6,10,50,60

# of Ports Internal

8

# of Devices Supported

32

Embedded Memory

512MB

PCIe Host Interface

Integrated I/O Expansion

IO Processor Model

LSI2108
