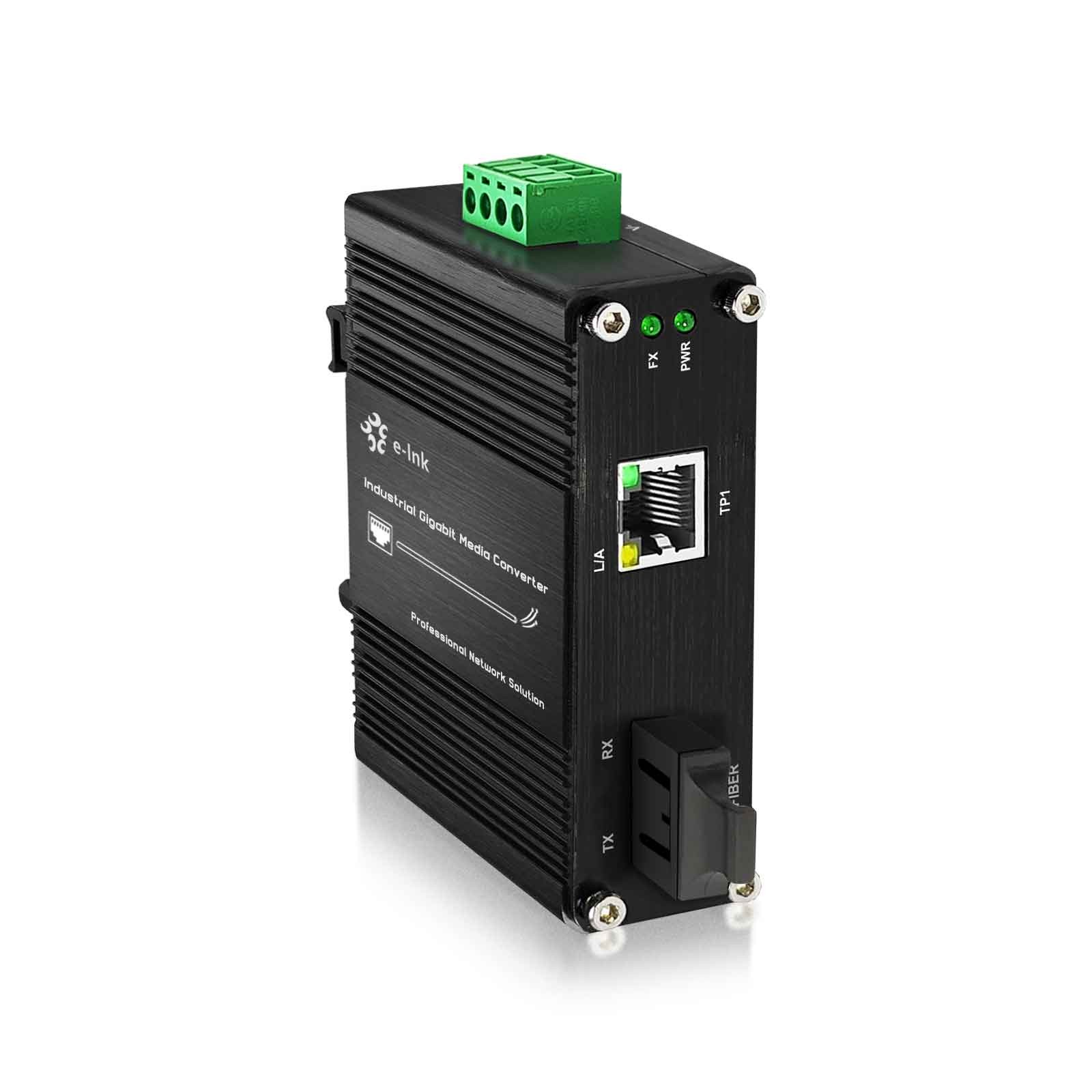

Industrial Gigabit Fiber Media Converter 10/100/1000Mbps IEEE802.3at 1×RJ45+1×SCOverview
The LNK-IMC3012 Series provides media conversion between 10/100/1000BASE-T and 1000BASE-X Fiber. Fiber Media Converter is a hardened product with wide operating temperature range from -40°C to 75°C, and ruggedized aluminum housing. The Ethernet port supports both half-duplex and full-duplex mode. The rugged hardware design ensures that your Ethernet equipment can withstand demanding industrial conditions. The LNK-IMC3012 Series are easy to mount on a DIN rail or in distribution boxes. This Fiber Media Converter supports both 100M and 1000M on fiber port, that makes it compatible with more devices.
- 1-Port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
- 1 SC Port, 1000Base-X Fiber Media Converter
- Supports Full/Half-duplex, Auto-negotiation
- IEEE 802.3az Energy Efficient Ethernet (EEE)
- Extensive LED indicators for network diagnostics
- 12~48VDC Terminal Block Power Input
- Supports DIN-Rail & Wall-mount installation
- Environmentally hardened -40°C to 75°C(-40°F to 167°F) operating temperature
Application
Industrial Automation– Connect controllers, sensors, and industrial devices over fiber.
IP Surveillance– Extend network connectivity to IP cameras over long distances.
Transportation & Traffic– Fiber connectivity for roadside cameras and traffic monitoring.
Energy & Utilities– Remote monitoring points and substations connectivity.
Enterprise Networking– Flexible network extension for offices, factories, or campuses.
Package does not include power supply
Default send LNK-IMC3012-20 single mode dual fiber 20km option, if you need other options please contact customer service, thanks for your cooperation!
Fiber Media Converter Technical IndexesEthernetStandards:IEEE802.3 10Base-TIEEE802.3u100Base-TXIEEE802.3ab 1000Base-TIEEE802.3z 1000Base-XIEEE 802.3az Energy Efficient Ethernet (EEE)Processing Type:Store-and-ForwardForward Filter Rate:14,880pps (10Mbps)148,800pps (100Mbps)1,488,000pps (1000Mbps)Packet Buffer Memory:1 MbitMaxPacket Length:9K BytesAddress Table Size2K MAC AddressesInterfaceConnector:1x RJ45Optical Port:1 x SC 1000Base-XElectrical and MechanicalInput Power:12~48VDC, 4-pin terminal blockPower Consumption:3W Max.LED Indicators:PWR:Power StatusL/A:Data LINK StatusSPD:Ethernet Status100M/1000M:Fiber LINKStatusDimensions (WxDxH):95x 70 x Options:DIN-Rail / Wall-mountEnvironmentalOperating Temperature:-40°C to 75°C (-40°F to 167°F)Storage Temperature:-40°C to 85°C (-40°F to 185°F)Relative Humidity:5% to 95% non-condensingMTBF> 200,000 hrsRegulatory ApprovalsISO9001, CE, FCC, RoHS
EMI:
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EMS:
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 usPaymentWe accept
