Industrial Gigabit Fiber Converter, 1 Fiber, 2 Gigabit Ethernet, Dual Power
Price: CN $206.63

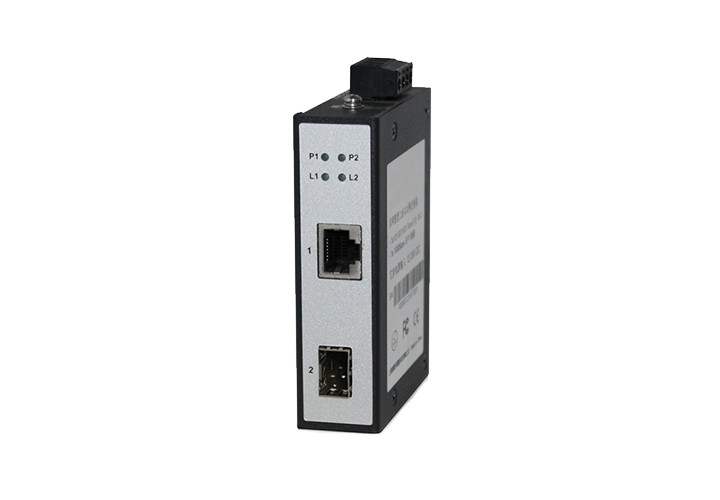

Industrial Gigabit Fiber Converter - LS1203T-GS-2GT-LV

Features:

  • Provides 1 Gigabit fiber port and 2 Gigabit Ethernet ports
  • Flexible fiber interface options: LC/SC/ST/FC
  • Plug and play for easy installation
  • IP40 protection, fanless design for silent operation
  • Industrial-grade power design with dual DC input (12~48V)
  • Operating temperature: -40℃ to 75℃

Technical Specifications:

  • Ethernet Standards: IEEE 802.3i/802.3u/802.3z/802.3ab
  • MAC Address Table: 2K
  • Priority Queues: 8
  • Jumbo Frame: 9216 bytes
  • Switching Method: Store-and-Forward
  • Switching Delay: <10μs
  • Backplane Bandwidth: 8Gbps

Mechanical:

  • Dimensions (W x H x D): 26 x 95 x 70 mm
  • Housing: Metal
  • Cooling: Fanless, natural convection
  • Mounting: DIN rail (wall-mount optional)
  • Weight: ≤1kg

Environmental:

  • Storage Temperature: -40~85℃
  • Operating Temperature: -40~75℃
  • Operating Humidity: 5%~95% non-condensing

Certifications:

  • EMI: FCC Part 15, CISPR (EN55022) class A
  • EMS: EN61000-4-2/3/4/5/6
  • IEC: Shock IEC60068-2-27, Drop IEC60068-2-32, Vibration IEC60068-2-6
  • Safety: EN 62368-1 (2LV)

Warranty: 5 Years
