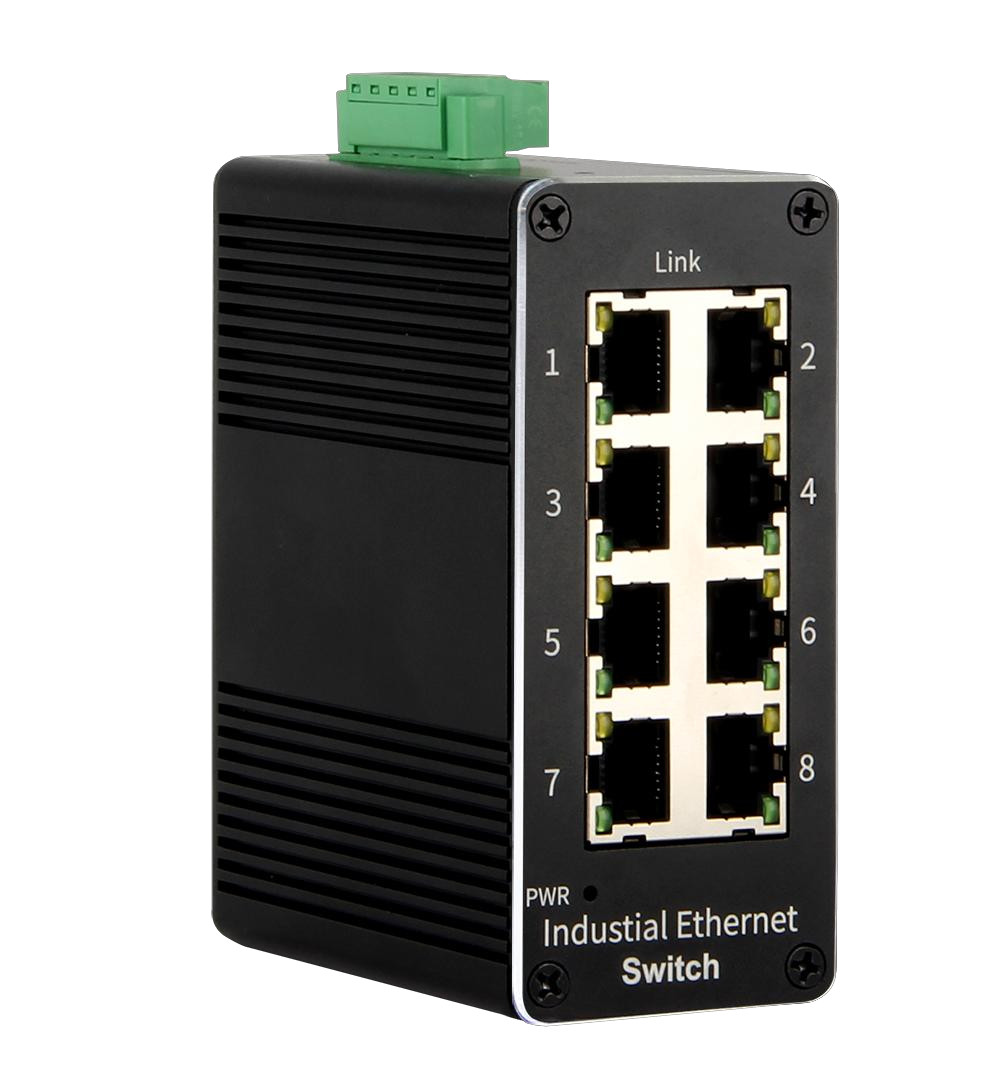

LXS3208-8T Industrial 8-Port Unmanaged Ethernet Switch
The LXS3208-8T is a rugged industrial 8-port Fast Ethernet switch designed for harsh environments. It provides 8 × 10/100Base-TX RJ45 ports for reliable wired network connections. Featuring an IP40 wave-shaped aluminum alloy enclosure, fanless design, and wide temperature operation, it is suitable for point-to-point, star, tree, or daisy-chain network topologies in industrial applications.
Key Features
- 8 × 10/100Mbps RJ45 Ethernet ports, unmanaged
- Fanless wave-shaped aluminum alloy enclosure with IP40 protection
- DIN rail mounting (DIN35), push/pull installation supported
- Wide operating temperature: -40°C to 75°C (-40°F to 167°F)
- Dual power input DC 9~52V with redundancy and reverse polarity protection
- High EMC and surge protection on ports and power input
- Plug-and-play operation, no configuration required
Technical Specifications Model LXS3208-8T Ports 8 × 10/100Mbps RJ45 Network Standards IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x Switching Method Store-and-forward MAC Address Table 2K Buffer 1 Mbit Backplane Bandwidth 1 Gbps Power Supply DC 9~52V, dual redundant inputs, reverse polarity protection Operating Temp -40°C to 75°C (-40°F to 167°F) Storage Temp -40°C to 85°C (-40°F to 185°F) Humidity 5% – 95% (non-condensing) Enclosure Wave-shaped aluminum alloy, IP40 Mounting DIN35 rail, push/pull installation Dimensions (L×W×H) 100 × 84 × 44 mm Weight 0.4 kg Applications
- Industrial automation networks
- Point-to-point, star, tree, or daisy-chain networks
- IP cameras, sensors, and industrial control equipment
- Harsh or wide temperature industrial environments
Package Contents
- 1 × LXS3208-8T Industrial 8-Port Ethernet Switch (DC power not included)
