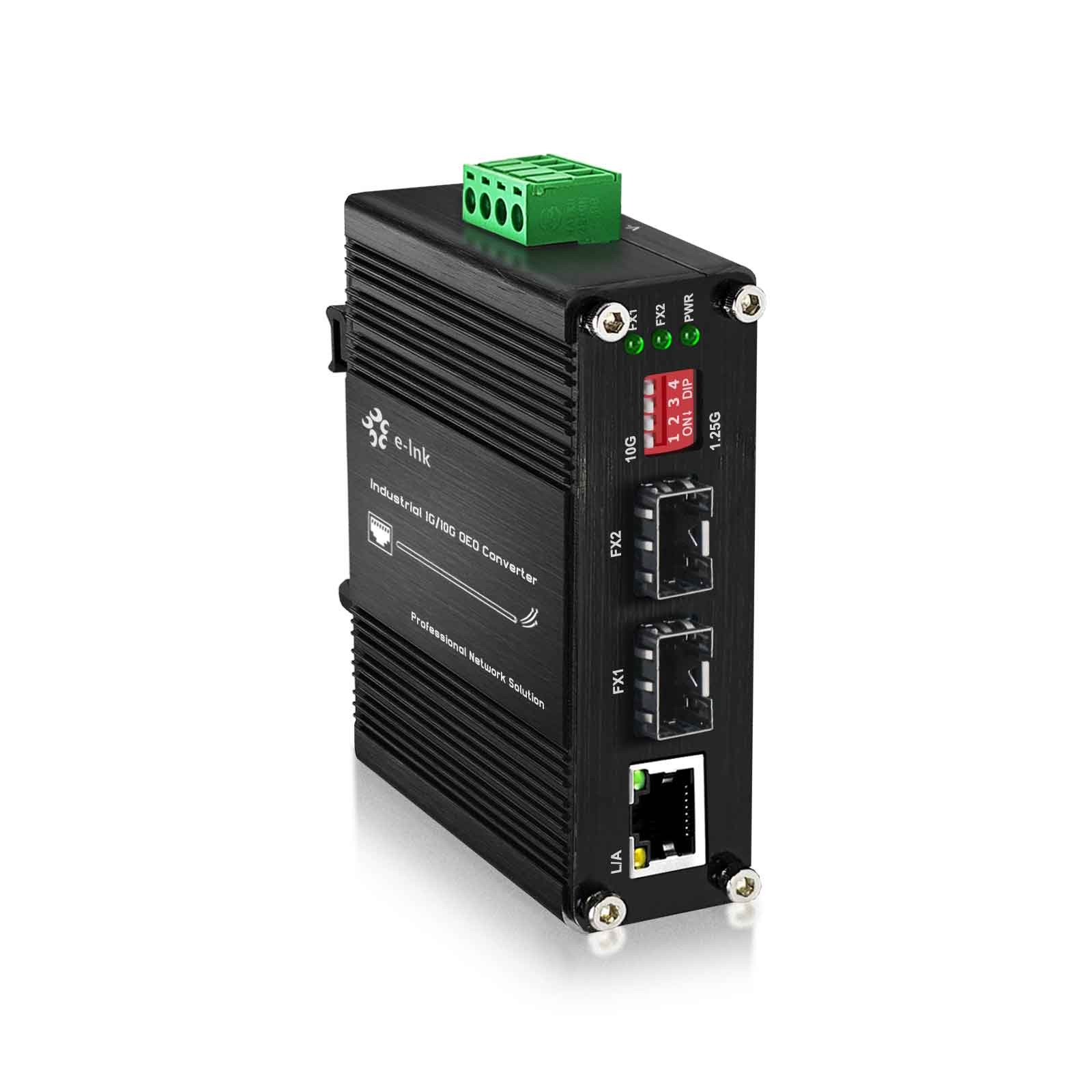

Industrial 1G/10G OEO 3R Repeater Media Converter 120km 2 x Open SFP+ IP40E-lnk Industrial 10G OEO Converter 12~48VDC Input

LNK-IMC2402-OEO series Industrial 10G OEO Converter is a connection betweenfiber to fiber10Gbpsequipment function as fiber media converter, or as fiber repeater for long distance transmission in harsh environment at operating temperature-40~ 80℃.

Intelligent Network Management

Housed inIP40-ratedaluminum casing withDIN-rail/wall-mountcompatibility, this hardened device operates across-40°C to 80°Ctemperature range.

Application

• Factory Automation Networks– Connects PLCs, motor drives and robotic arms to fiber optic backbones with real-time control and EMI immunity in automotive manufacturing plants.
• Intelligent Transportation Systems– Enables traffic signal control, electronic toll collection and vehicle detection through roadside fiber optic communication networks.
• Outdoor Security Deployment– Transmits high-resolution surveillance video from PTZ cameras over long-distance fiber links in extreme weather conditions.
• Rail Transit Systems– Supports passenger information displays, onboard diagnostics and station security through DIN-rail installation in metro applications.
• Building Automation Networks– Integrates access control, HVAC monitoring and security systems via fiber connectivity in smart building applications.
• Industrial IoT Networks– Connects sensors, controllers and monitoring devices to fiber backbone for data acquisition and process control in smart factories.

Overview

The LNK-IMC2402-OEO Series represents a cutting-edge solution in industrial fiber optic connectivity, delivering robust 10GbpsOEO (Optical-Electrical-Optical)conversion for demanding network environments. This advanced industrial OEO Converter functions as both a high-speed fiber media converter and long-distance fiber repeater, operating reliably across an extensive temperature range from-40°C to 80°Cin harsh industrial settings. Designed for network backbone applications including Storage Area Networks (SAN), Local Area Networks (LAN), and Metropolitan Area Networks (MAN), this versatile device supports multiple protocols including SDH/SONET STM-64/OC-192, 10G Fiber Channel, and 10G Ethernet standards.

Engineered for superior performance in critical infrastructure applications, this industrial OEO Converter finds ideal deployment inresearch and development laboratories, data centers, and telecommunications equipment rooms. The OEO Converter features comprehensive optical wavelength conversion capabilities supporting1310nm, 1550nm,CWDM, andDWDMconfigurations with integrated Loop-back functionality for enhanced network diagnostics and maintenance. This advanced feature set ensures seamless integration into existing fiber optic infrastructure while providing flexibility for network expansion and optimization.

For hybrid network environments, the OEO Converter efficiently bridges fiber to copper connectivity, functioning as a reliable 1Gbps Ethernet media converter for extended distance transmissionup to 120km. This dual functionality makes it an invaluable solution for network modernization projects, allowing gradual migration from copper-based infrastructure to high-speed fiber optic networks without requiring complete system overhaul. The hardened industrial design guarantees uninterrupted operation in challenging conditions, providing network engineers with a robust, future-proof solution for high-bandwidth applications across telecommunications, industrial automation, and data center interconnects, ensuring optimal performance where conventional networking equipment would fail.

Why Choose Us

• Ultra-Low Latency Transmission– Advanced 3R signal regeneration ensures minimal delay with complete signal integrity preservation
• Certified Quality Standards– ISO9001 & FCC certified with 100% aging testing guarantees 99.99% operational reliability
• Multi-Rate Fiber Flexibility– DIP switch enables seamless 1.25G/10G rate switching with DWDM/CWDM wavelength support
• Intelligent Network Diagnostics– Integrated DDM and loopback functions provide real-time monitoring and troubleshooting capability
• Industrial Environment Ready– IP40 metal housing with -40°C to 80°C operating range ensures performance in extreme conditions

Technical Indexes

Performance Data

Technical Indexes

Equipment function

3R Repeater

Transmission Speed

10G: 8.5Gb/s-11.7Gb/s

Protocols

8.5G Fiber Channel

SONET OC-192, SDH STM-64 (9.95Gbps)

10G WAN (10Gbps)

10G LAN (10.31Gbps)

OTN OTU-2 (G.709) (10.70Gbps)

10G LAN with 255/237 FEC coding (11.09Gbps)

10G Fiber Channel (11.32Gbps)

10G POS

Interface Type

SFP+to SFP+

Transmission Distance

SFP+ module: up to 80km

Maximum Packet

Forwarding Rate

14,880,950/S

Operating Temperature

-40°C to 80°C (-40°F to 176°F)

Storage Temperature

-40°C to 85°C (-40°F to 185°F)

Relative Humidity

5% to 95% non-condensing

MTBF

> 200,000 hrs

Ethernet Media Converter Specifications

Standards

IEEE 802.3 10BASE-T

IEEE 802.3u 100BASE-TX

IEEE 802.3ab 1000BASE-T

IEEE 802.3z, 1000BASE-SX/LX

IEEE 802.3x Full-duplex flow control

Work Mode

10/100/1000BASE-T to 1000BASE-SX/LX

Port Type

SFP to RJ45

Network Cables

Twisted-pair
10BASE-T: 2-pair UTP Cat. 3,4,5, up to 100m
100BASE-TX: 2-pair UTP Cat. 5, up to 100m
1000BASE-T: 4-pair STP Cat 5 up to 100m

Fiber-optic Cable
1000BASE-SX:
50/125μm or 62.5/125μm multi-mode fiber cable, up to 220/550m/2km.
1000BASE-LX:
9/125μm single-mode cable, providing long distance for 10/20/40/80/120km (vary on SFP module)

Electrical and Mechanical

Input Power

12~48VDC,Redundant Power (6-pin Terminal Block)

Power Consumption

8W Max

Protection

Power Input Overload

Automatic Resettable

Reverse Polarity

Present

DIP Switch

4-digit DIP switch function

DIP

Function

Settings

SW 1

1.25G/10G

ON – 1.25~8.5G

OFF – 10.3G or 14.025G

SW 2

Reserved

ON – Reserved

OFF –Reserved

SW 3

Reserved

ON – Reserved

OFF –Reserved

SW 4

Reserved

ON – Reserved

OFF –Reserved

LED Indicators:

PWR

Power Status

FX1

SFP Port-1

FX2

SFP Port-2

L/A

TP LINK/ACT

Dimensions (WxDxH)

95 x 70 x 30 mm

Weight

0.25Kg

Casing

AluminumCase

Mounting Options:

DIN-Rail mount

Regulatory Approvals

ISO9001, CE, RoHS, FCC

EN55022:2010+AC: 2011, Class A

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3: 2013

EN55024:2010

IEC 61000-4-2: 2008 (ESD)

IEC 61000-4-3: 2010 (RS)

IEC 61000-4-4: 2012 (EFT)

IEC 61000-4-5: 2014 (Surge)

IEC 61000-4-6: 2013 (CS)

IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model

Description

ETH-IMC2402-OEO

Industrial 1G/10G SFP+ to SFP+ OEO Converter (3R Repeater) with 1GEthernet Media Converter Function

SFP Options

► SFP option. Please select your SFP on our SFP Options Page

► SFP module is to be purchased separately.

Mounting Options

► Default DIN-Rail Bracket installed

Power Options

► DIN-Rail Power Supply. Open Wire for Terminal Block.
