Industrial 24-Port Gigabit Managed PoE Switch -Hardened RJ45 10/100/1000 MbpsFeatures

Simplify network configuration with intuitive DIP switch for one-key VLAN setup

Extend PoE deployment range up to 250 meters for long-distance device connectivity

Enable modern management convenience through USB-C interface configuration

Maximize data transmission efficiency with 10K jumbo frame support

Reduce operational power consumption via IEEE 802.3az EEE technology

Ensure reliable power delivery compliant with IEEE 802.3af/at standards

Maintain stable network operation across extreme temperatures from -40°C to 80°C

Facilitate secure industrial installation using standard DIN-rail mounting

Provide robust protection with industrial-grade IP40 aluminum housing

Support rapid network recovery through one-key ring protection protocol

Overview

16RJ45 PoE Swtich

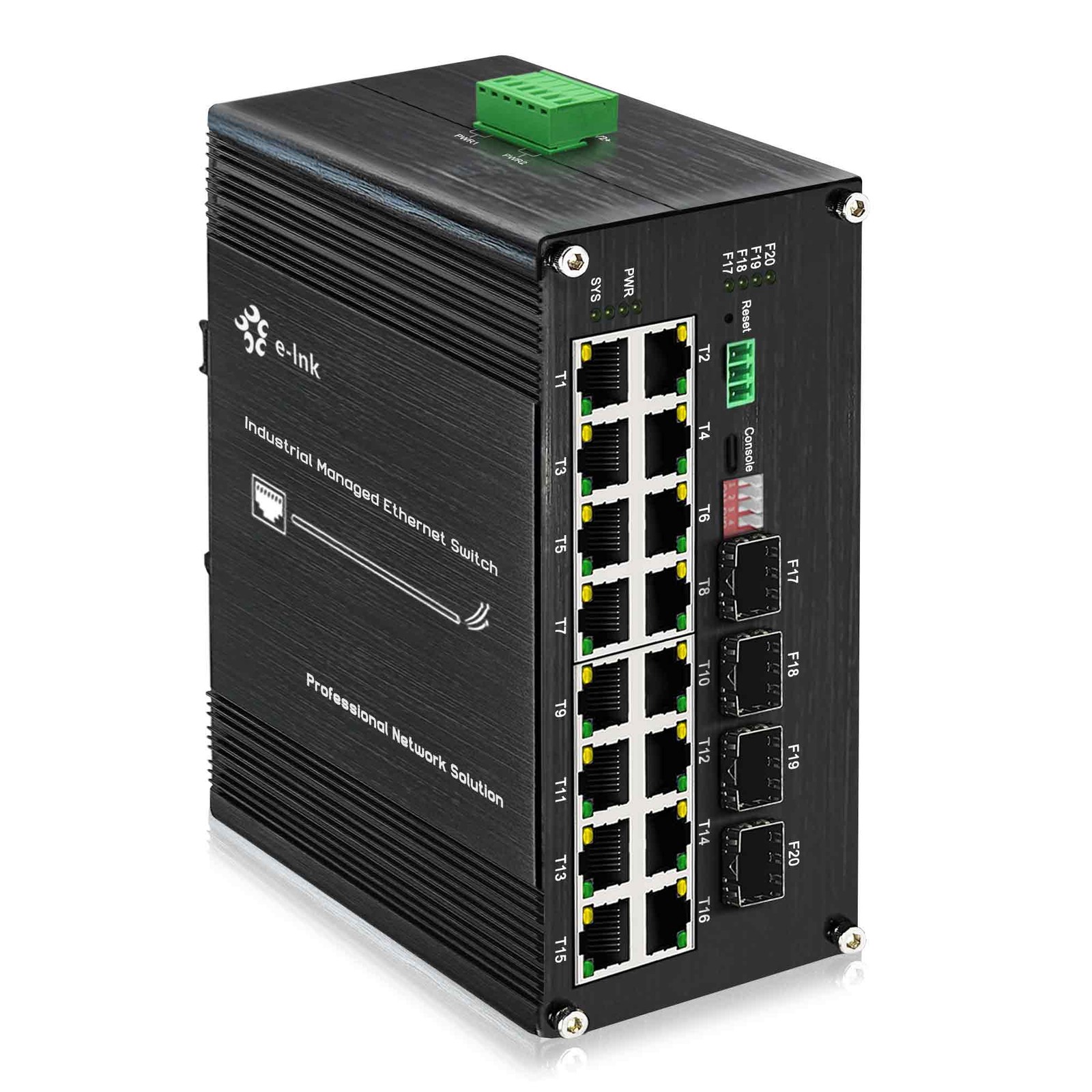

The LNK-DIMC2416MP Series represents a high-performance L2+ managed industrial PoE+ switch designed for robust network deployment in demanding environments. This hardened networking switch combines 16× Gigabit Ethernet ports with full IEEE 802.3at PoE+ compliance and 4× 1000Base-X SFP fiber optic interfaces, creating a versatile connectivity solution for both power and data transmission requirements.

Engineered for industrial applications, this managed Ethernet 16RJ45 PoE switch features advanced network management capabilities including VLAN, QoS, and port configuration options, enabling precise traffic control across distributed network architectures. The auto-sensing RJ45 ports automatically negotiate speed and duplex mode while the SFP slots accommodate both single-mode and multi-mode fiber transceivers, providing flexible uplink options for long-distance network extension.

Built to withstand challenging operating conditions, this industrial-grade 16RJ45 PoE switch maintains reliable performance in wide temperature ranges and features enhanced protection against vibration, shock, and electromagnetic interference. Ideal for smart city infrastructure, industrial automation systems, and large-scale security deployments, it serves as a comprehensive networking solution that seamlessly integrates IP cameras, wireless access points, and other network devices across remote locations while ensuring uninterrupted power delivery and data transmission.

E-lnk Industrial L2 Managed 16RJ45 PoE Switch

The Managed 16RJ45 PoE Ethernet Switch’s advanced management features, including one-key VLAN and ring protection protocols, ensure network reliability and simplified maintenance in mission-critical applications where uninterrupted operation is essential.

Energy Efficient Operation

The 16RJ45 PoE Switch compliant with IEEE 802.3az EEE, reducing power consumption during low activity and ensuring reliable power delivery compliant with IEEE 802.3af/at standards.

One-Touch Network Optimization

The Managed Network DIP switches provide one-touch control for critical network functions – instantly configure VLAN segmentation, enable ring protection protocols, and manage PoE system reset without software complexity.

Application

• Large-Scale Security Surveillance Systems:Supports high-density IP camera deployments with 16-port PoE+ capacity and fiber uplinks.

• Industrial Automation Networks:Provides reliable backbone connectivity for factory automation systems.

• Enterprise Wireless Infrastructure:Powers high-density wireless access points while utilizing fiber uplinks for backbone connectivity across campus environments and multi-story buildings.

• Intelligent Transportation Systems (ITS):Enables comprehensive traffic management with extended 250m PoE capability.

• Smart City Infrastructure:Supports interconnected urban systems through managed VLAN capabilities and fiber optic backbone networks.

Why Choose Us

• Advanced PoE/PoE+ Support– Compliant with IEEE 802.3af/at standards for efficient device power delivery.

• Modern Management Interface– USB-C console port eliminates need for legacy serial connections.

• Enhanced Data Throughput– 10K jumbo frame support ensures efficient large data transfers.

• Rugged Industrial Design– IP40-rated aluminum housing with reliable DIN-rail mounting.

• Wide Temperature Operation– Stable performance across -40°C to 80°C extreme conditions.

Technical Indexes

Ethernet

Standards:

IEEE802.3 10BASE-T

IEEE802.3u 100BASE-TX/FX

IEEE802.3ab 1000BASE-T

IEEE802.3z 1000BASE-X

IEEE802.3pQoS

IEEE802.1d Spanning Tree

Forward & FilteringRate:

14,880pps (10Mbps)

148,800pps (100Mbps)

1,488,000pps (1000Mbps)

Packet Buffer Memory:

12M bits

Processing Type:

Store-and-Forward

Backplane bandwidth

110Gbps

Max Packet Length:

10K Bytes Jumbo Frame

Address Table Size:

8KMAC Addresses

Interface

Connector:

16 x RJ45

RS485:

1x RS485 (Optional)

Optical Port:

4x 1000Base-XSFP

USB-C:

1x USB-C (for Management)

RS485 Serial Interface (Optional)

Physical interface

Industrial standard 3-pin screw terminal

Data type

1Ch RS485 Bi-Direction

RS-485 signals

Data+, Data-, GND

Serial port line distance (copper)

1000 meters

Baud rate

0 ~ 800kbps

PoE (Power over Ethernet)

Standard:

IEEE 802.3at Power over Ethernet Plus

IEEE 802.3af Power over Ethernet

Port:

RJ45

Power Pin Assignment

4/5(+), 7/8(-)

PoE Budget:

Up to 480-watt PoE budget

Environmental

Operating Temperature:

-40°C to 80°C (-40°F to 176°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF

> 200,000 hrs

Electrical and Mechanical

Input Power:

48~57VDC,Redundant Power (6-pin Terminal Block)

Power Consumption:

8W Max.(PoE in Use<480W)

Protection:

Power Input Overload:

Automatic Resettable

Reverse Polarity:

Present

DIP Switch

4-digit DIP switch function

DIP

Function

Settings

SW 1

VLAN

ON – Enabled

OFF – Disabled

SW 2

Ring Management

ON – Enabled

OFF – Disabled

SW 3 (to be upgraded)

250m PoE Network

ON – Enabled

OFF – Disabled

SW 4 (to be upgraded)

PoE Reset

ON – Enabled

OFF – Disabled

LED Indicators:

PWR:

Power Status

Ethernet (Per Port):

Link/Activity

PoE:

PoE Status

Fiber:

Gigabit SFP Port: F17~F20

Dimensions (WxDxH):

155x 115x 85mm

Weight:

1.2Kg

Casing:

AluminumCase

Mounting Options:

DIN-Rail mount

Software Features

Redundancy Protocols

Support STP/RSTP/MSTP/ERPSv2, Link Aggregation

Multicast Support

Support IGMP Snooping V1/V2/V3，support GMRP, GVMP,802.1Q

VLAN

Support IEEE 802.1Q 4K VLAN，support QINQ, Double VLAN,

Time Management

SNTP

QOS

Flow-based redirection

Flow-based rate limiting
Flow-based packet filtering
8*Output queues of each port 802.1p/DSCP priority mapping
Diff-Serv QoS, Priority Mark/Remark
Queue Scheduling Algorithm (SP, WRR, SP+WRR)

ACL

Port-based Issuing ACL

ACL based on port and VLAN
L2 to L4 packet filtering, matching first 80 bytes message.
Provide ACL based on MAC, Destination MAC address, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, and VLAN, etc

PoE Management

Total power limit of PoE power supply

PoE output power allocation
PoE output priority configuration
PoE working status
Scheduling of PoE operation

Diagnostic Maintenance

Support port mirroring, Syslog, Ping

Management Function

Support CLI, WEB, SNMPv1/v2/v3, Telnet server for management, EEE, LLDP, DHCP Server/Client (IPv4/IPv6), Cloud/MQTT

Alarm Management

Support 1 way relay alarm output, RMON, TRAP

Security

Broadcast Storm Protection, HTTPS/SSLv3, AAA & RADIUS, SSH2.0

Support DHCP Snooping, Option 82，802.1X security access,
Support user hierarchical management, ACL access control list,
Support DDOS，port-based MAC filtering / binding, MAC black holes, IP source protection, Port isolation, ARP message speed limit

Advance Layer 2+ Features

IPv4/IPv6 Management

Static Route

Regulatory Approvals

ISO9001, CE, RoHS, FCC

EN55022:2010+AC: 2011, Class A

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3: 2013

EN55024:2010

IEC 61000-4-2: 2008 (ESD)

IEC 61000-4-3: 2010 (RS)

IEC 61000-4-4: 2012 (EFT)

IEC 61000-4-5: 2014 (Surge)

IEC 61000-4-6: 2013 (CS)

IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model

Description

ETH-DIMC2416MP

Industrial L2+ 16-Port 10/100/1000T 802.3at PoE + 4-Port 1000X SFP Managed Ethernet Switch

SFP Options

► SFP option. Please select your SFP on our SFP Options Page

► SFP module is to be purchased separately.

Mounting Options

► Default DIN-Rail Bracket installed

Power Options

► DIN-Rail Power Supply. Open Wire for Terminal Block.
