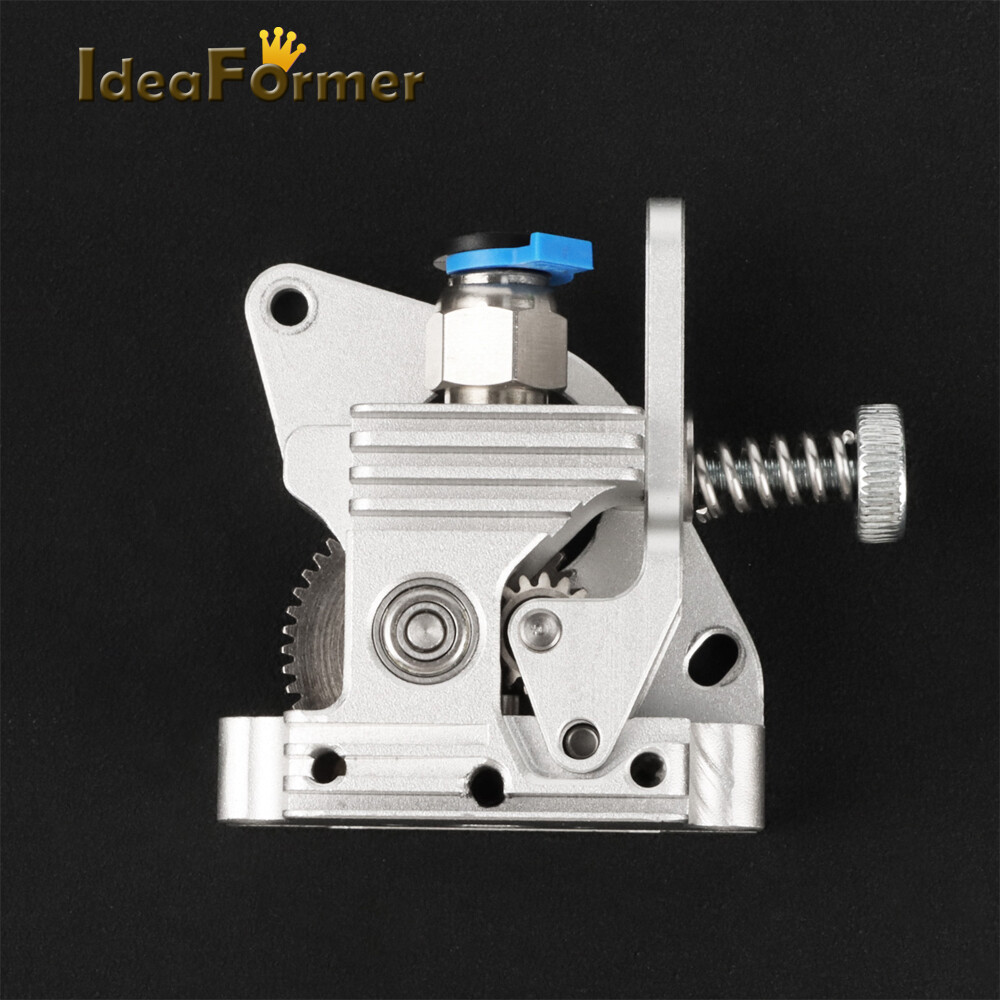

Product Description
Product material:
aluminum alloy body
Product advantages:
1. Single extruder weight: 70g plus motor weight: 170g
2. Smaller and more compact
3. The drive gear is closer to the exit
4. Stainless steel consumable outlet guide, adjustable gap with drive gear, can realize TPU printing
5. All metal structure
6. Reserved mounting holes can be installed on other printers
7. Hardened steel BMG gear
8. Dual gear extrusion
9. The body of the extruder has heat sinks to reduce weight and enhance heat dissipation
10. The throat heating block can be installed, the extrusion gear is closer to the heating block, and the output is smoother
Product use parameters:
- Number of steps:690 steps/mm
- Pressure advance:0.02~0.05
- Withdrawal length:0.8~2mm
- Withdrawal speed:40-120mm/s
- Motor current:0.8-1A
- Acceleration:10000 mm/s2
- Normal motor operating temperature:within 80°C
- Suitable filament:1.75mm
Differences between products and peers:
This product can be used alone as an extruder, or it can be used as a print head after adding a heating block throat Lighter than most extruders1:4.8 transmission ratio, providing greater torque.
Package about:
A: 1*BDE Extruder
B: 1*Motor+1*Wire
C: 1*Extruder+1*Motor+1*Wire
BDE Extruder
BDE Motor+Wire
BDE Extruder+Motor+Wire
