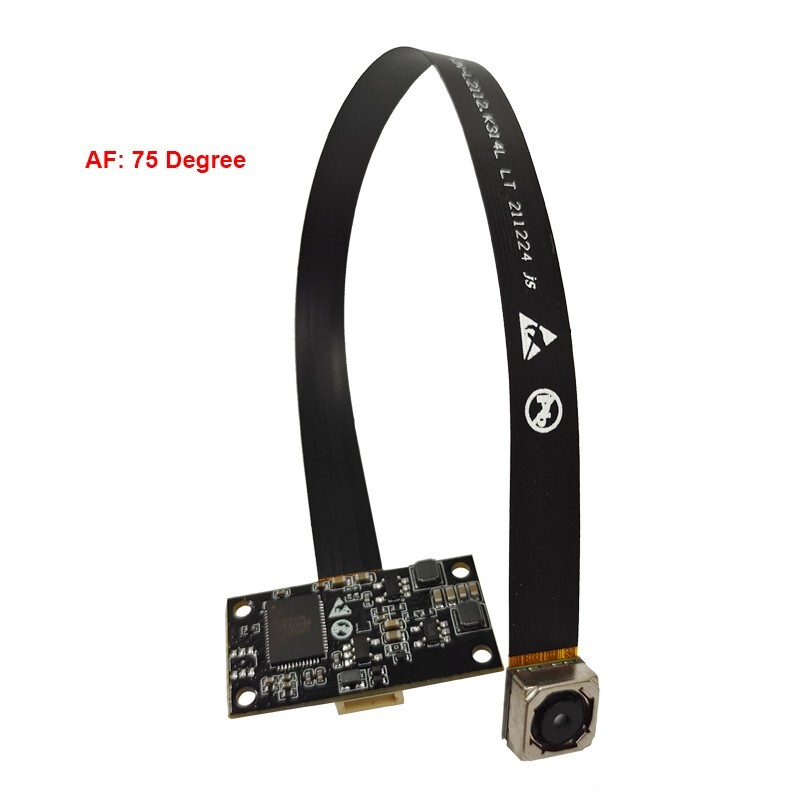

IMX258 12MP USB Camera Module Face Recognition 4K AF Autofocus 15fps FPC Cable
Customizable Len Angle: Select from 75° or 135° Len Angles to tailor the camera's field of view to your specific needs. - Wide Compatibility: Works seamlessly with various operating systems, including Windows, Mac, and Android, for versatile use.
- Imx258 Camera Module|Imx258 Usb Camera|High Resolution 12MP Sensor: Equipped with a 12MP IMX258 sensor, capture clear, detailed images with a resolution of 3840H*3104V or 4K.
- Auto Focus Convenience: Enjoy hassle-free focusing with the Auto Focus feature, perfect for dynamic environments.
- High Frame Rate 30fps: Achieve smooth, fluid video with a 30fps frame rate, ideal for fast-paced subjects or action shots.
1/3.06“ cmos
Voltage:
5V
Video Format:
MJPG,YUY2
Focus Type:
Auto Focus
Biggest Frame Rate:
30fps
Pixel size:
1.12μm*1.12μm
Biggest Resolution:
3840H*3104V, 3840H*2160V 4K
Interface/Cable:
USB2.0/5PIN 1.0mm
Module Size:
158.44*30mm
Len Angle:
75°/135°
Shutter Type:
Rolling shutter
characteristic:
USB2.0, MJPG/YUY2
Drive Type:
Free Drive
Stable temperature:
0° ~ 50°
Working temperature:
-20° ~ 70°
Voltage:
USB~DC5V
Current:
610mA
Lens:
we can configure as you need
Output format/frame rate:
Resolution MJPG(fps) YUY2(fps)
3840*3104 15 1
3840*2160 30 1
3264*2448 30 1
Compatible with:
WinXP/Win7/Win8/Win10/Windows Vista
Mac osx/Linux/Mac OSX/Android
Application:
Face recognition, biopsies, industrial equipment, photographic documents, object recognition, medical equipment, teaching equipment
Package Includes:
1pc 12MP Module+1pc 1Meter USB Cable
