IBM PCjr Power Supply 1503681 Ault 394-5616 16.7VAC 56VA Model 4860 Tested
Price: US $69.99
Original IBM external power supply for the IBM PCjr (Model 4860). This is the factory brick that came with the PCjr, not a modern replacement.
LABEL DETAILS
IBM part number 1503681
Made by Ault Inc., model 394-5616, Rev C, date code 8401
Input: 120 VAC, 60 Hz, 0.70 A
Output: 16.7 VAC, 56 VA
Label reads: "Intended for use with IBM Model No. 4860 only"
UL and CSA listed
TESTED
Plugged in and measured with a multimeter: 18.97 VAC between the two outer pins of the 3-pin output plug. That's an open-circuit (no load) reading, so a bit above the 16.7 V rating is normal for a transformer.
Center pin of the output plug is continuous to mains ground.
Not tested under load or with a PCjr (I don't have one to try it on).
WHAT'S INCLUDED

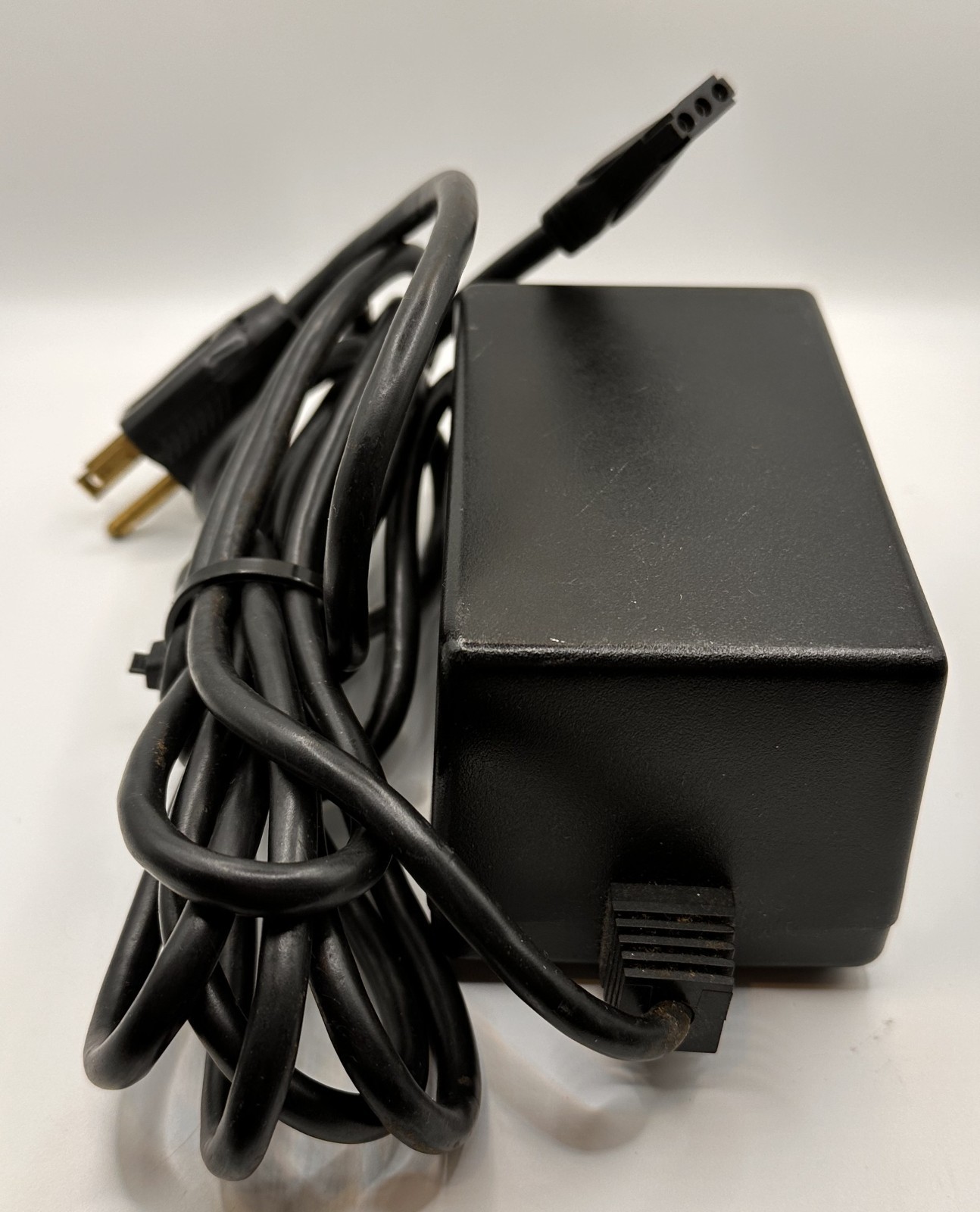

The power supply with its attached AC cord and attached 3-pin output cable, as shown
Nothing else
CONDITION
Used, with normal surface wear for its age. One of the four rubber feet is missing; the screw in that corner is visible in the photos. Please see the photos.
