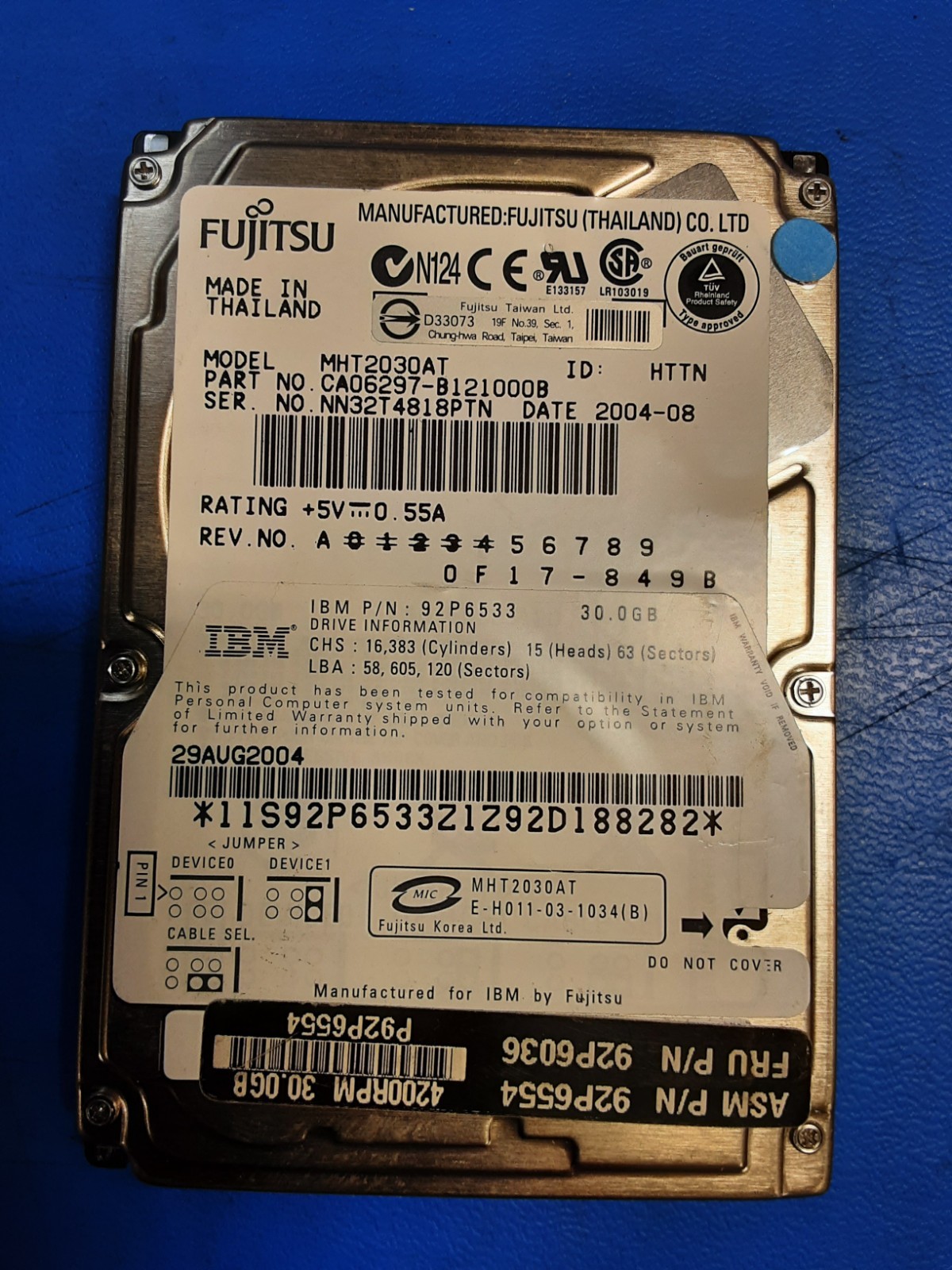

IBM 92P6533 92P6036 92P6554 FUJITSU MHT2030AT CA06297-B121000B 30GB 2.5" IDE HDD
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
IBM 92P6533 92P6036 92P6554 FUJITSU MHT2030AT CA06297-B121000B 30GB 2.5" IDE HDD
Price: US $178.95
IBM 30GB 2.5" IDE HDD Fujitsu MHT2030AT 92P6533 92P6036 92P6554 CA06297-B121000B

Item: IBM / Fujitsu 30.0GB 2.5" IDE Hard DriveModel: MHT2030ATIBM P/Ns: 92P6533 / 92P6036 / 92P6554Fujitsu P/N: CA06297‑B121000BCapacity: 30GBInterface: IDE / ATA‑100Form Factor: 2.5"RPM: 4200Manufacturer: Fujitsu (for IBM)

Ideal for:

  • Vintage IBM ThinkPad systems

  • Legacy laptops requiring 2.5" IDE drives

  • Retro computing builds

  • Data recovery or replacement parts

IBM / Fujitsu 30GB 2.5" IDE HDD — Full Technical Specification Sheet

Models / Part Numbers Covered:

  • Drive Model: Fujitsu MHT2030AT

  • IBM ASM P/N: 92P6533

  • IBM FRU P/N: 92P6036

  • IBM P/N: 92P6554

  • Fujitsu P/N: 30.0 GB

1. General (for IBM)SeriesMHT2xxxAT Mobile HDDModelMHT2030ATCapacity30.0 GBForm Factor2.5-inchInterfaceIDE / ATA‑100 (EIDE, PATA)Sector Size512 bytesBuffer / Cache2 MBRotational Speed4200 RPMAverage Seek Time~12 msAverage Latency7.14 msData Transfer Rate (Internal)Up to 100 MB/s (ATA‑100)Data Transfer Rate (External)~33–66 MB/s typical depending on host2. Electrical Requirement+5V DCPower Consumption (Read/Write)~2.0 WPower Consumption (Idle)~0.85 WStartup Current~1.0 A (5V)Rated Current0.55 A3. Physical SpecificationsFeatureSpecificationForm Factor2.5" Laptop DriveDimensions (W × D × H)70 mm × 100 mm × 9.5 mmWeight~99 gConnector Type44‑pin IDE (PATA)Mounting PointsStandard 2.5" laptop pattern4. Environmental Temperature5°C to 55°CNon‑Operating Temperature–40°C to 65°COperating Shock225 G (2 ms)Non‑Operating Shock900 G (1 ms)Acoustics (Idle)~2.1 belsAcoustics (Seek)~2.5 bels5. hoursLoad/Unload Cycles300,000Error Rate (Non‑recoverable)1 per 10¹⁴ bits readSMART SupportYes6. IBM‑Specific InformationIBM FieldValueASM P/N92P6533FRU P/N92P6036IBM P/N92P6554Manufactured ForIBM by Fujitsu Korea Ltd.Common UseThinkPad T‑series, R‑series, A‑series (early 2000s)7. Jumper Settings (from label)ModeJumper PositionDevice 0 (Master)Default (no jumper)Device 1 (Slave)Jumper pins 3–4Cable Select (CS)Jumper pins 1–28. Compliance & Class B

  • RoHS (varies by batch; early units pre‑RoHS)

    • 9. Typical Applications

    • IBM ThinkPad replacement drive

    • Legacy laptop restoration

    • Industrial equipment requiring IDE drives

    • Retro gaming systems

    • Data recovery / archival hardware
