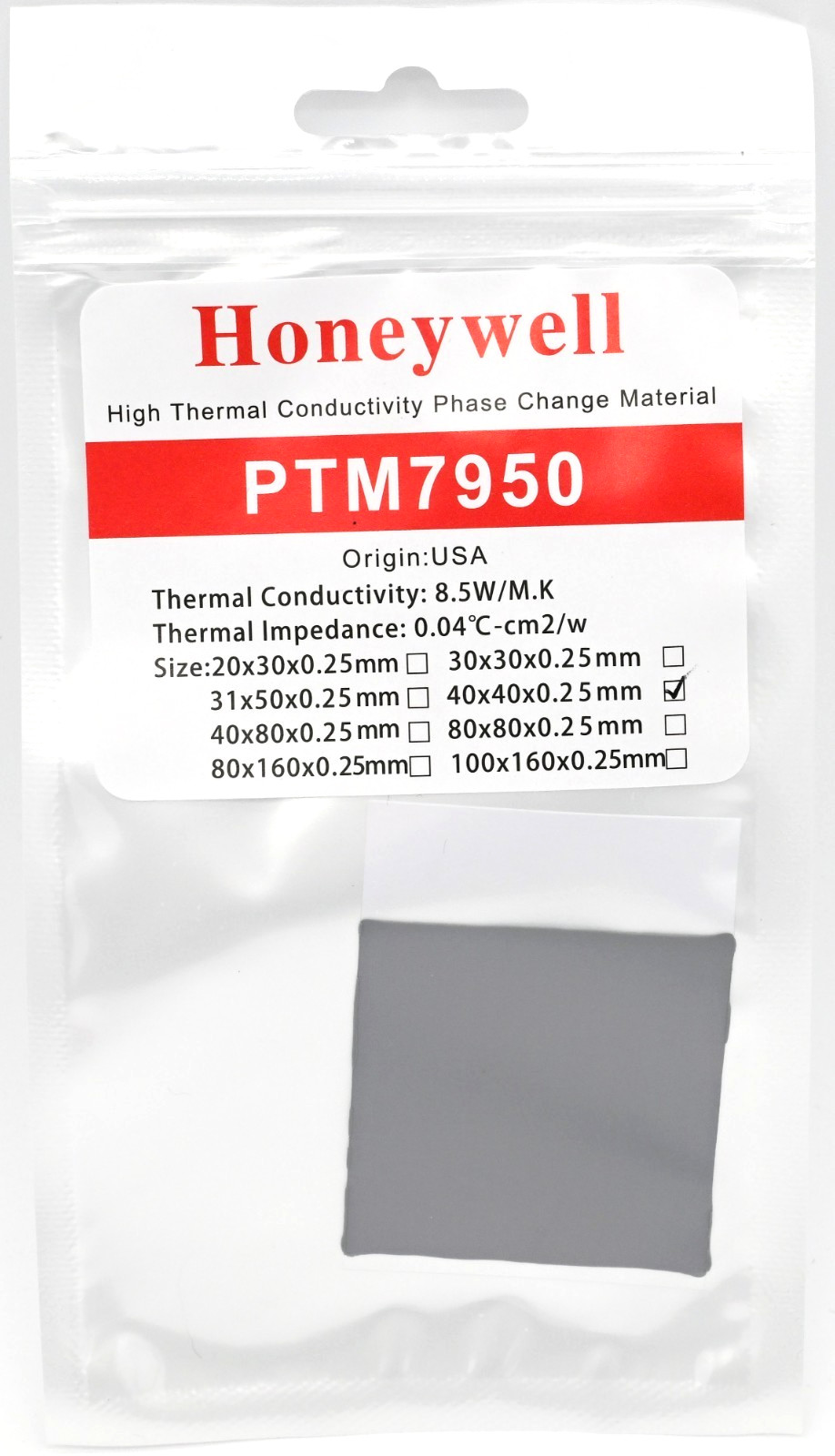

Honeywell PTM7950 Phase Change Thermal Pad 40x40x0.25mm - High-Performance Thermal Interface Material

*Recommend putting in freezer for at least 1 hour before handling to make application significantly easier.

Shipping & Handling Note:

Due to the increased 0.25mm thickness of this specific pad, minor compression may occur during transit within the protective film. This can sometimes cause a very slight amount of material to extend beyond the primary edges. This is a normal characteristic of high-performance phase change material; the pad remains true to its intended thickness and performance specifications once applied.

Description:

The Honeywell PTM7950 is a cutting-edge Phase Change Material (PCM) designed for optimal thermal conductivity and long-lasting performance. Ideal for high-performance integrated circuits and electronic devices, the PTM7950 offers superior reliability and exceptional thermal management, making it a top choice for enthusiasts and professionals alike.

Key Features:

• Thermal Conductivity: 8.5 W/m·K ensures efficient heat transfer for demanding applications.
• Long-Lasting Durability: Engineered to maintain performance over extended periods with no need for frequent replacement.
  • Reliability Tests: Successfully passes rigorous standards, including 1000 hours at 150˚C baking and 1000 thermal cycles.
• Phase Change Technology: Activates at 45˚C, providing optimal wetting and ultra-low surface contact resistance during operation.
• Low Thermal Impedance: 0.04˚C·cm²/W ensures minimal resistance between components and cooling systems.

Specifications:

Material Dimensions 40x40x0.25mm

• Generous 40x40mm size is perfect for most GPUs and larger workstation dies.
• Thicker 0.25mm profile is ideal for systems with slightly uneven mounting pressure or larger gaps.

Phase Change Temp 45˚C Thermal Conductivity 8.5 W/m·K Application High-performance CPUs, GPUs, and integrated circuits (Laptops, Desktops, Gaming Consoles).

What’s Included:

• 1x Honeywell PTM7950 Thermal Pad (40x40x0.25mm)
