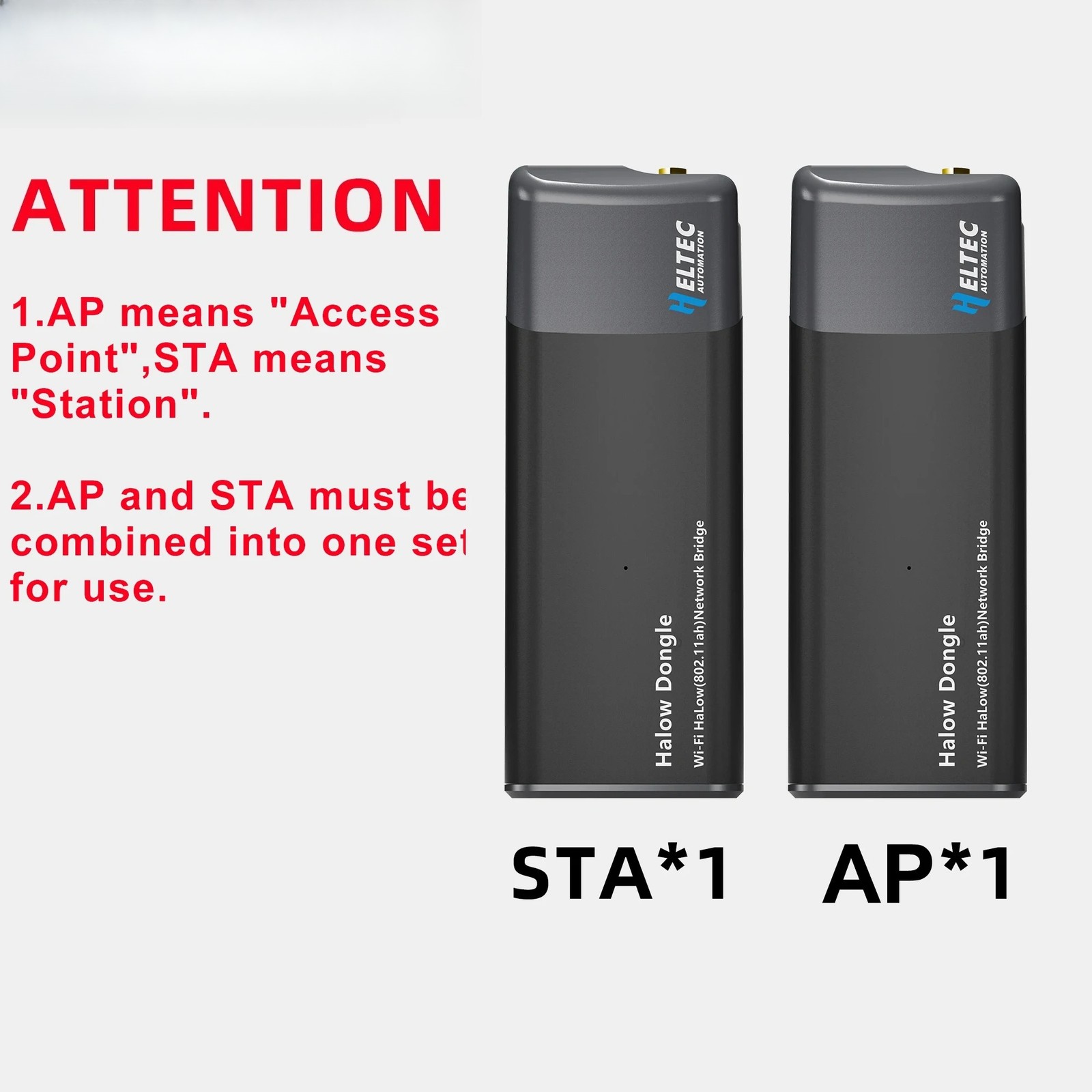

Heltec WiFi HaLow 802.11ah Long Range Ethernet Bridge Plug Play Network Booster

Price: CN $201.39

Wi-Fi HaLow Dongle cooperate with HT-H7608 HaLow Router to achieve star networking.(7608 gateway as AP device)

WiFi Halow Dongle

Summary

Halow-Dongle is a plug-and-play network bridge designed to significantly extend the transmission range of traditional networks, offering lower power consumption and improved penetration capabilities.

You can think of it as a type of ultra-long-range Wi-Fi, and maintaining high transmission speeds even at extended distances.

Main Features

Factory matching, plug and play.
You can connect your device to the Dongle through three methods: USB Type C, Ethernet, and 2.4GHz Wi Fi.
Long transmission range.
It can be seamlessly connected to traditional networks.
Large capacity allows access to a large number of devices simultaneously.
High transmission rate, 32.5Mbps@8MHz.
Support Sub-1 GHz frequency bands, frequency range: 902~928 MHz.
It offers four bandwidth modes 1/2/4/8MHz.
Lightweight and easy to deploy.
Rich in features and strong in extensibility.

Specifications

Parameters

Description

MCU

MT7628

Wi-Fi HaLow Module

HT-HC01

Wi-Fi

IEEE 802.11b/g/n

Wi-Fi HaLow

IEEE 802.11ah
Frequency: 902-928MHz
Max. TX power: 21±1 dBm
Bandwidth: 1/2/4/8 MHz
Max Data Rate: 32.5 Mbps @ 8 MHz

ANT Interface

SMA female socket

Ethernet

RJ45(10/100M),USB-C

Operating Condition

Temperature: -20 ~ +70℃ Humidity: 10%～90%( no-condensing)

Power

USB-C, 5V

Consumption

300mA(Typical)

Ingress Protection

Without waterproof treatment

Shell material

Aluminum Alloy, Plastic

Weight

53.5g (Antenna included),40g(Antenna excluded)

Dimensions

87.5②*32.5*20m3(Antennaexcluded)

HT-HD01 is a Wi-Fi HaLow based network bridge that extends the transmission range of traditional Wi-Fi and Ethernet networks, offering better penetration. It is designed to improve connectivity in various environments, particularly for applications where long-range, low-power communication is essential.

Here are some potential use cases for the HT-HD01:

Packing list

The default packing list without selecting any accessories is as follows:

Item

Quantity

Wi-Fi HaLow Dongle STA

Atenna

USB-C cable

Reset button trigger pin

Paper user guide

Ethernet jumper

Wi-Fi HaLow Router

Summary

Wi-Fi HaLow Router is an innovative WiFi HaLow gateway from Heltec Automation designed to meet the needs of long-distance/high-speed data transmission for IoT applications. The gateway uses WiFi HaLow(IEEE 802.11ah) technology that operates in the sub-1 GHz unlicensed band, which has stronger penetration and larger coverage compared with the traditional WiFi standard. It is equipped with powerful hardware including advanced RF capabilities, high-performance MCU, and flexible interfaces for seamless integration with existing networks. It can be easily configured and OTA upgraded through web UI, and supports the simultaneous connection of a large number of devices, which making it a great solution for intelligent manufacturing, smart city, etc.

Main Features

Wi-Fi and Ethernet supported, WiFi HaLow and 2.4GHz dual-band design.
Flexible networking methods, including AP, STA, Mesh, etc.
Easy setup and OTA upgrade via the Web UI.
-20°C to 70°C maximum operating temperature range.
Light and stylish wall-mounted, simple to install.
Long-range transmission capability, the range can reach 1km and further within the visual distance.
Supports access to a large number of devices, more than 4 times that of traditional Wi-Fi accesspoints.
High transmission speed, it maintains 150Kbps at the limit distance and 32Mbps at close distances.
