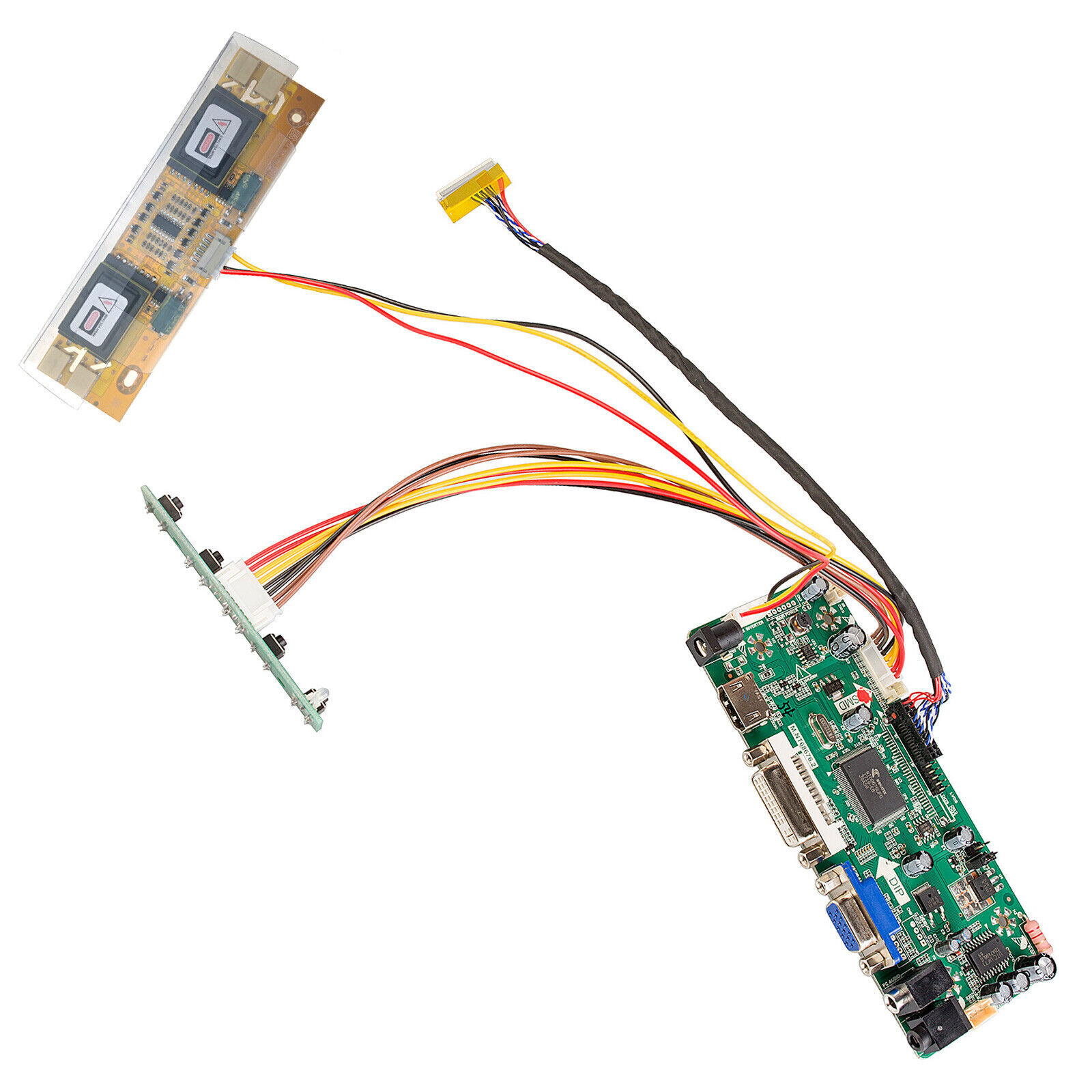

This M.NT68676 LCD controller kit is used to turn LCD panel into Raspberry Pi and A1U gaming monitor. It provides HDMI/ VGA/ DVI video input port.Compatible 17" (1280 x 1024):

• LM170E03
• LTM170EU, LTM170EH, LTM170E5, LTM170E6
• M170EG01, M170EG02, M170EN01, M170EN04, HSD170ME13
• M170EN05, M170EN06

Compatible 19" (1280 x 1024):

• G190EG01
• HSD190ME11, HSD190ME12, HSD190ME13
• LTM190EX, LTM190E1, LTM190E2, LTM190E3
• LM190E02, LM190E03, LM190E08,
• LM190E05-SL03
• M190E5,M190EG02, M190EG03, M190EN01

Important Note:

• Video cable and Power adapter are NOT included
• Supplier may update LCD controller board or cables sometimes, so they may not same as the picture
• If you have doubts in operation, please CONTACT US

Packing List (bulk pack):

• 1 x LCD controller kit

Features:

• M.NT68676 is a monitor control board which can support LCD panels
• Specific driver is pre-installed
• Synchronize with computer automatically. Synchronization requires the synchronous signal which horizontal and vertical sync are separated
• Support dynamic contrast control, headphone input and digital volume control simultaneously
• Size of controller: 139mm x 58mm x 17mm

How to Use:

1. Take away the old inverter and old LVDS cable from LCD panel
2. Connect the new inverter and LVDS cable to your LCD panel
3. Connect driver board with PC by VGA/ DVI/ HDMI cable
4. Set the voltage jumper, please don\\'t connect the lvds cable wrongly, wrong setting and connection will get your LCD burnt
5. Test GND, and red/ black wires by multi-meter
6. Input power of 12V 3A
