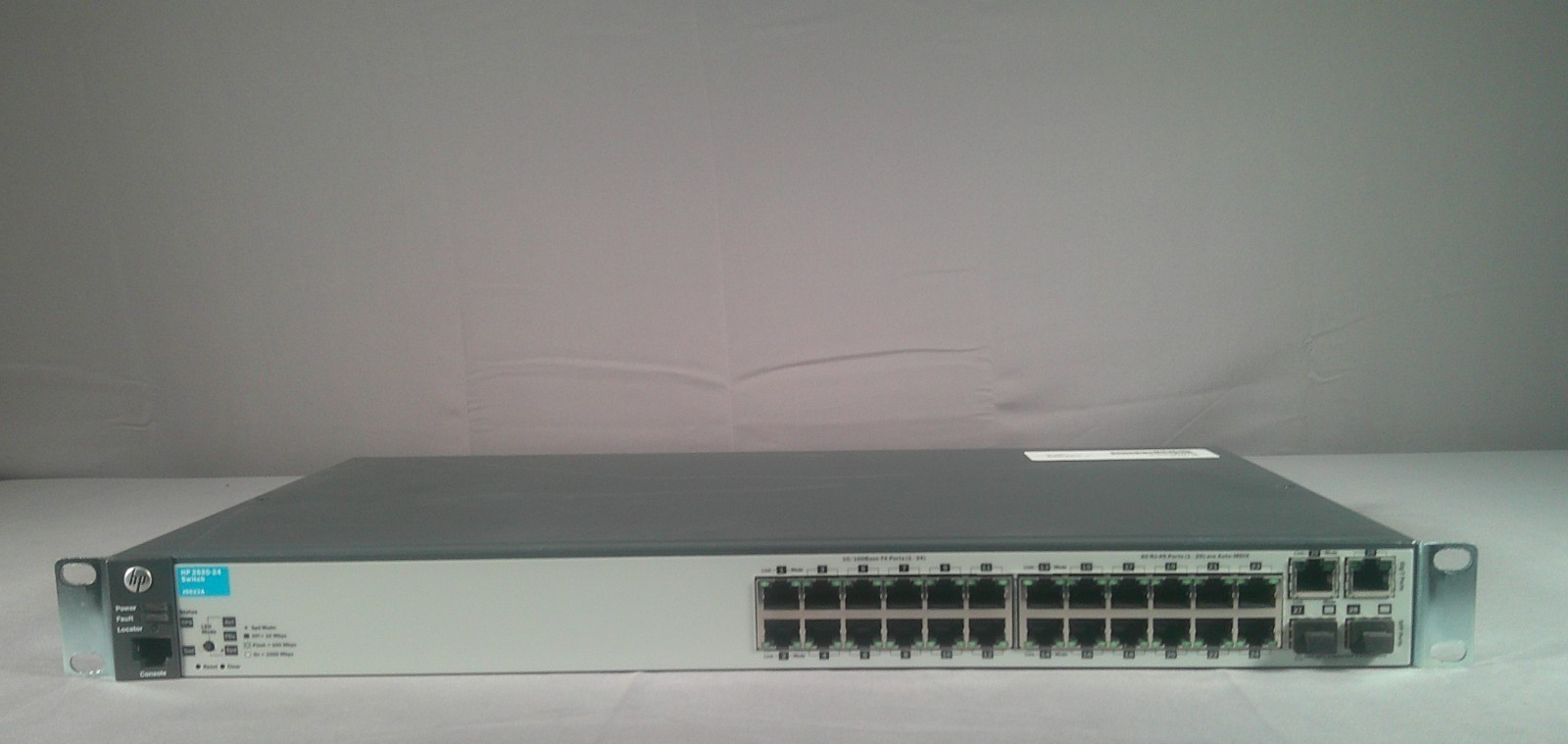

Device Type: Managed Ethernet network switch part of the HP/Aruba 2620 Series.

Ports:
24 10/100 Mbps Fast Ethernet RJ-45 ports
2 10/100/1000 Mbps RJ-45 Gigabit uplink ports
2 open mini-GBIC (SFP) slots for fiber uplinks

Switching Capacity: 12.8 Gbps backplane capacity

Throughput: Up to 9.5 million packets per second (Mpps)

MAC Address Table: ~16,000 entries

Layer Support: Layer 2 switching with optional basic Layer 3 features (static routing, RIP)

Management: Web GUI, SNMP (v1/v2c/v3), RMON, CLI, Telnet, HTTPS, TFTP comprehensive remote management and monitoring.

VLANs: 802.1Q VLAN support with ACLs and QoS traffic prioritization

Advanced Features:
IPv6 support and IPv4 static/RIP routing
IGMP snooping, port mirroring, jumbo frames, LLDP
sFlow, STP/MSTP, DHCP/ARP protection, broadcast throttling

Management Protocols: SNMP, RMON, HTTP/HTTPS, CLI, Telnet, TFTP, SMON

Form Factor: 1U rack-mountable or desktop with rack ears included

Dimensions: ~17.4 10 1.7 (WDH)

Weight: ~5.7 lb (2.6 kg)

Environment: Fanless design for quiet operation; wide operating temperature range in typical deployments

Use Case: Professional managed switch VLAN segmentation, QoS, enterprise security, and uplinks for larger network backbones.
