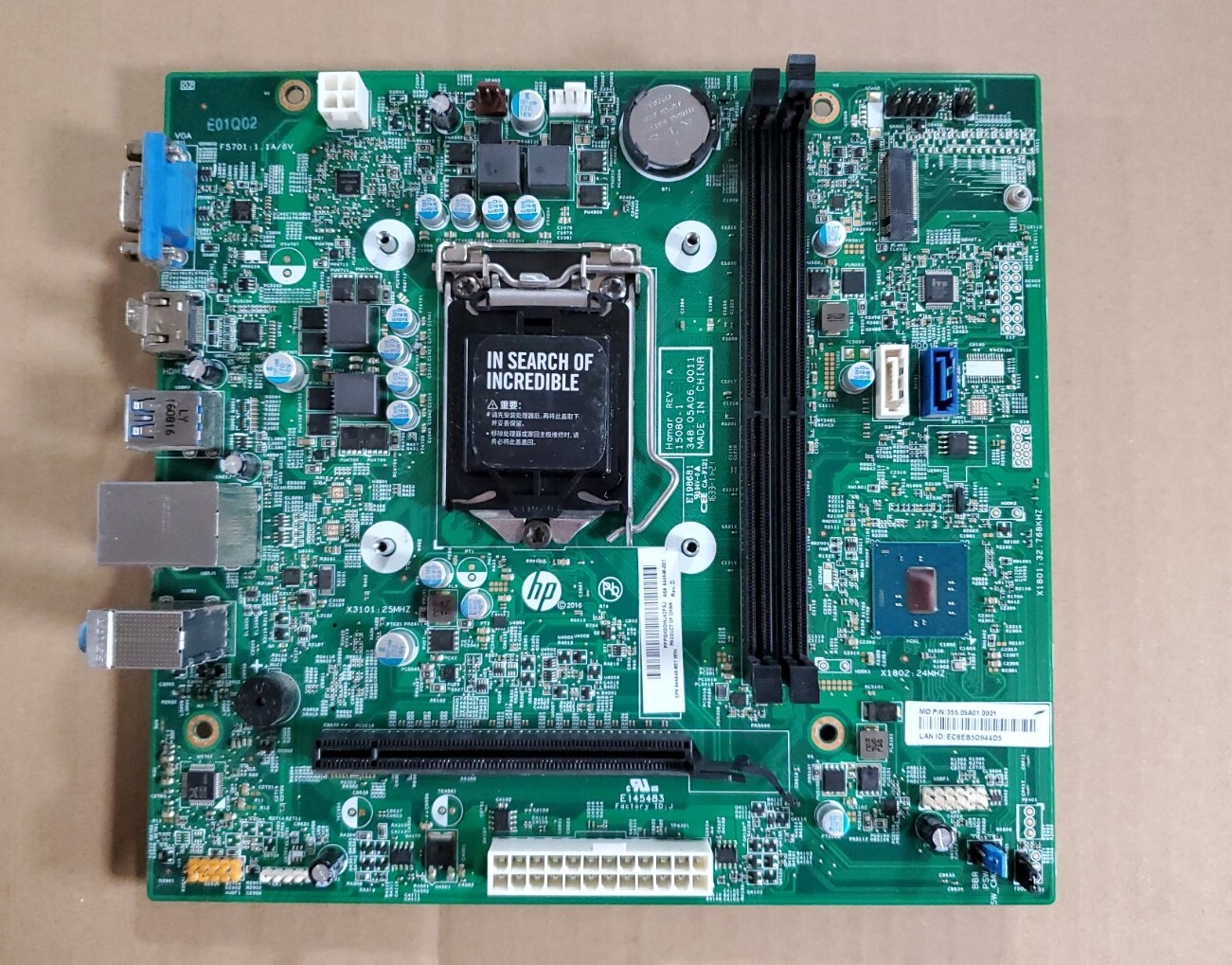

HP 260-P 460-P 510-P uATX Hamar Motherboard 844848-001 844848-601 15080-1
Price: US $77.99
HP and Compaq Desktop PCs - motherboard specifications, HamarFigure: The Hamar motherboardMotherboard description
HP/Compaq name: Hamar
SSID: 81B4
Form Factor
uATX
Dimensions: 20.5x22.0 cm (8.1x8.7 in)
Chipset
H170
Processor upgrade information
TDP: 35 W
Socket type: LGA 1151
Motherboard supports the following processor upgrades:ProcessorTDPIntegrated GraphicsIntel Core i7-6700T (Skylake) 2.8 GHz Quad Core35 WIntel HD Graphics (GT2)Intel Core i5-6400T (Skylake) 2.2 GHz Quad Core35 WIntel HD Graphics (GT2)Intel Core i3-6100T (Skylake) 3.2 GHz Dual Core35 WIntel HD Graphics 530Intel Pentium G4400T (Skylake) 2.9 GHz35 WIntel HD Graphics 510Intel Celeron G3900T (Skylake) 2.6 GHz35 WIntel HD Graphics 510
Memory upgrade information
Dual channel memory architecture
Two DDR4 UDIMM (288-pin) sockets
Supports up to PC4-17000 (DRR4-2133)
Supports 2 GB, 4 GB, and 8 GB UDIMMs
Supports up to 4 GB on 32-bit systemsNOTE:32-bit systems cannot address a full 4.0 GB of memory.
Supports up to 16 GB (unbuffered) on 64-bit computersNOTE:Maximum memory shown reflects the capability of the hardware and can be limited further in the operating system.
VideoIntegrated graphicsIntegrated Intel HD GraphicsNOTE:Integrated graphics does not work if a graphics card is installed.AudioIntegrated audio
Audio Codec: ALC3863-CG
Audio jack presence detectionNOTE:An internal speaker is not included with integrated audio. External speakers or headphones are required to hear sound.NOTE:Integrated sound is not available if a graphics card is installed.
NetworkLAN: 1000BASE-T
Technology: Realtek RTL8161
Data transfer speeds: up to 10/100/1000 Mb/s
Transmission standards: 1000BASE-T Ethernet
Expansion Slots
One PCI-E (GEN 3) x16 socket
One M.2 socket 1, key A
I/O Ports and JumpersBack I/O portsNOTE:The configuration might differ depending on your model (for example, if a dedicated graphics card is included). Any modifications or upgrades might change the configuration, port accessibility, and port functionality.JumpersFigure: Clear CMOS and clear password jumper location
PSW bridged (closed) = Default state (password enabled)
PSW unbridged (open) = Password cleared on startup
SW_CMOS unbridged (open) = Default state
SW_CMOS bridged (closed) = CMOS reset to default settings during next restart
