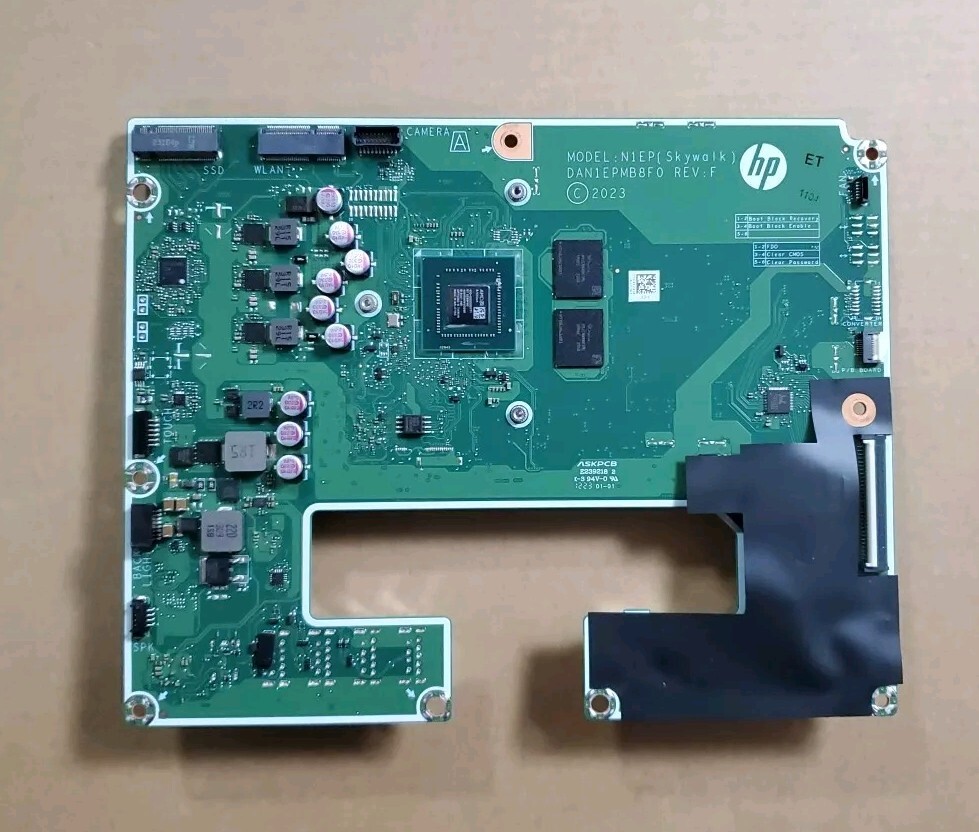

HP 24-CR Skywalk Motherboard Ryzen 5 7520U 16GB N39855-007 N39855-005 N39855-004
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
HP 24-CR Skywalk Motherboard Ryzen 5 7520U 16GB N39855-007 N39855-005 N39855-004
Price: US $149.99
Compatible models:N39855-008 MB Skywalk Mendocino Sliver 8GBN39855-004 MOTHERBOARD Skywalk Mendocino R3 8GBN39855-005 MOTHERBOARD Skywalk Mendocino R5 8GBN39855-601 MB Skywalk Mendocino Sliver 4GB WINN39855-007 MOTHERBOARD Skywalk Mendocino R5 16GBN39855-009 MOTHERBOARD Skywalk Mendocino Gold 8GBN39855-002 MOTHERBOARD Skywalk Mendocino Gold 4GBN39855-604 MOTHERBOARD Skywalk Mendocino R3 8GB WINDOWSN39855-605 MOTHERBOARD Skywalk Mendocino R5 8GB WINDOWSN39855-607 MOTHERBOARD Skywalk Mendocino R5 16GB WINDOWSN39855-609 MOTHERBOARD Skywalk Mendocino Gold 8GB WINDOWSN39855-602 MOTHERBOARD Skywalk Mendocino Gold 4GB WINDOWSN39855-608 MOTHERBOARD Skywalk Mendocino Sliver 8GB WINDOWSHP AiO PCs - Skywalk motherboard specifications

Find the detailed Skywalk motherboard specifications.

Skywalk specifications

Review physical dimensions, processor model, memory information, connectivity types, video and audio specifications, expansion slots, and I/O ports of the Skywalk motherboard.

Motherboard description

  • HP name: Skywalk

  • SSID: 8B4E

Form Factor and dimensions

  • Customized

  • Dimensions:19.8 x 15.6 cm(7.79 x 6.14 in)

Chipset

  • N/A

Processor upgrade information

  • TDP: Up to 15 W

  • Socket type: BGA

  • Skywalk motherboard supports the following processor upgrades:

AMD Athlon™Gold 7220U (up to 3.7 GHz maximum boost clock, 4 MB L3 cache, 2 cores, 4 threads)

15 W

AMD Athlon™Silver 7120U (up to 3.5 GHz maximum boost clock, 2 MB L3 cache, 2 cores, 2 threads)

15 W

AMD Ryzen™3 7320U (up to 4.1 GHz maximum boost clock, 4 MB L3 cache, 4 cores, 8 threads)

15 W

AMD Ryzen™5 7520U (up to 4.3 GHz maximum boost clock, 4 MB L3 cache, 4 cores, 8 threads)

15 W

Memory upgrade information

  • Dual Channel Memory architecture

  • Onboard system memory

  • Supports up to PC5-44000 (LPDDR5-5500)

  • Supports up to 16 GB

Integrated graphics

  • AMD Radeon™Graphics (integrated in processor)

Audio

  • Audio Codec: Realtek ALC3247

  • Audio jack presence detection

Ethernet LAN: 1000BASE-T

  • Technology: Realtek RTL8111GSH

  • Data transfer speeds: up to 10/100/1000 Mb/s

  • Transmission standards: 1000BASE-T Ethernet

Expansion slots

  • (1) M.2 socket 1, key A, type 2230 for WLAN

  • (1) M.2 socket 3, key M, type 2280 for SSD (PCIe x4 Gen 4 .0)

Rear I/O ports

  • (1) HDMI v1.4 output port

  • (1) RJ-45 Ethernet port

  • (1) Headphone/microphone combo port

  • (1) USB 3.2 Gen 1.0 Type-C® port (5 Gbps signaling rate)

  • (2) USB 3.2 Gen 1.0 Type-A port (5 Gbps signaling rate)

  • (2) USB 2.0 Type-A ports
